How do I install the 39-310 Jalousie glass locks?

A contractor from Kailua, Hawaii says:
Do you have a schmetic showing how your clips are installed because looking at your design and the windows I am working on, I don't see how it works. Thanks
Profile picture of Tom
Tom from SWISCO responded:
Thank you for posting in our discussion board! Before we start, can I please ask to what product you are referring? Is it our 39-213 Jalousie Clip? Or perhaps our 39-310 Jalousie Window Security Clip? Please let us know at your earliest convenience!
A quick learner from Kailua, Hawaii says:
the security clip 39-310.
Profile picture of Tom
Tom from SWISCO responded:

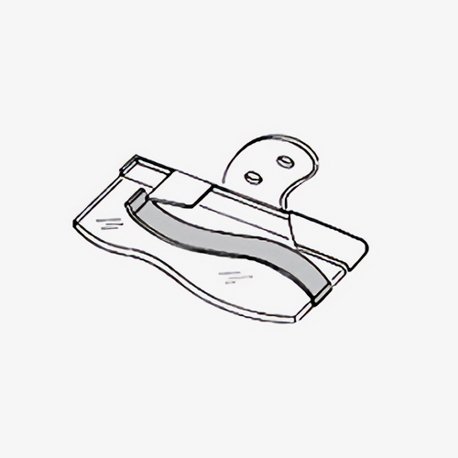

Thank you for the clarification. Please refer to the following diagram, which shoes how the 39-310 clip is attached to a window.
