Left window lock, installed by Thermal Gard

Home Owner from Cleveland, Ohio 44144
May 23, 2022 1:38 pm

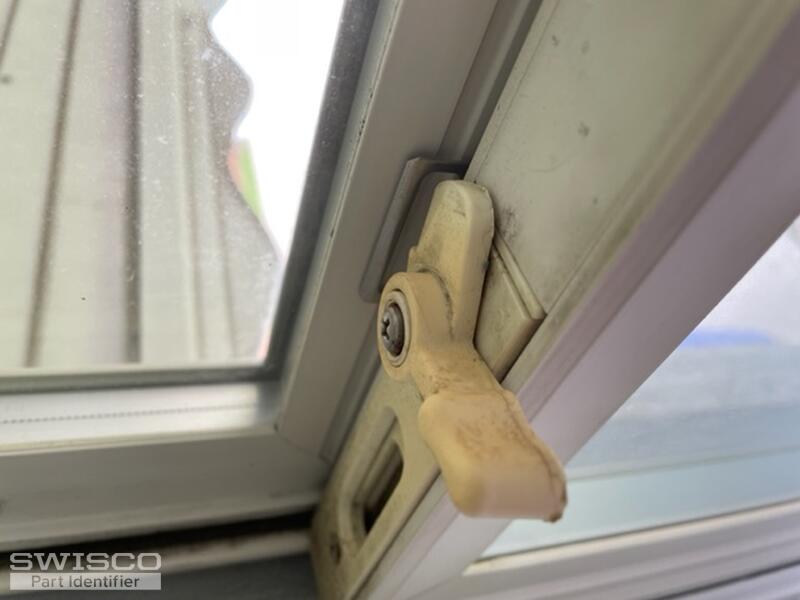

Window lock has broken plastic tab (image 3).
IMG_0002 IMG_0003
2 user uploaded images
2 Replies
+ Add a Comment
Home Owner from Cleveland, Ohio 44144
May 24, 2022 4:46 pm

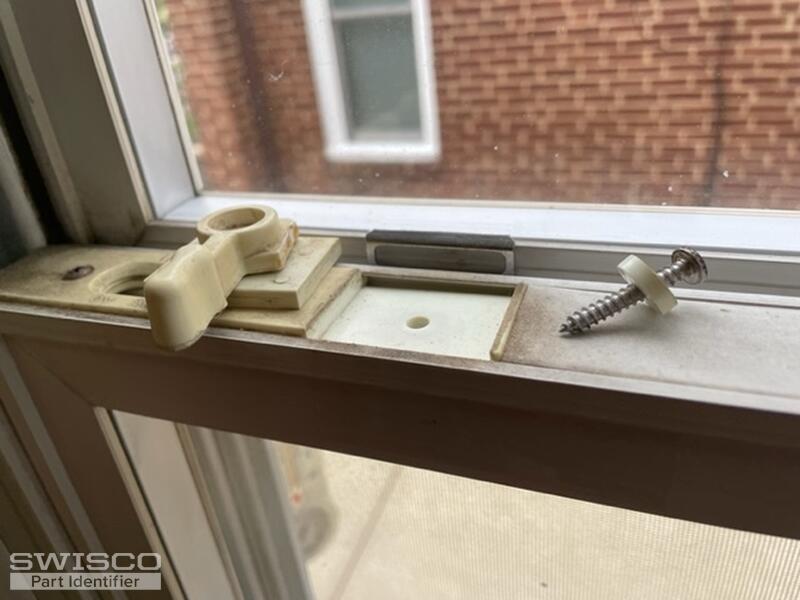

The rectangle part (bottom section) that was removed from the sash measures 1 1/2" L X 1 1/4" W X 3/16" D. The screw hole is in the exact center of the rectangle. The upper part that turns ( not including the handle) is 3/16" high X 1 3/8" long from the left side to the tip of the locking tab. The length of locking tab from the center of the screw hole is 7/8".
Emily
Emily from SWISCO
May 25, 2022 3:44 pm
SWISCO
EXPERT

Hello!

Your hardware looks like a match for our 90-133L and 90-133R locks but look these parts over and see what you think. Note, the tilt latches themselves are no longer available. I apologize for any inconvenience.

+ Add a Comment
Products and resources found in this discussion
Thermal Gard Lock, LH
Thermal Gard Lock, LH
90-133L
$10.85
Thermal Gard Lock, RH
Thermal Gard Lock, RH
90-133R
$10.85
