Paul from SWISCO responded:
July 13, 2017

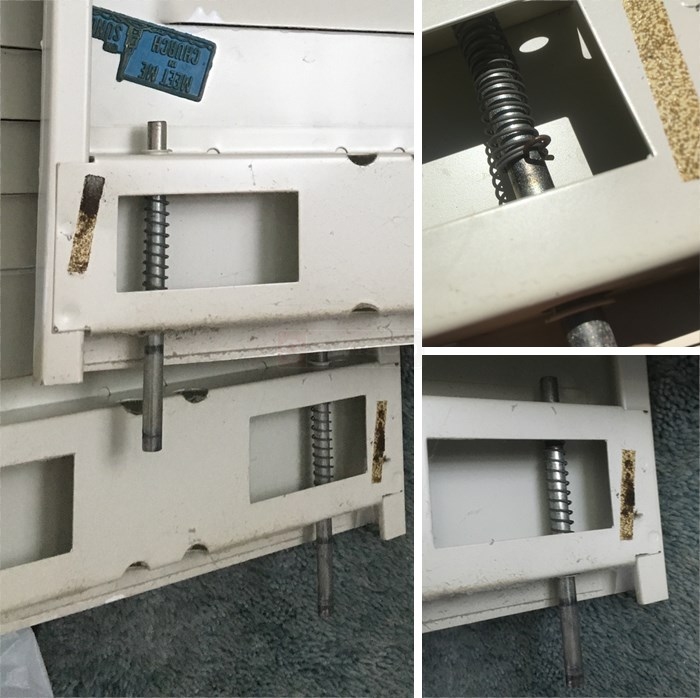

Your top pivot pin looks fine, itself. Since the door hangs up when you open and close it, there could be two possible explanations. The first is that the bottom threaded pin, which resembles our 21-048, needs to be adjusted. This would raise the door to keep it from dragging. The second possibility is that the the bottom guide pin, which resembles our 21-058, needs to be replaced, or the nylon guide (21-108) is just missing. Let me know your thoughts.
|
