Looking for Jalousie Window Center Operator - Sill Mounted

Home Owner from USA

Jul 17, 2017 9:07 am

Hello,

I'm looking for seven (7) jalousie window center operators - Sill mounted.

Original Mfg: Unknown

Please see attachment for details.

Is this something Swisco can provide?

Thanks for your efforts,

-- Jamie

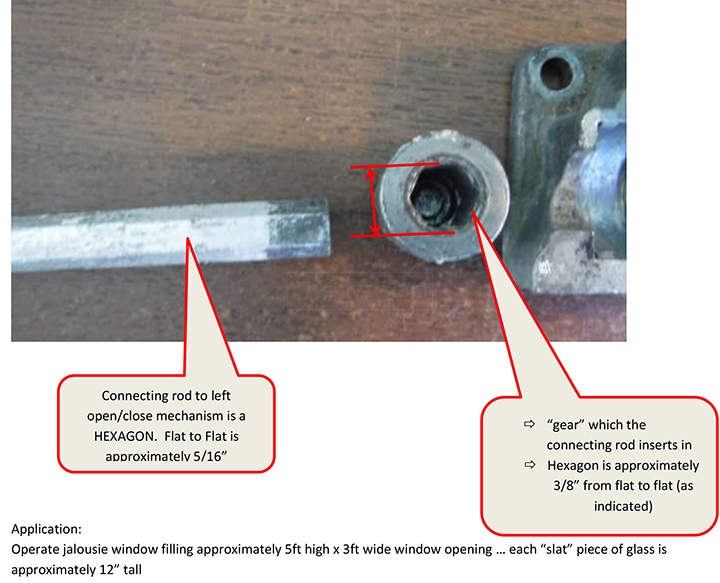

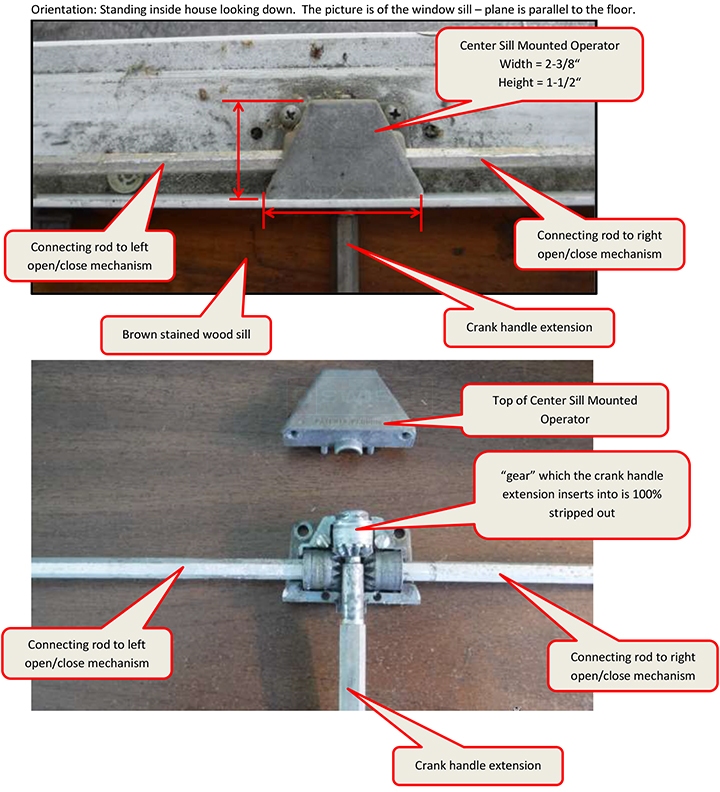

User submitted photos of a window operator.

6 Replies

Dave Sr. from SWISCO

Jul 20, 2017 1:28 pm

Hi Jamie: The only part available for this older awning window is the 39-076 center gear operator. I believe it was originally made by Stanley. No other parts are available.

Home Owner from Massachusetts

May 9, 2018 10:30 am

Thank you for this post, Jamie. I was google image searching for a replacement part and came across this wonderfully annotated schematic. I just ordered two of them. I have been looking for replacements for ages. I was starting to wonder if my windows were custom made in the 60s. Do you have pictures of what the windows look like?

Home Owner from Cold Spring, NY

May 10, 2018 10:11 am

This is a long shot--but curious if either person on this thread has any information about the handles for these types of operators.

We are having the opposite problem-- we moved into a new (old) home, and all the operators work, but we can't find the handles anywhere, so we can't open the windows.

Are there any markings on your handles that might be helpful in my google searches for a replacement?

Quick Learner from 33455

Jan 29, 2025 11:43 am

how do I releace the rods to put a new opener.

Paul from SWISCO

Feb 3, 2025 11:23 am

You should be able to just pull the rods and gear shaft out of the operator, I believe they are just force fitted into the center mechanism. If it feels stuck, try using a type of spray lubricant like WD-40 to loosen them up.
