Casey from SWISCO responded:
February 15, 2023

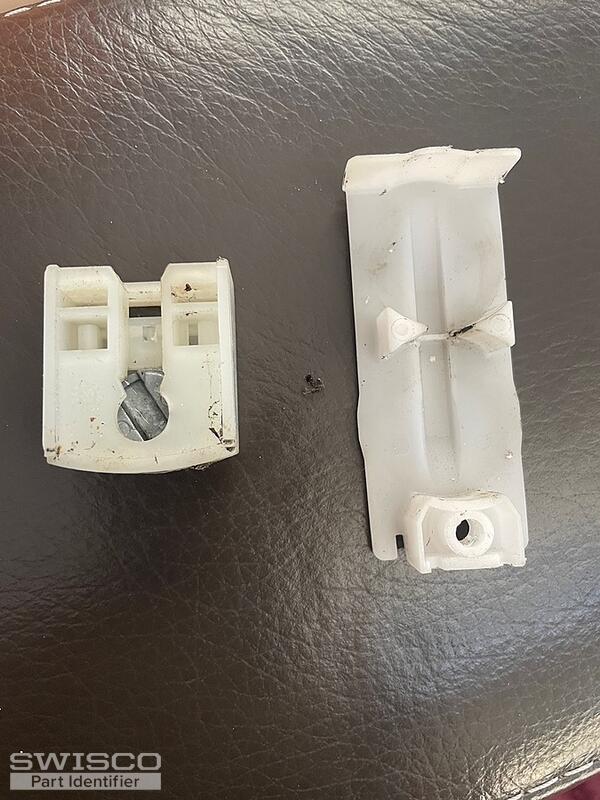

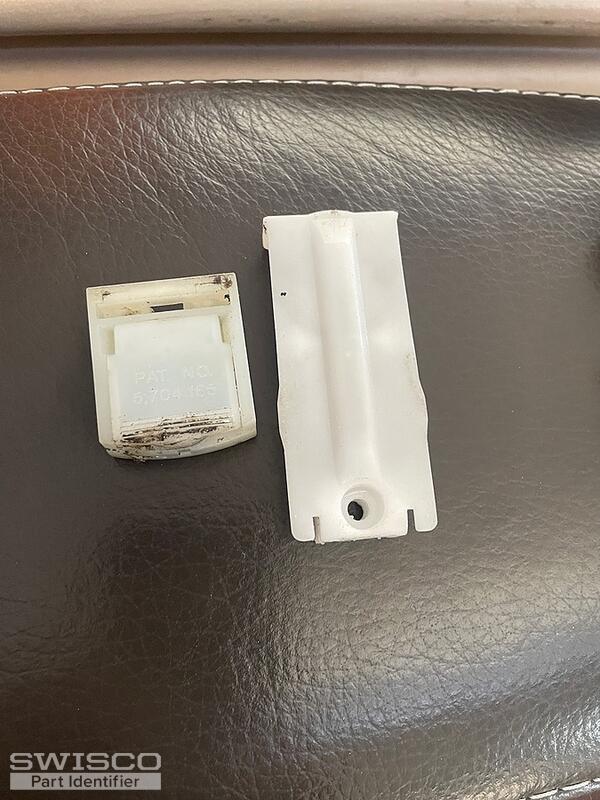

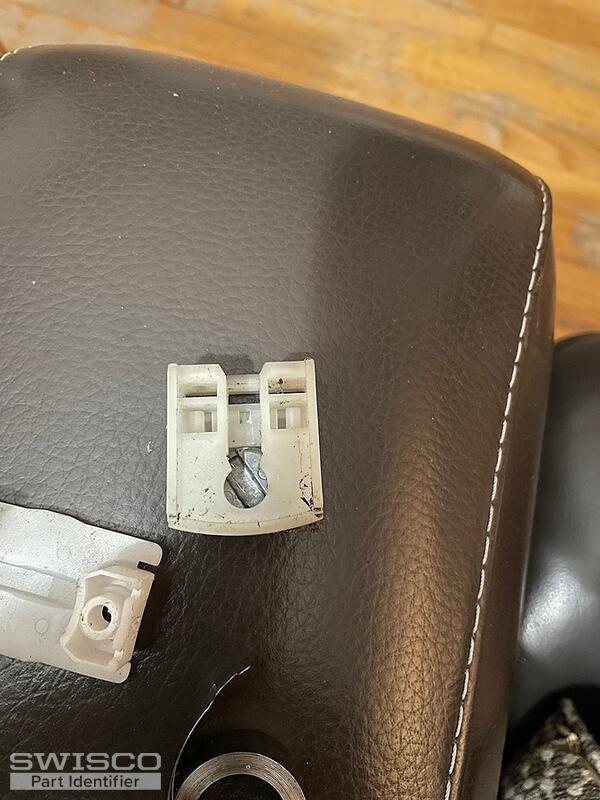

Hello, Take a look and compare the specifications of the 15-199 pivot shoe, which is compatible with the 1/2" wide S160 or 3/8" wide S165 coil springs, to your parts. As for the balance cover, you can find the compatible replacements under the related items sections of the coil balance product pages. Thanks for posting! |
Casey from SWISCO responded:
February 15, 2023

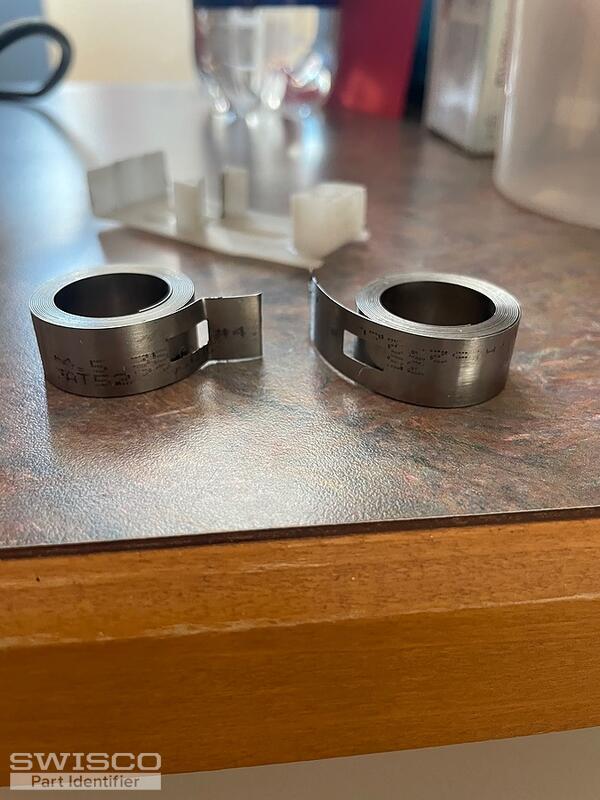

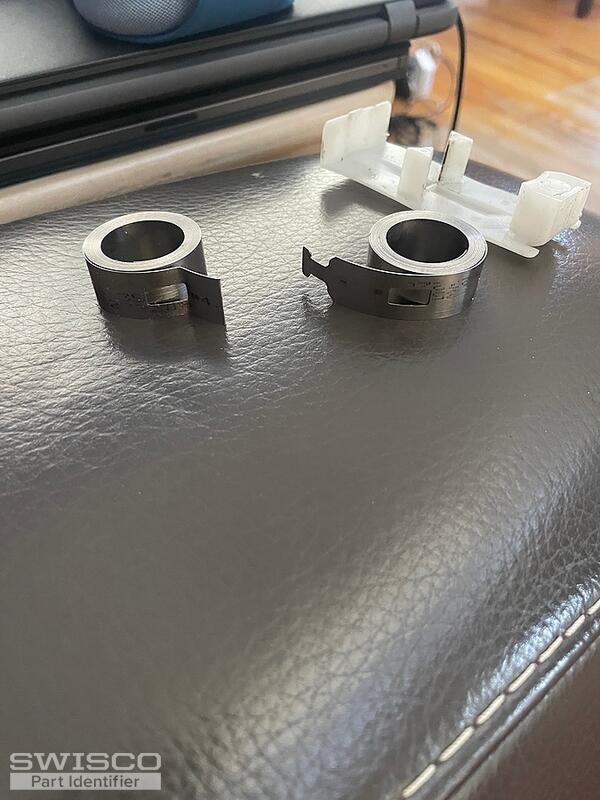

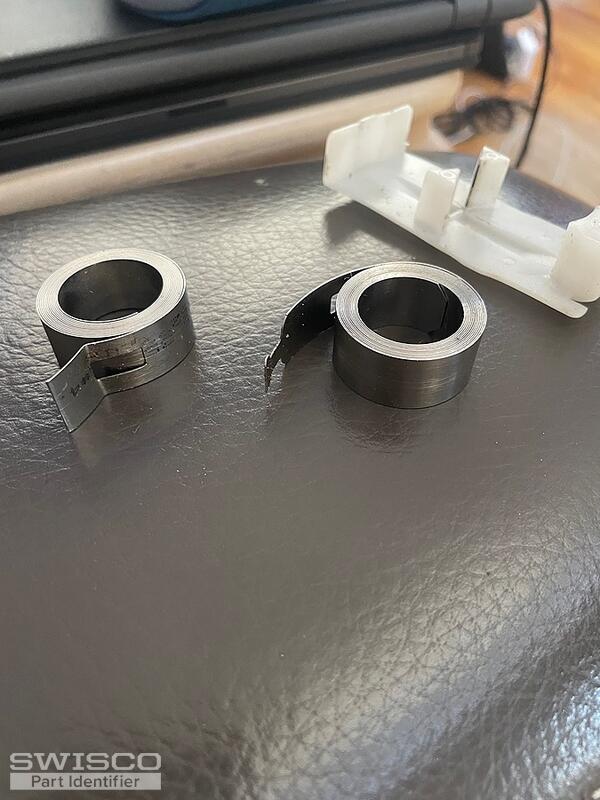

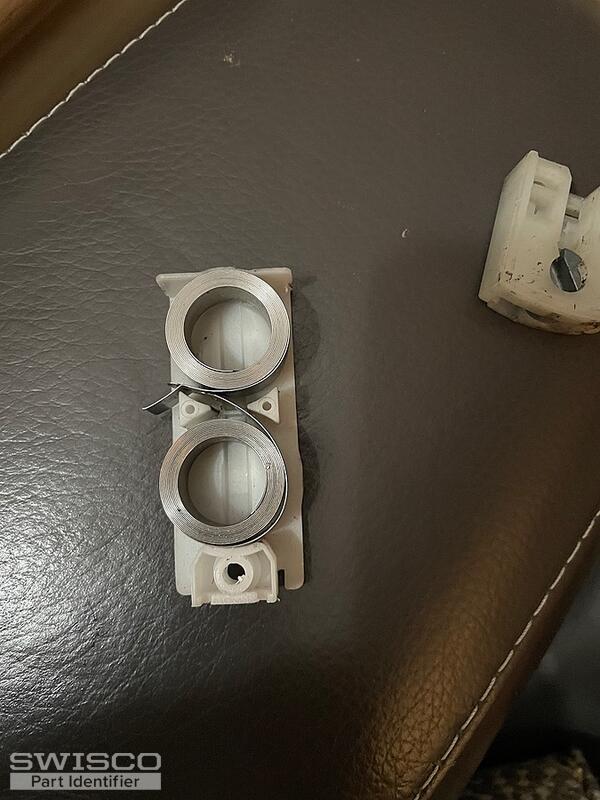

It does look like the end of one of the coils broke off, which means that you would need to replace it. You'll need to confirm the width and use the stamp code printed on the end of the coil spring to choose the correct series and corresponding strength option. |
Casey from SWISCO responded:
February 15, 2023
|
Casey from SWISCO responded:
February 15, 2023

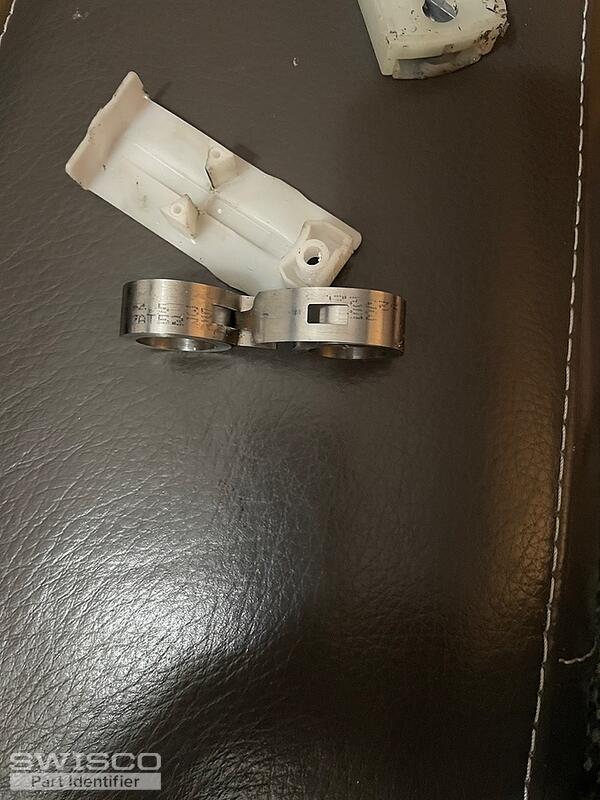

You are correct that the primary difference is the width of the coil, though you'll also notice that the cutout is in a slightly different position as shown in our product images. |
Casey from SWISCO responded:
February 16, 2023

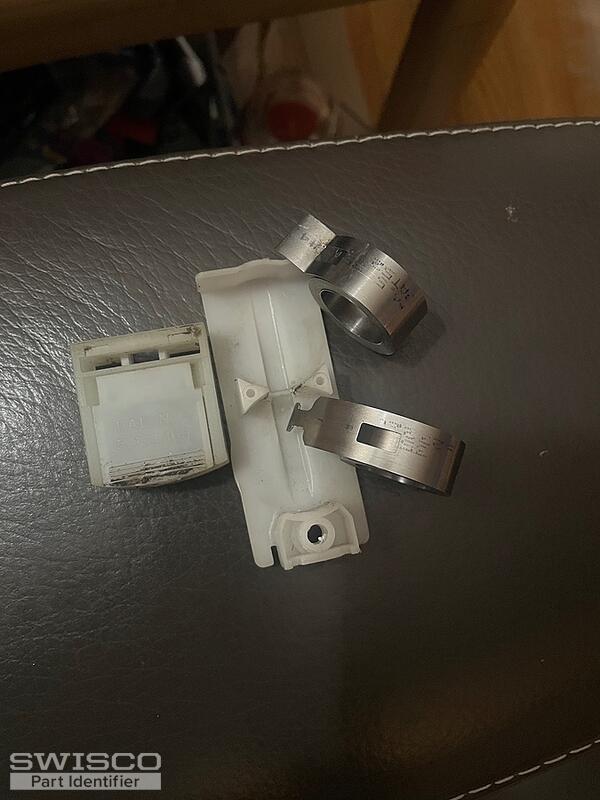

You would just need to check for overall damage or rust on the coils. If the coil is the only broken part, the S160-4 would be all you need for now but it may be a good idea to replace both coils since, once one breaks, the other may not be far behind. |
Casey from SWISCO responded:
March 28, 2023
Unfortunately, the S140 would not be a suitable replacement for your balance assembly. We would recommend replacing the broken or worn parts of your assembly with the replacements that we discussed earlier in this thread. |
