Looking for parts for my slider
Quick Learner from USA
May 30, 2017 9:40 am

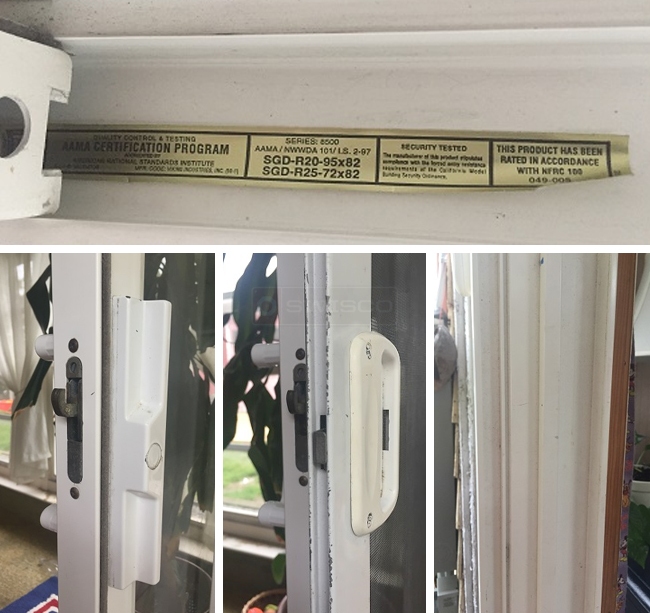

Hello I'm looking for a few parts that were never installed on a slider in my home. It is the 72" version. I'm looking for a lock for the door. One keeper for the door handle/lock set and one for the screen door. I'm enclosing some picture that I hope will help. Any help you can provide would be greatly appreciated Thanks
4 Replies
Tom from SWISCO
Jun 5, 2017 8:40 am
Thanks for your patience. We're having trouble identifying what you have. Could you show us a clearer shot of the screen door pull? Can you also tell me the distance between the two installation holes, center-to-center? As for the keeper, you could have any number of different types. It would depend on the space available in your jamb. Start with the 89-020, 89-021, or 89-021D. These are only three suggestions, there could be more. Your mortise lock is compatible with a wide variety.
Handy Person from Massachusetts
Jun 5, 2017 7:55 pm

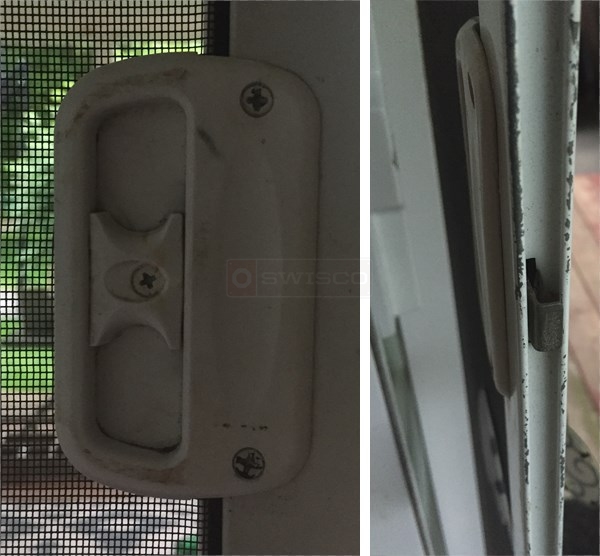

C to C on the screen door handle is 3". The strike is 1/2" long with 3/16 of travel up or down. The jamb is 1/2" deep where the screen slides in .
The mortise lock strike protrudes 3/4" when in the locked position. The jamb is 1 1/16" deep where the door slides in.
Is there any chance on getting a lock as well? It's a 5/8" bore and 1 3/4" from C of the mortise to the face of the handle. It uses a flat bar to turn the strike. Anything else u need please let me know.
The mortise lock strike protrudes 3/4" when in the locked position. The jamb is 1 1/16" deep where the door slides in.
Is there any chance on getting a lock as well? It's a 5/8" bore and 1 3/4" from C of the mortise to the face of the handle. It uses a flat bar to turn the strike. Anything else u need please let me know.
Tom from SWISCO
Jun 7, 2017 11:14 am
Thank you! I think our 85-001 or 85-011 screen door keepers could work for you. For the patio glass door mortise, it looks like you use our 82-218. The keepers this is most commonly used with are the 89-021, 89-021D, or 89-020.
Finally, for the patio door lock, you should be able to knock out the center punch in the outside handle and install our 82-310.
Finally, for the patio door lock, you should be able to knock out the center punch in the outside handle and install our 82-310.
