Looking for window channel balance to repair

A home owner from Everett, WA says:
February 18, 2022
I need to replace new window channel balance
When I search Google "25 4 KO CALDWELL"
your website shows on the list.

do you know what product I need to purchase?
Thumbnail of the uploaded file named KakaoTalk_20220216_144026769.jpg
Thumbnail of the uploaded file named KakaoTalk_20220216_144043701.jpg
Thumbnail of the uploaded file named KakaoTalk_20220216_144053008.jpg

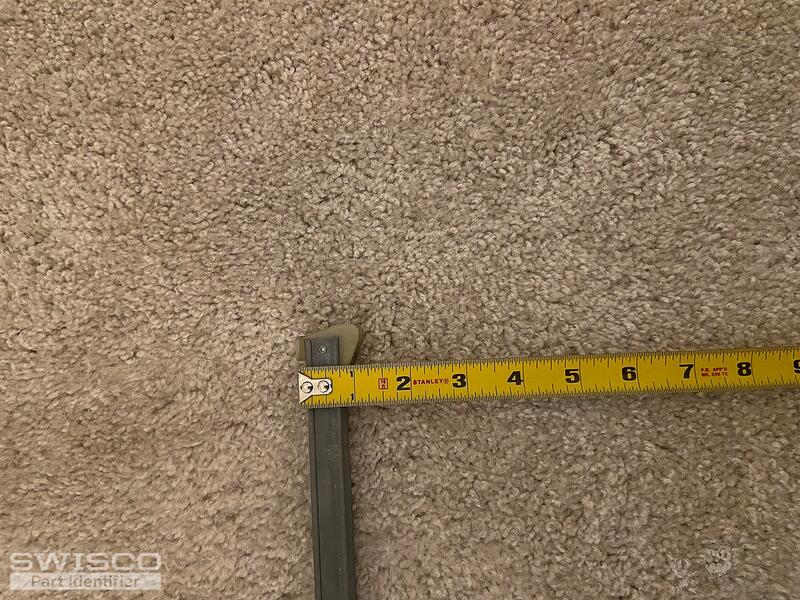

Thumbnail of the uploaded file named KakaoTalk_20220216_144102648.jpg

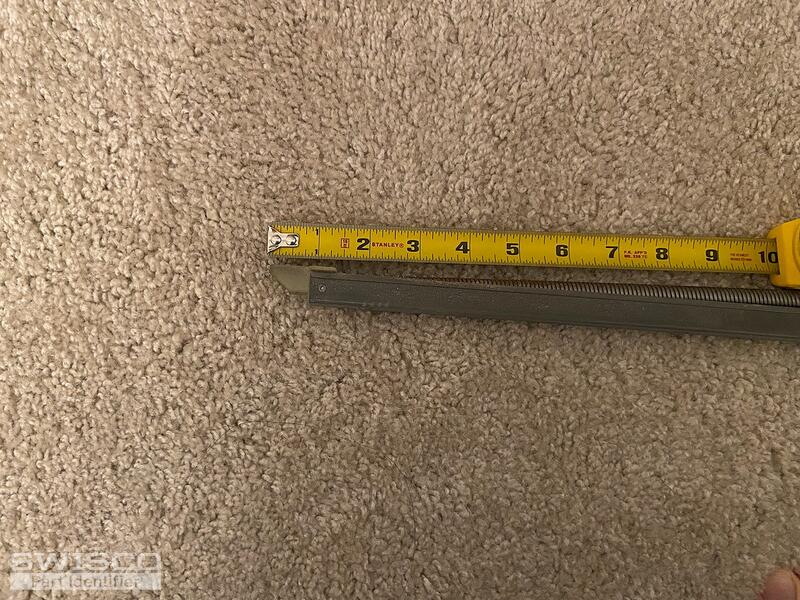

Thumbnail of the uploaded file named KakaoTalk_20220216_144110759.jpg
Profile picture of Casey
Casey from SWISCO responded:
February 21, 2022

Hello,

With this combination of attachments, you could have either an S380-26 or S385-26 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2540 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.


Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A quick learner from Everett, WA says:
June 12, 2022
Hello,
I purchased product S385-26 channel balance with 1-3/32" attachment and 2540 spring strength

When finally whether gets warm, I was trying to replace window balance.
However, When I tried to pull spring (or terminal clip or hook). It is impossible to pull and I do not think I could push down when I insert terminal clip in square hole located in jamb.

Can you double check again of the product?
Profile picture of Casey
Casey from SWISCO responded:
June 13, 2022

It seems like you've purchased the correct balances based on what you've sent us so far. If you think that the spring tension may be too strong, I would recommend starting by weighing your window sash to confirm if it falls within the 2540 weight range shown under the S385-26 product description.

Also, see our non-tilt channel balance installation video below if you haven't already.
