MRDC - Traco Aluminum Tilt-Sash Windows

A contractor from Newark, DE says:
Hi Steve,

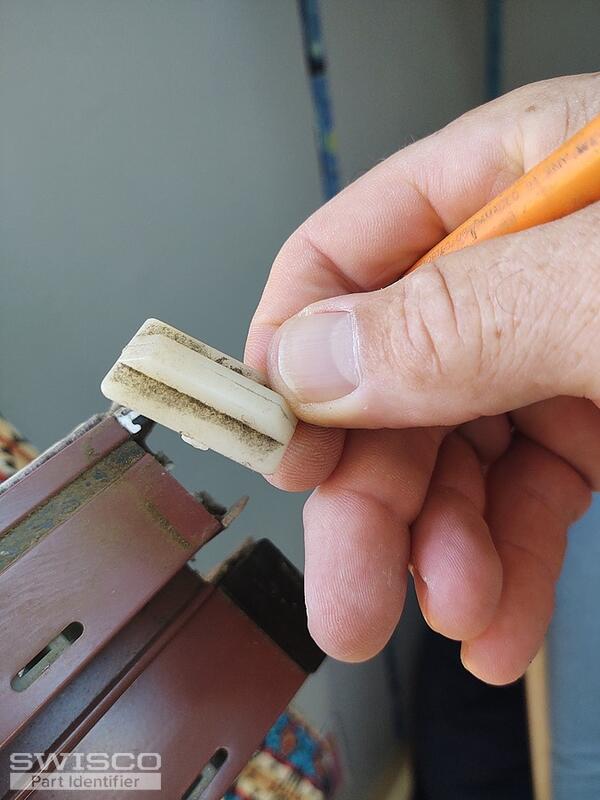

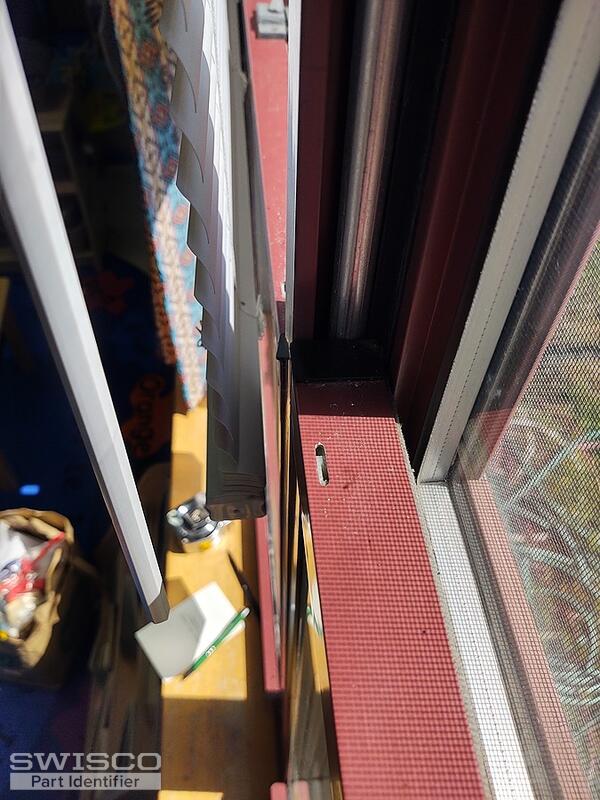

I am looking for some replacement parts for some TRACO windows. I know that I need some balances but what I need your help with is identifying the tilt release latch and the part that holds the window in the frame on the side. It looks like over the years, they have just pulled real hard on the sash to tilt them and have broken the plastic piece that holds them in. Thoughts?
Thumbnail of the uploaded file named IMG_20210616_102510385_HDR.jpg
Thumbnail of the uploaded file named IMG_20210616_102041597.jpg
Thumbnail of the uploaded file named IMG_20210616_102308219.jpg
Thumbnail of the uploaded file named IMG_20210616_102339103.jpg
A contractor from Newark, DE says:
more photos

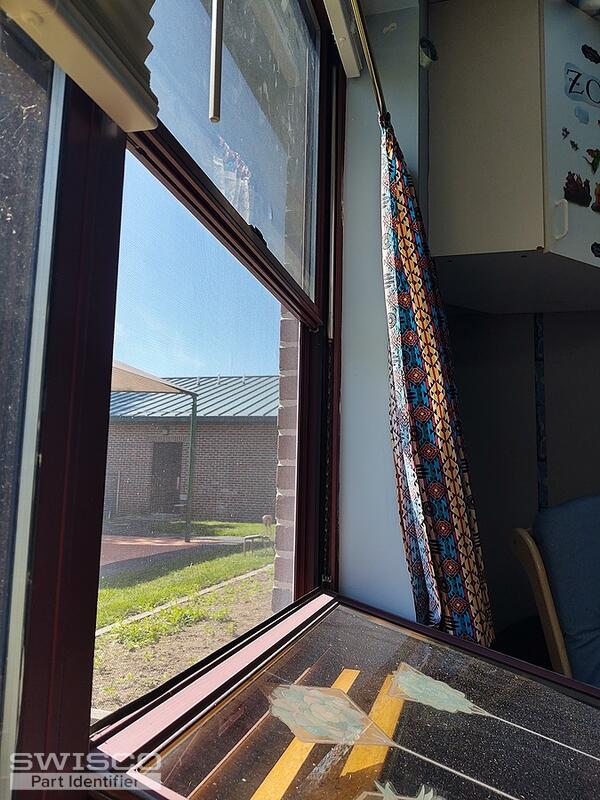

Thumbnail of the uploaded file named IMG_20210616_101447758_HDR.jpg

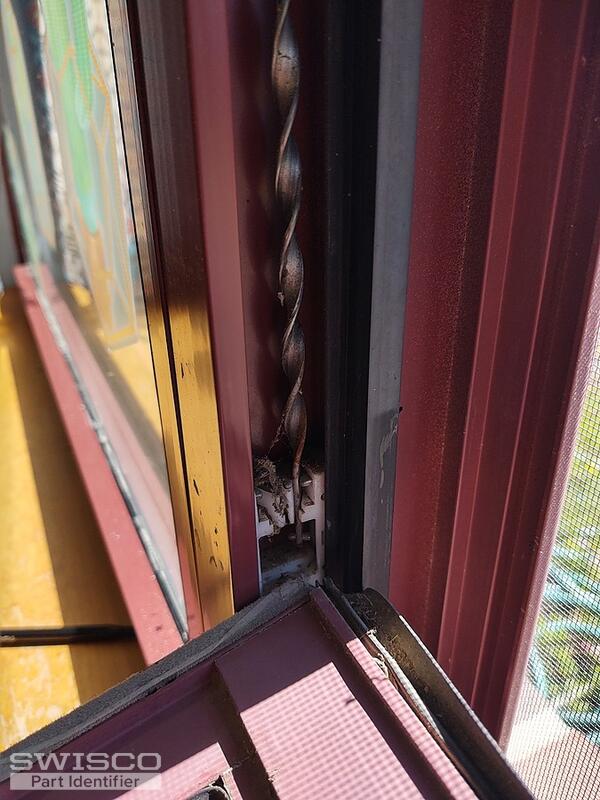

Thumbnail of the uploaded file named IMG_20210616_101458863_HDR.jpg

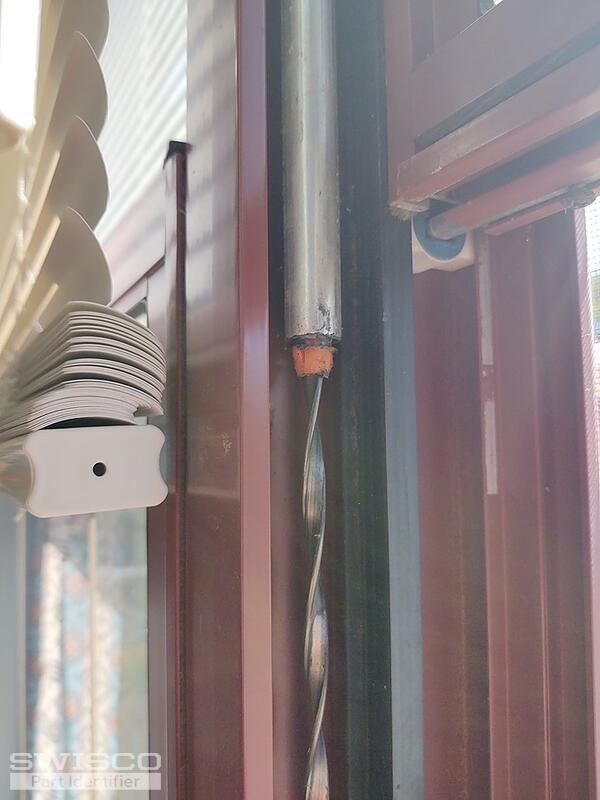

Thumbnail of the uploaded file named IMG_20210616_101502854.jpg

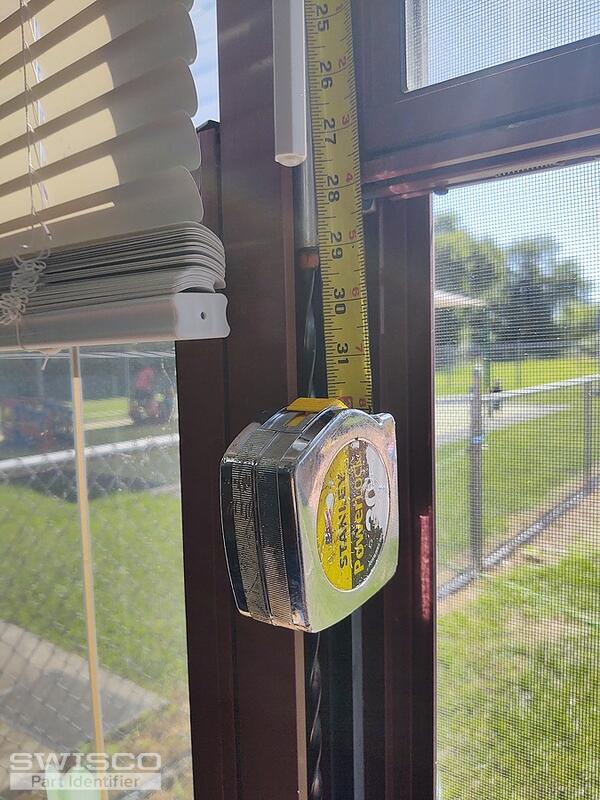

Thumbnail of the uploaded file named IMG_20210616_101850859.jpg
Thumbnail of the uploaded file named IMG_20210616_101953927.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

We'd be happy to help but we would need to see the internal latch uninstalled to compare to our inventory. As for your balances, see our S600 or S900 spiral balances, depending on the diameter of your metal tube. Thank you!

A contractor from Newark, DE says:
Hi Casey,

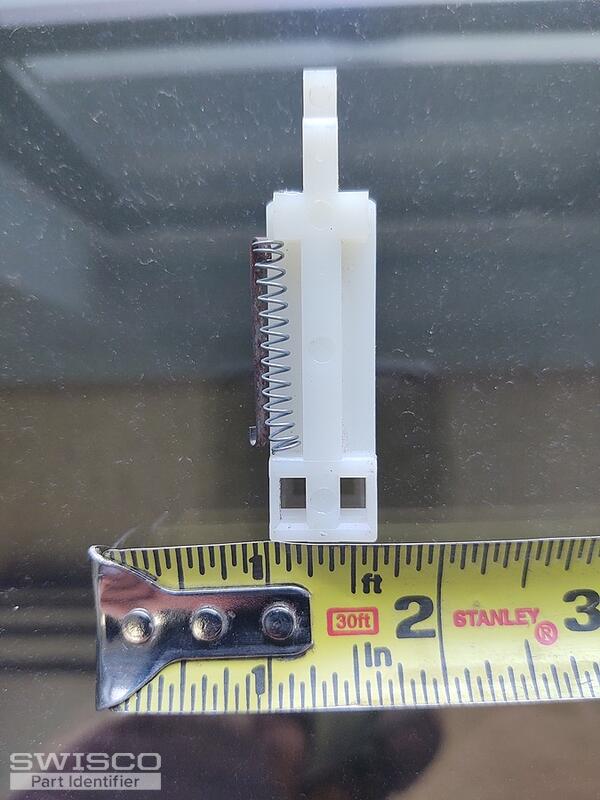

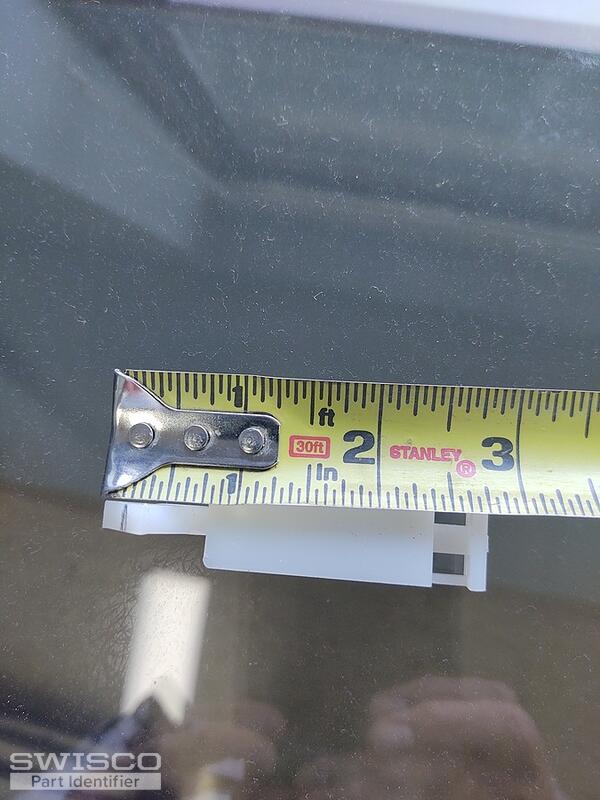

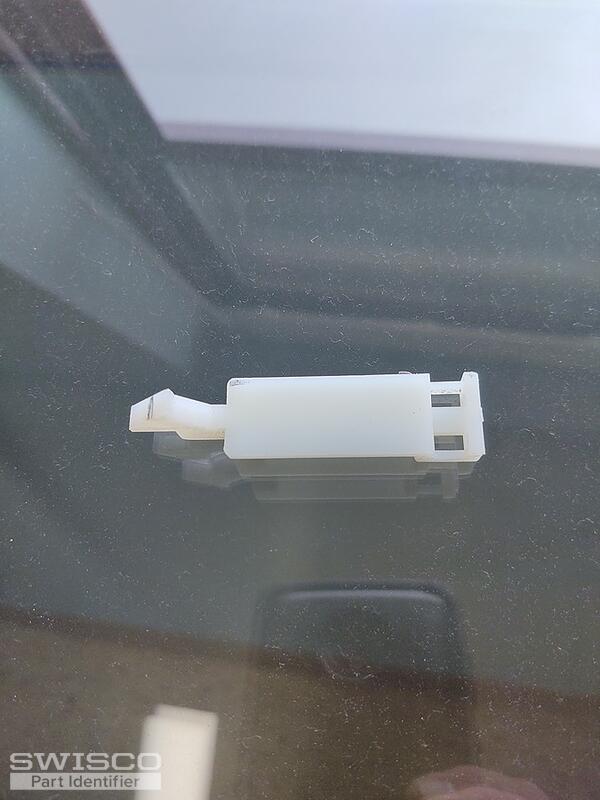

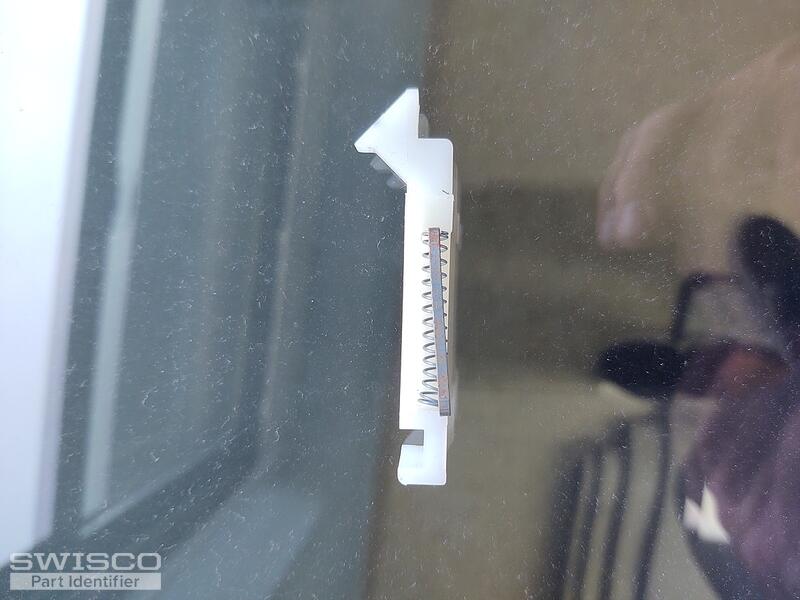

I am attaching photo's of the internal latch.
Thumbnail of the uploaded file named IMG_20210726_150051565.jpg
Thumbnail of the uploaded file named IMG_20210726_150100272.jpg
Thumbnail of the uploaded file named IMG_20210726_150142932.jpg
Thumbnail of the uploaded file named IMG_20210726_150222785.jpg
A contractor from Newark, DE says:
Hi Casey,
More questions...

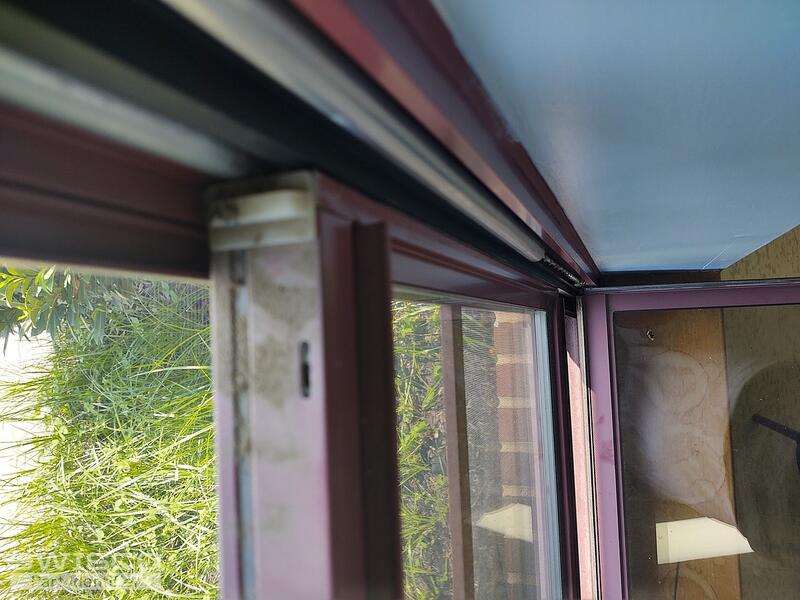

All of the windows are missing what seems to be some type of a "Thumb latch" on the top and bottom sash that would assist in disengaging the internal latches without needing to use a small screwdriver. Is that correct and if so do you have those parts?

As for the "balances", I have several different size windows which are going to require different balances, which I have all the sizes and colors identified (i.e. 23" Red S600 , 19" Blue S600 , 25" Black S600 etc.). Do yo sell balances by the piece or by the case? If by the case, how many to the case?
Thumbnail of the uploaded file named IMG_20210616_102339103.jpg
Thumbnail of the uploaded file named IMG_20210726_151257359_HDR.jpg
Thumbnail of the uploaded file named IMG_20210616_102510385_HDR.jpg
Profile picture of Casey
Casey from SWISCO responded:

Take a look and compare the 26-069 tilt latch to yours, which uses the 26-002 release lever. As for the balances, the price that you see on our website is for each individual balance. Thank you!
