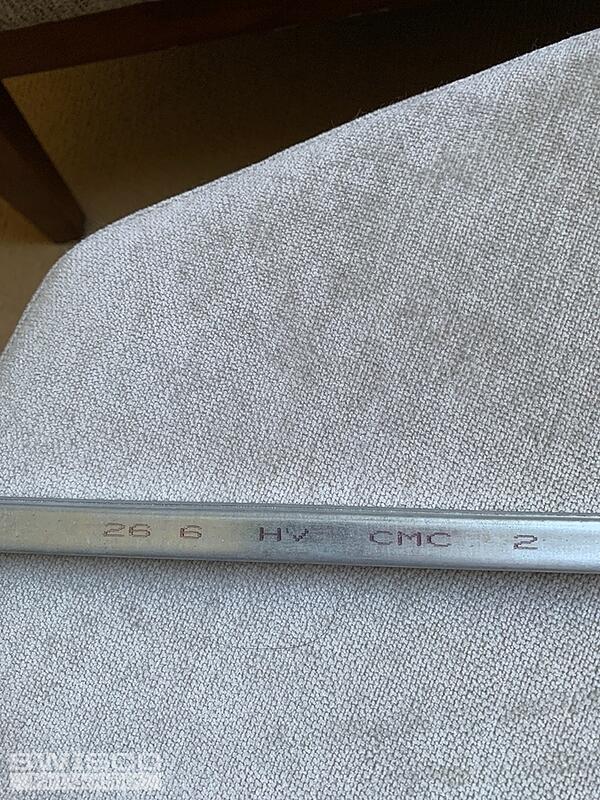

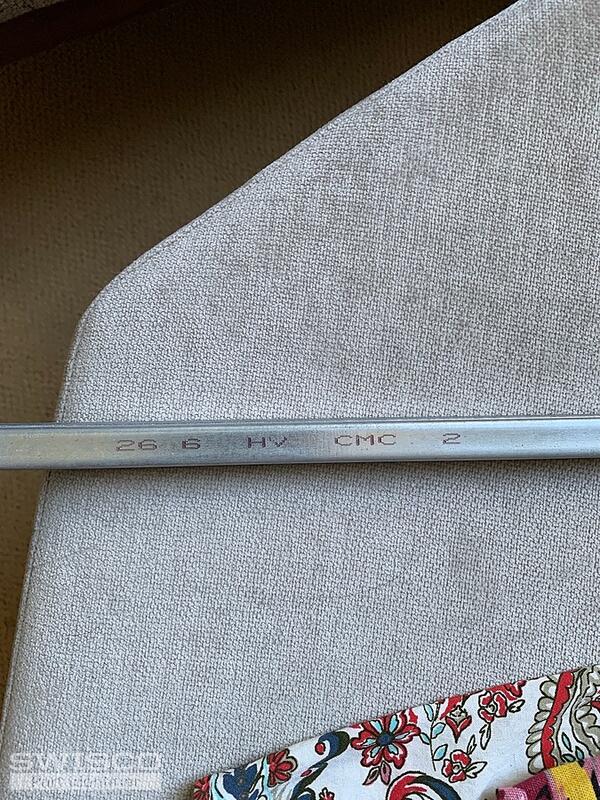

Markings: 26 6 HV CMC 2
Home Owner from California
Nov 17, 2021 2:38 pm

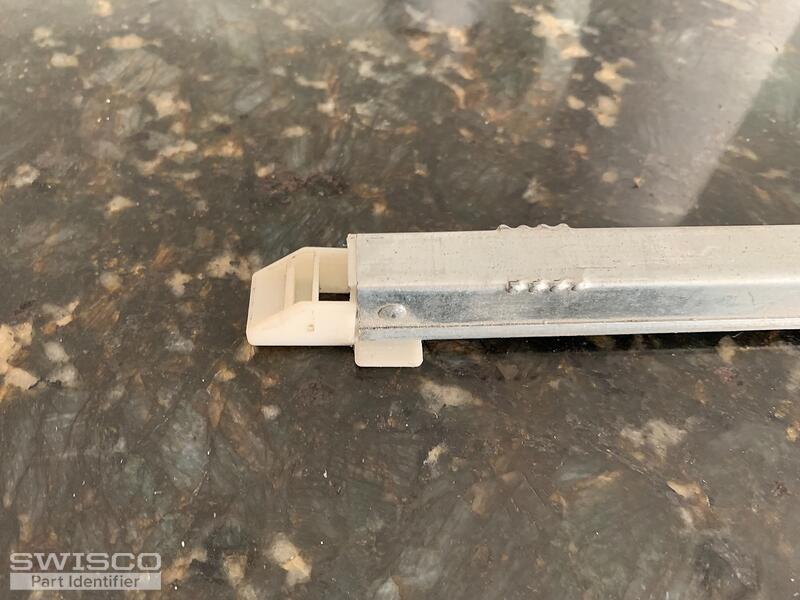

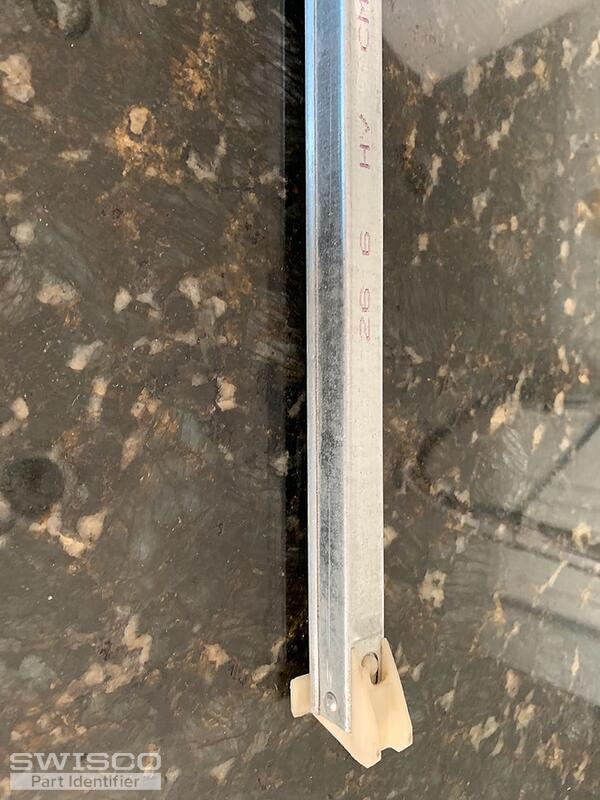

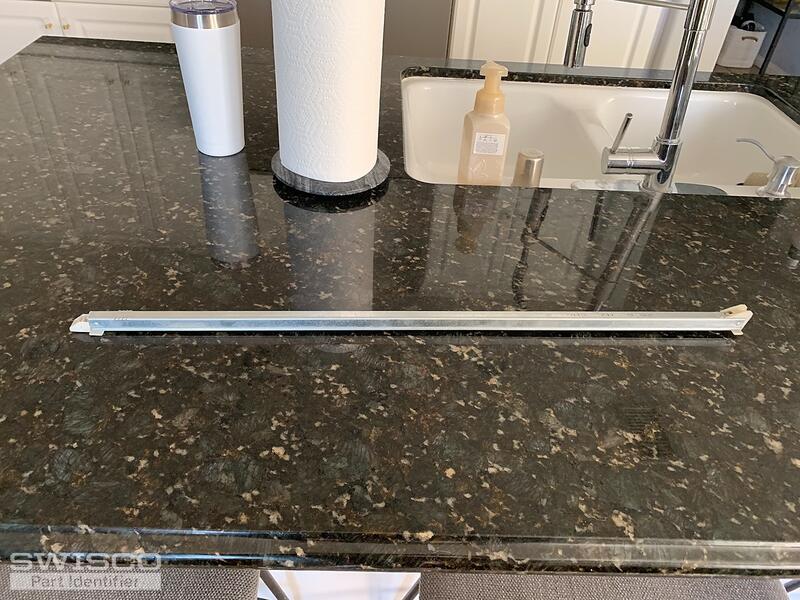

These need to be replaced. They are in my Milgaurd non-tilt windows. Looking to buy replacements.
5 user uploaded images
2 Replies
Lauren from SWISCO
Nov 19, 2021 10:04 am
Hello, thank you for posting!
With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. The length of your metal channel should measure 27" and you will need a 2660 stamp option.
Comparison of the S378, S380 and S385 balance shoes.
Please let me know if you have any questions!
