Maximum installed width for 84-017

A quick learner from Chicago,il says:
Hello..what will be the max width of this roller with pin installed? I have screen that has opening of only 3/8..will this 84-017 fit? I can not have pin or screw taised bigger than total 3/8 from side to side. Thank you

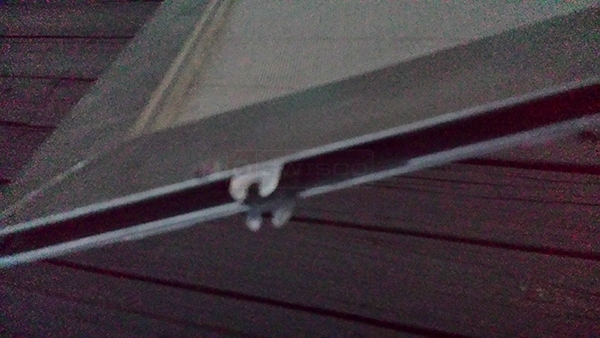

User submitted a photo of screen door hardware.
Profile picture of Paul
Paul from SWISCO responded:
Actually, I think you might have a corner roller assembly. Perhaps something like our 84-011, for example. However, in order to confirm, you will need to remove what you have now. To do that, remove the screen wire from the door, loose the adjusting screw at the end of the screen door, then lightly tap the frame apart. That will allow you to remove the roller. From there, carefully compare it to our selection of corner screen roller assembles and see if anything is a match.
A quick learner from chicago, il says:
Paul,

Thank you for information. I was able to remove the corner roller assembly and measured it. It seems like 84-026 is more close match to the dimensions that I have. I will order that. Thank you for your help!!
