Metal bifold doors with top and bottom tracks - what pins?

Landlord from Reno, NV

Jan 2, 2022 2:37 pm

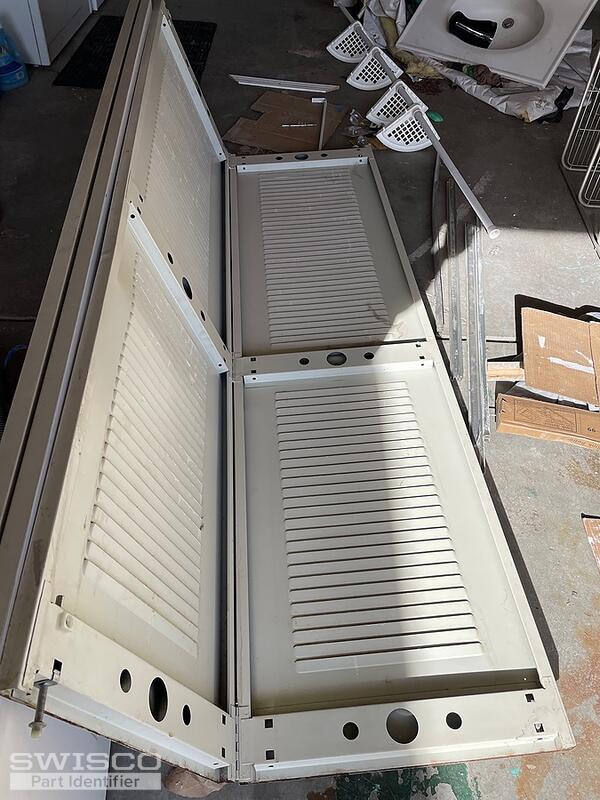

We have two closets with metal bifold doors and I am THRILLED to finally be able to fix them. I need new tracks and new pins all around. Attached is a photo of the top pin on one door. Can you help me figure out what I need? Thank you!

1 user uploaded image

7 Replies

Bob from SWISCO

Jan 5, 2022 10:20 am

Thanks for posting. We need just a little more information. Can you tell us the diameter of the pins, as well as the diameter of the caps atop the pins? And is there any manufacturing information on the door you can show us a picture of? We'll do our best to assist from there.

Landlord from Reno, NV

Jan 16, 2022 4:22 pm

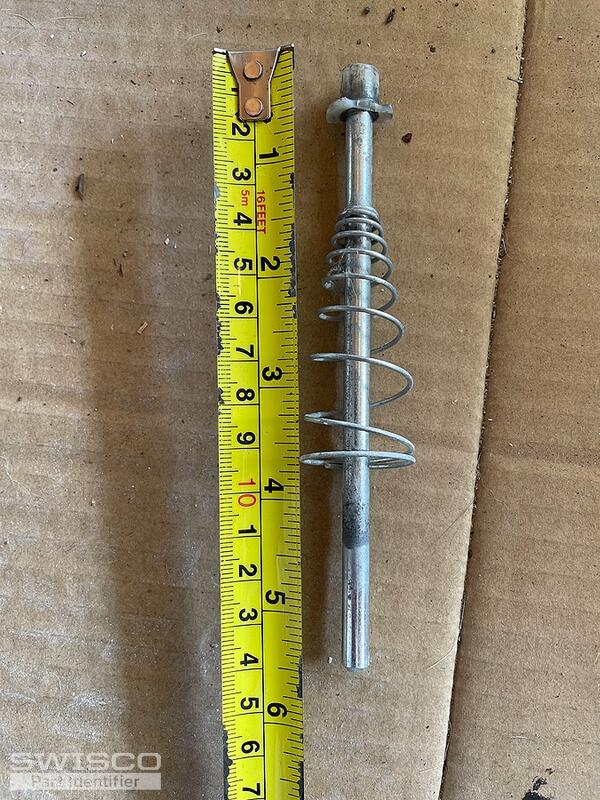

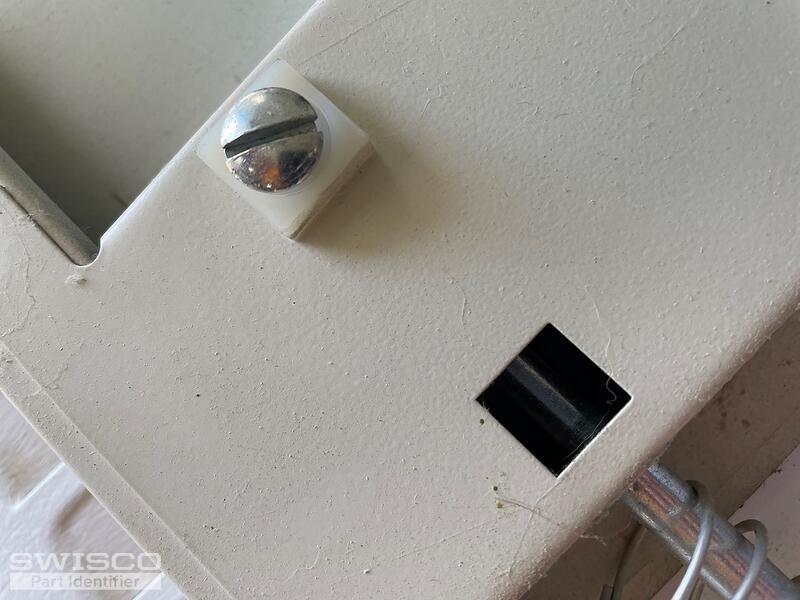

The pins are 1/4 diameter and 5.5 inches long.

The brims of the caps are 5/8 and the smaller part of the cap is 3/8

There are no manufacturing marks.

The conical springs seem to be 2 inches tall.

5 user uploaded images

Paul from SWISCO

Jan 21, 2022 10:34 am

Perhaps I can help. It looks like you have the old style Slimfold bi-fold doors. I pulled up all the related parts that go with your doors. If you are replacing the tracks, look at the 21-401 3' track, as well as the other sized varieties I have listed on this page. For the bifold pins, you will need one bottom threaded pivot pin, the 21-001; for the other three you will use 21-007. Please review.

Landlord from Reno, NV

Jan 24, 2022 2:04 pm

Thank you! Do I need springs, as well? The springs I have are not good.

Paul from SWISCO

Jan 25, 2022 12:31 pm

The springs are in fact included with the 21-007 Guide Pins.

Landlord from Reno, NV

Jan 25, 2022 4:31 pm

You guys are the best! Thank you. I ordered the parts and look forward to revitalizing these doors. I wish that I had found you years ago.
