Mi casement 9700 series

Hi Edward. We've associated that window with a few different types of operators, and I am afraid I can't cross-reference the code on the arm to anything in our database. The best thing to do is send pictures of the operator. I will need to see the entire mechanism, including the link arm(s) that push and pull the window sash. A bird's eye view with the window open is best. From there we'll do our best to find what you need. Many thanks.

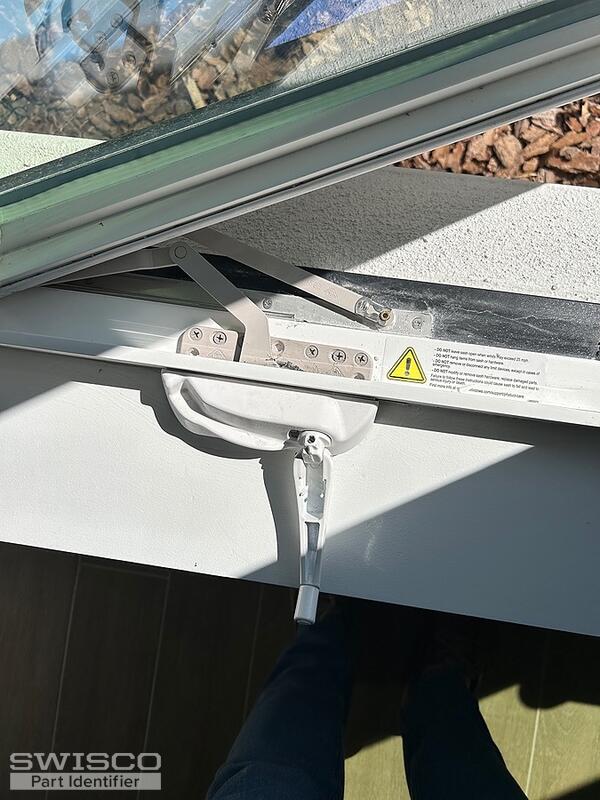

Thanks for getting back to us, these photos are a huge help. The bad news is that I'm having trouble finding an exact match.

Looking at the design of the arms alone, I'm strongly reminded of our 39-326, which is a ROTO part. Note the offset in the link arm and its orientation in regards to the gear arm. The only detail I'm not sure about is the style of the connection point at the end of your link arm; ours has a downward-facing pin, but yours is too obscured to make out.

Another major concern is the size of the screw base. Yours seems like it's much wider than ours (which is just about 3-1/4", give or take). Can you check that detail for me? You will find it easier to compare it to our 39-326 if you were to remove it from your window entirely. At this stage, many important details are still obscured so long as it's installed. I think the 39-326 is close, but I'm not convinced.

Dimensions for 39-326

Side profile view with measurements
