Milguard casement windows

Hello! We should be able to help you with all parts shown in these photos, yes. I'll just need a bit more information before we can make any recommendations.

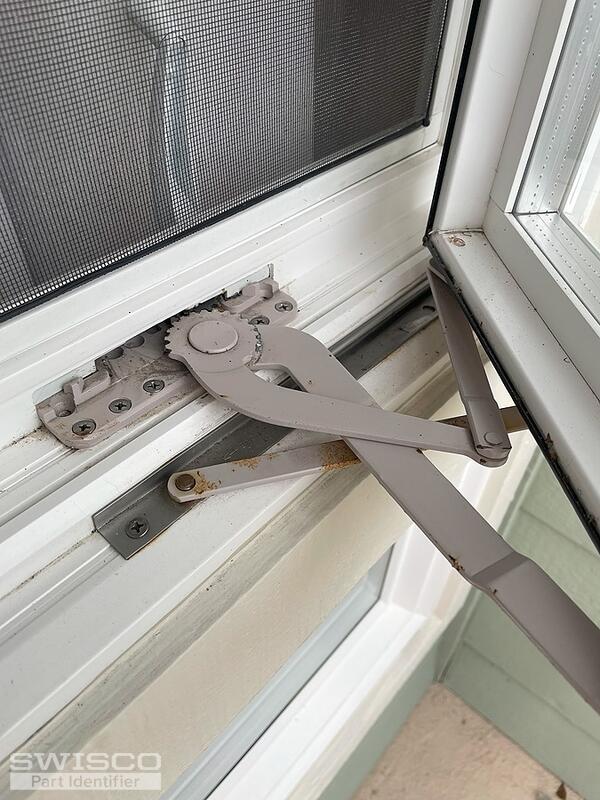

Starting with the operator, can you disconnect the long arm from the track and show me a picture of the end? I'm chiefly interested in the black guide you'll see connected to it.

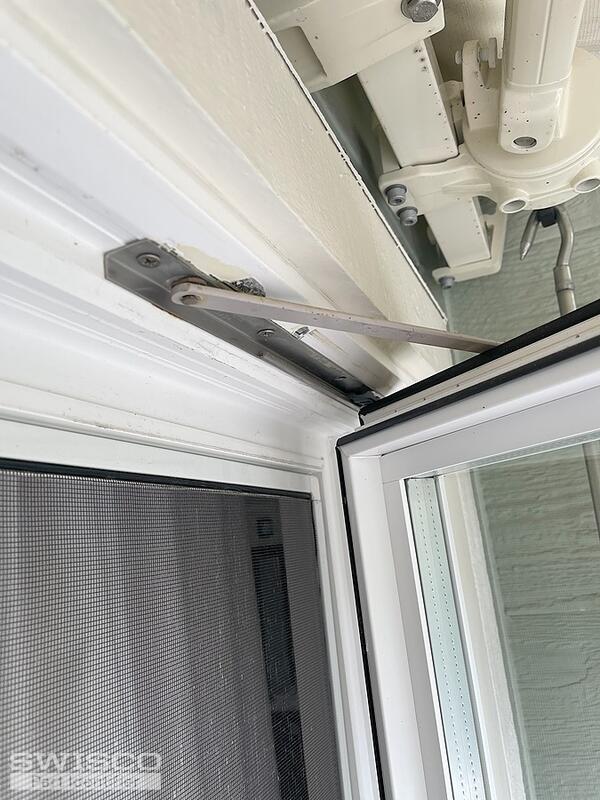

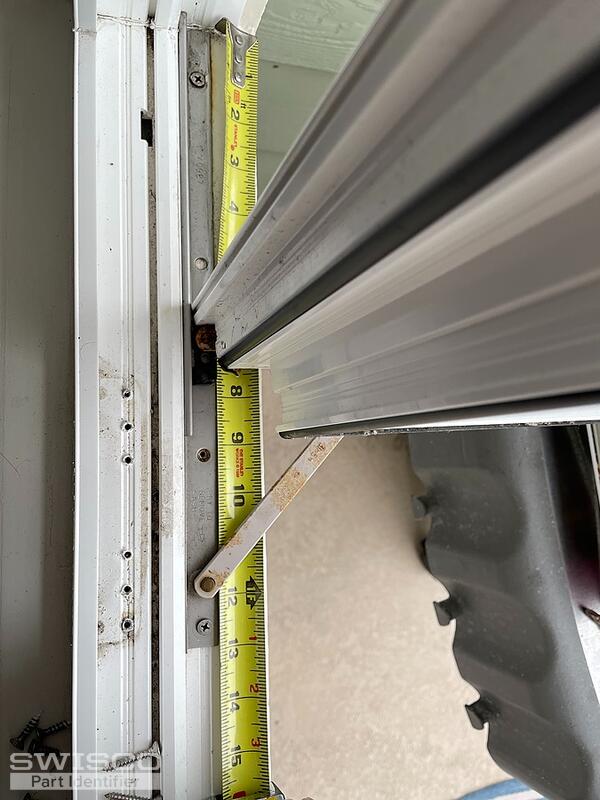

Moving on to the hinge assembly, I feel confident that you can use something like our 36-048 to replace this. The only catch is that you have to make sure to replace the top and bottom at the same time, or else the sash won't have a symmetrical movement. Also note that the 36-048 has a 10" long sill track; if your sill track is a different size, just let me know. We have plenty of other options.

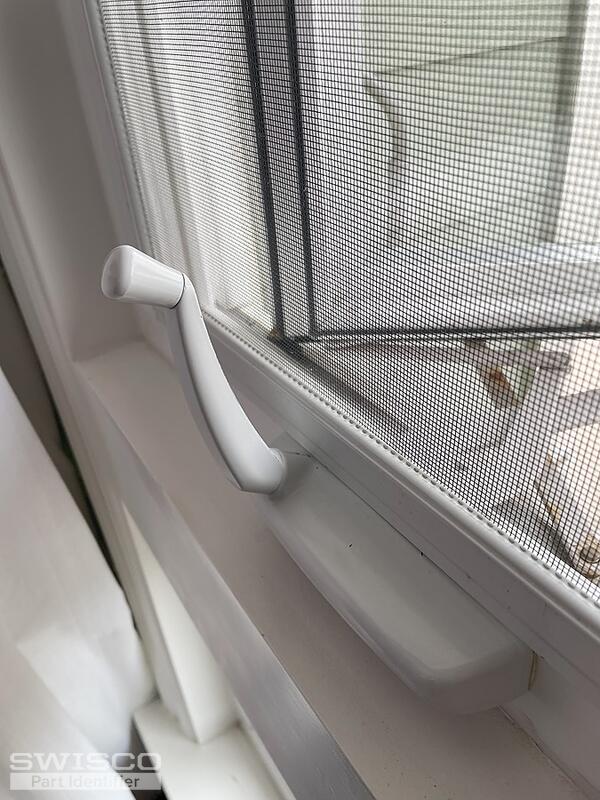

You're showing the crank handle in your third photo. This closely matches our 39-205, but you can reuse the original as long as it's still in good condition.

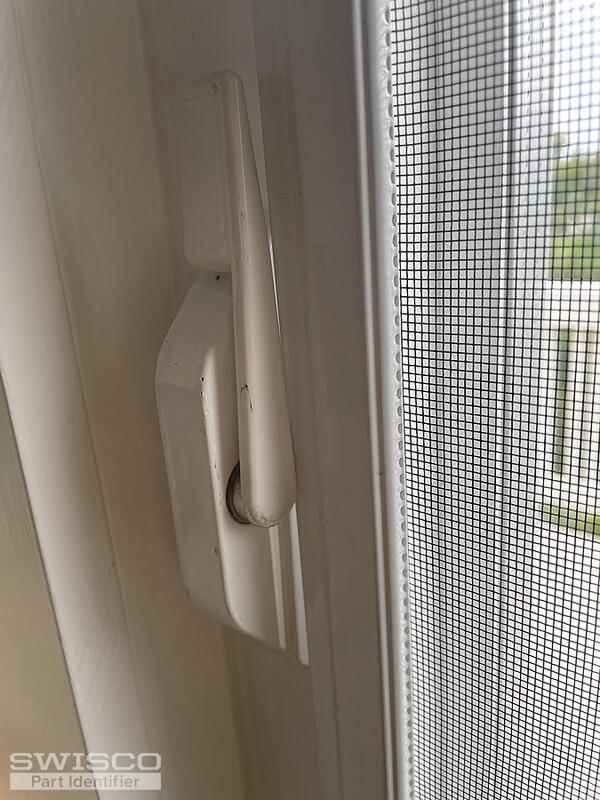

Lastly, we have the lock. This appears to be an older style, so odds are we can't get you an exact match. However one of our more modern components should work just as well. What I need to see at this stage is the lock removed so that I can see its backside. I'm mostly interested in the component it uses to interact with the linkage; it'll look like either a fork or a hooked arm.

Once I have the requested information, we can work on completing the list for you.

Thank you! These photos are a huge help.

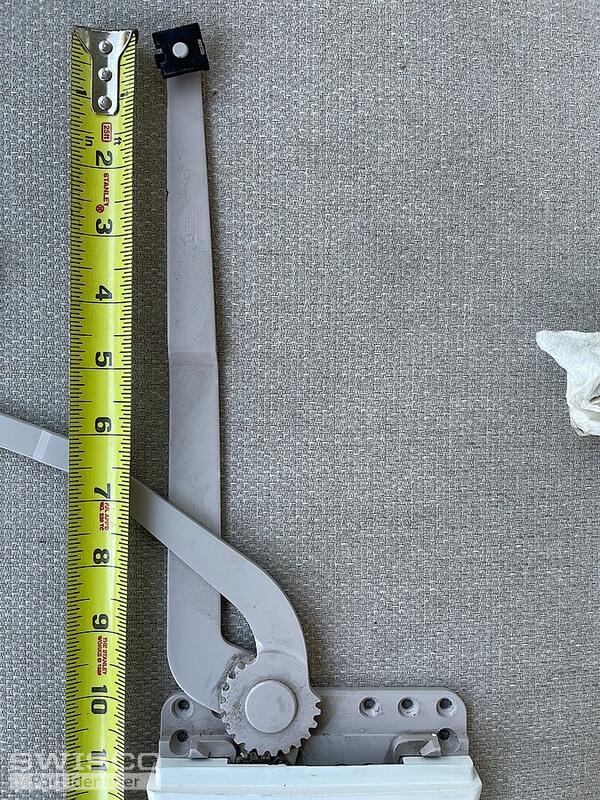

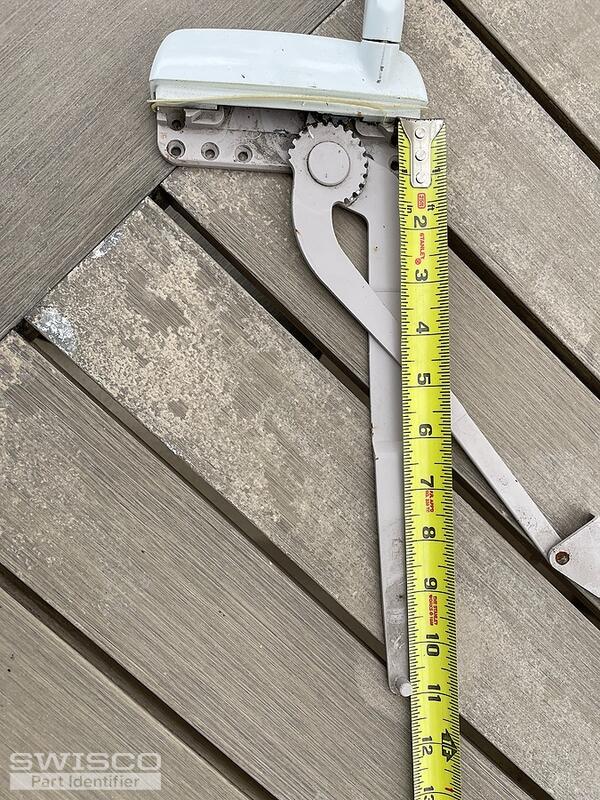

Starting with the operator, I'm very confident that you can use our 39-253LB and 39-253RB to replace the original. We also sell the 39-451 and 39-452 handle/cover sets separately. You can reuse your old guide and track, as long as they aren't damaged, but if they are then see our 39-529 and 39-528, respectively.

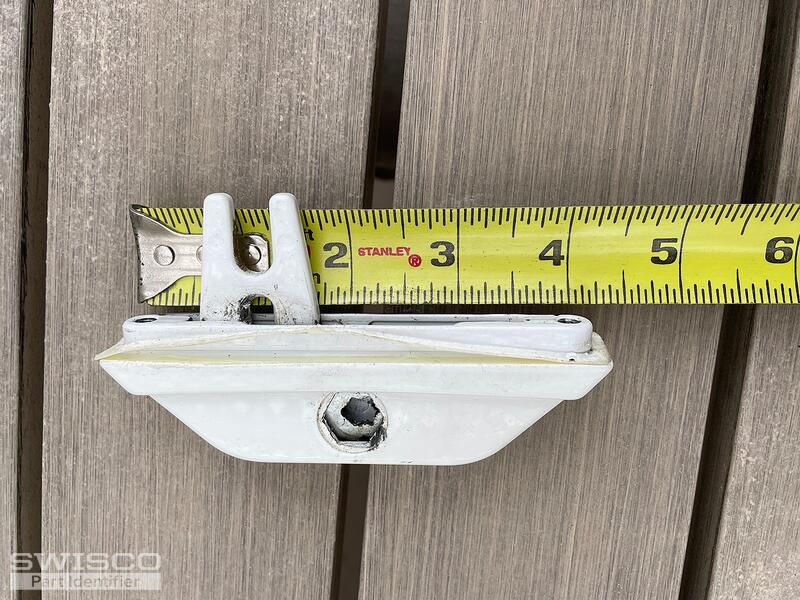

For the lock, we sell two modern options that may replace it, depending on size. See our 39-095 and 38-096. Review their dimensions to determine the best match; the most important factor here is hole center spacing and the projection of the fork.

If neither of those dimensions match when compared to our parts, let me know. We have other options, the two I mentioned are just two common picks.

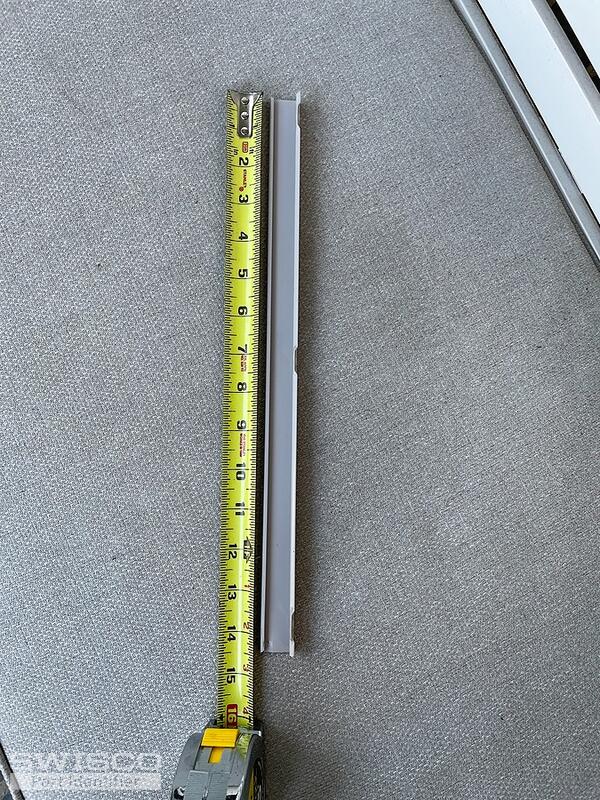

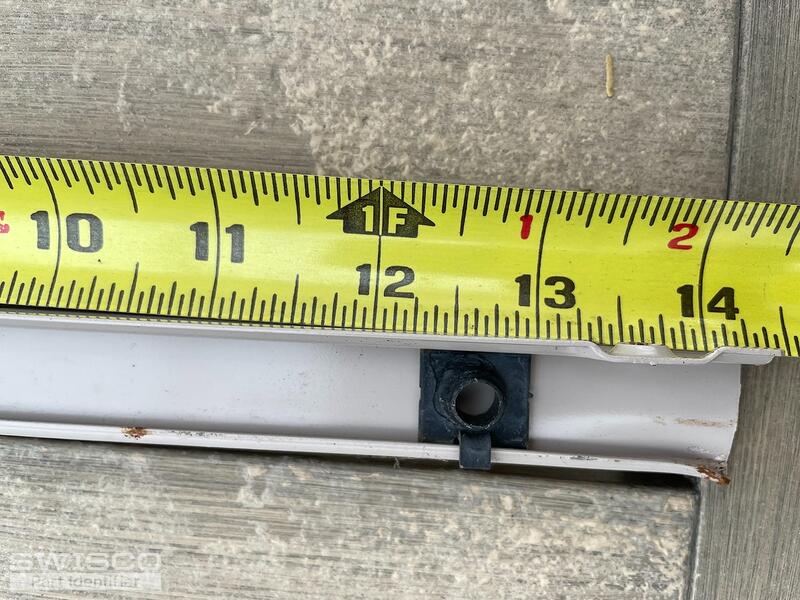

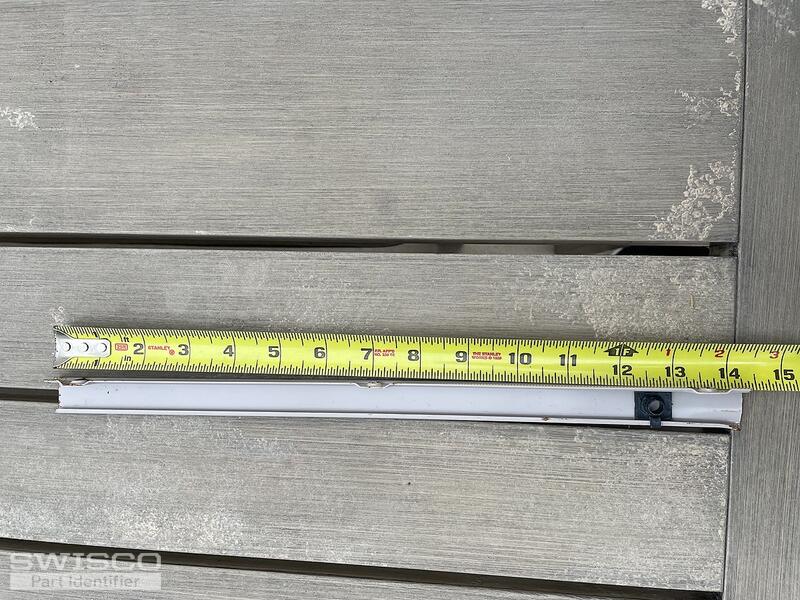

Great! I'm glad to hear that those parts all match up. For this larger window, you appear to have the same operator as before; the 39-253LB and 39-253RB. For the track, I'd suggest the 39-528. We also sell the 39-529 guide separately but you can always just reuse your original. It doesn't look broken or anything.

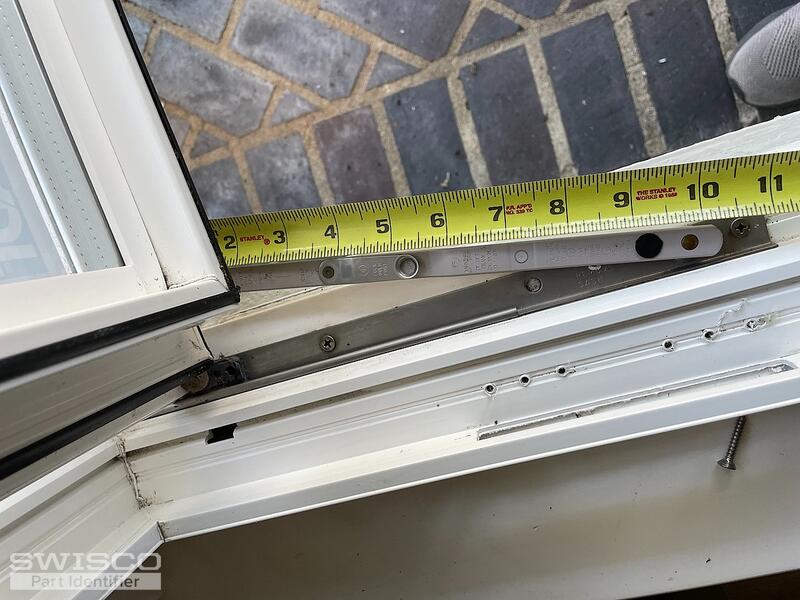

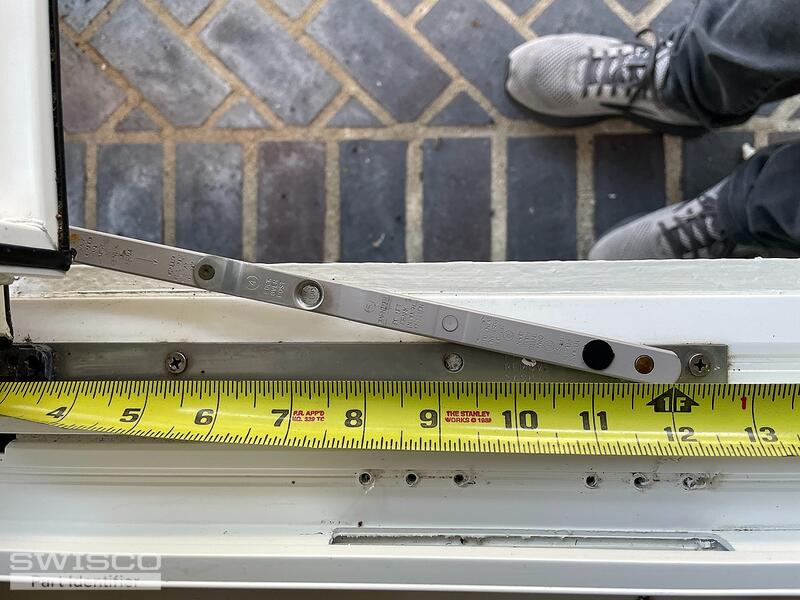

The hinge is a bit of a peculiar design, with that split arm, but I think our 36-049 can work. This has a 14" long sill track, which is a little bigger than yours, but as long as you swap out the top and bottom at the same time you should be good to go.
