N 2940

Handy Person from Orlando,Fla
Oct 25, 2023 6:06 pm

I need two new ballances 30 inch since it is marked 2940

I was having trouble figuring out the one I needed

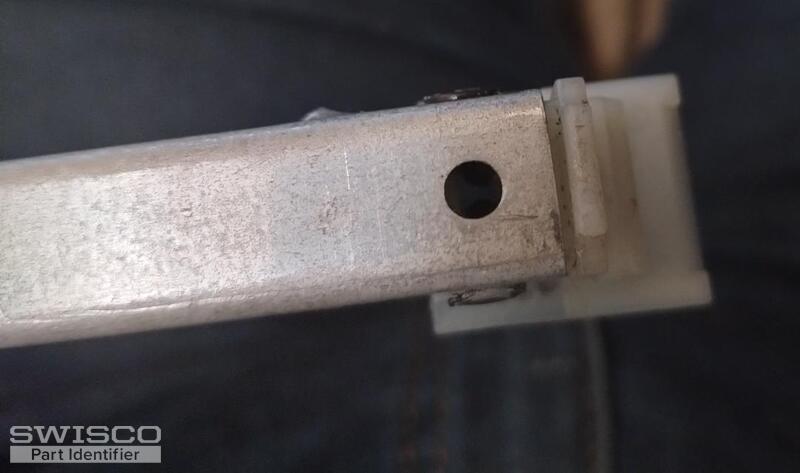

o50 o51 o52 o53
4 user uploaded images
3 Replies
Casey
Casey from SWISCO
Oct 27, 2023 9:08 am
SWISCO
EXPERT

Hello,

It looks like your balance uses the 19-018 top fitting, which would generally indicate that you would need the S377-30 with a 2940 strength option except that your bottom fitting does not appear to match the winged bottom that comes with our stock balance. We can have these made for you with the 19-018 top and either the 15-001 or 15-002 bottom fittings but it would need to be a custom order. To get started, we would need you to confirm the exact depth of your bottom attachment compared to the image below. Thank you!

Close up view of the S377 balance top.
Close up view of the S377 balance top.


Comparison of 15-001 & 15-002
Comparison of 15-001 & 15-002

Handy Person from Orlando,Fla
Oct 27, 2023 10:34 am

i need the 15-001 attachment S377-30 with a 2940 strength option 19-018 top and the 15-001

-Call me to get it ordered and startedĀ

Thank You

HerbĀ

Casey
Casey from SWISCO
Oct 27, 2023 11:28 am
SWISCO
EXPERT

Great, we just sent over an order link and price quote for you to review. Unfortunately, our part experts do not have a direct phone line and please note that all custom orders need to be placed on our website by adding the link to your cart. Take a look and let us know if you need anything else.
