Need 10 pairs of these

Home Owner from Kissimmee,FL

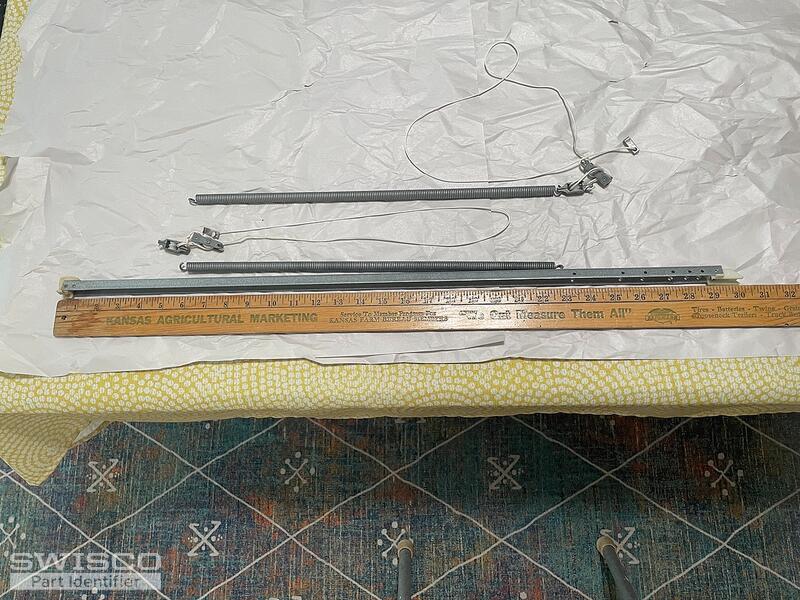

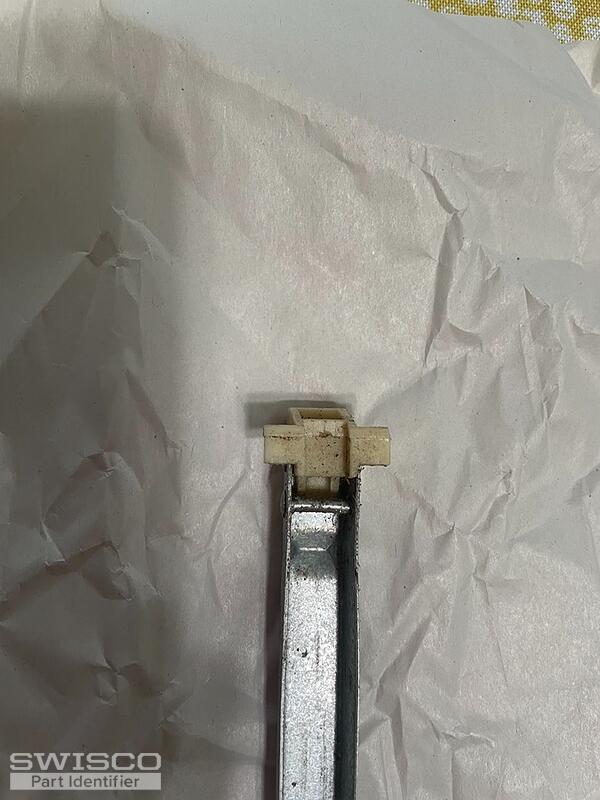

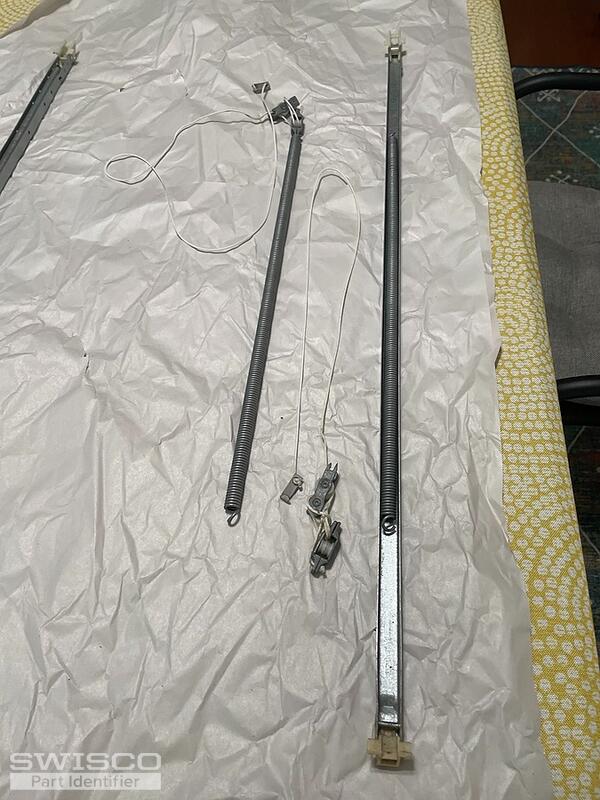

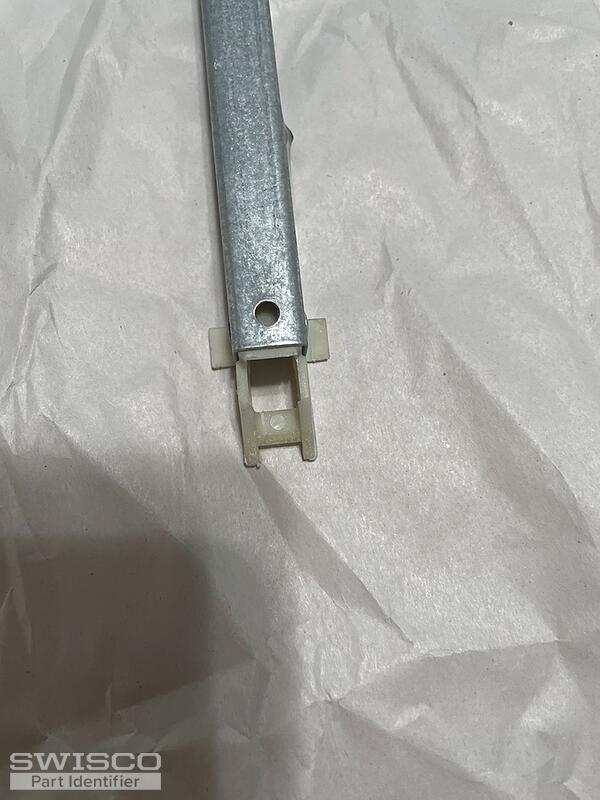

No identifying information found. If you need more photos, let me know. I look forward to hearing from you.

Barbara

5 user uploaded images
5 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi, Barbara.

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

Does your metal channel have a stamp on it? If it doesn't, you'll need to weigh your sash to determine which option you'll need. There is a chart on the S380 and S385's product page that explains how to choose your option based on the sash weight.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
Home Owner from Kissimmee,FL

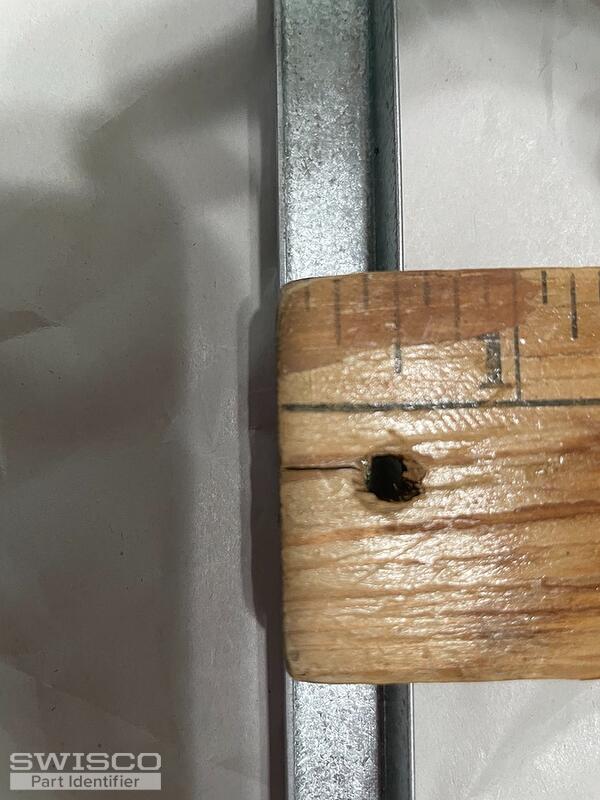

Stamp on metal channel reads "28B USB" Bottom attachment measures 1" when measured according to your diagram. Channel length (the metal part minus the shoe and the top plastic part) is 29". So, does that all mean I need to order a 29" channel balance for a 28 pound sash? In which case that translates to stamp option 2840?

Also, please clarify whether the 2840 balance channel comes with the attachments that match my photos as a single unit price.
Thank you.
Tom
Tom from SWISCO
SWISCO
Expert

Thanks for getting back to us. If your old stamp reads "28B," then you want the 2820 stamp. In this case, B = 20. The first two digits are not a direct representation of the weight of the sash, they actually only tell you the height of the visible glass. I couldn't tell you why they think you need to know that, I personally think it's just confusing, but that's the way they do it.

If you have any doubts, you can always weigh your sash on a scale and check our chart. That will tell you for sure.

Finally, all of our balances are sold fully assembled and ready to install out of the box. All pricing can be found on each product's respective store page.

Home Owner from Kissimmee,FL

Just want to say "Thank you!" for your help with obtaining the correct balances for our windows. We purchased, received, and installed them in our windows. It's great to have windows that stay up now.

Barbara
