Need 2 replacement channel balances

Question

Greetings,

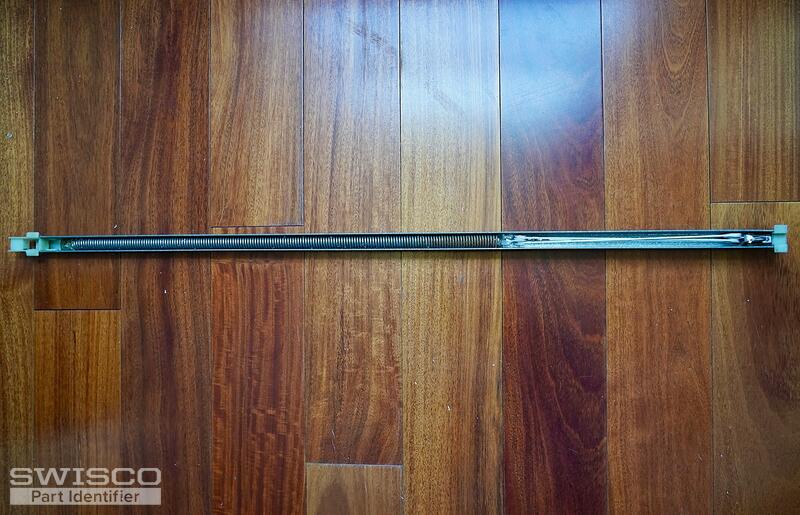

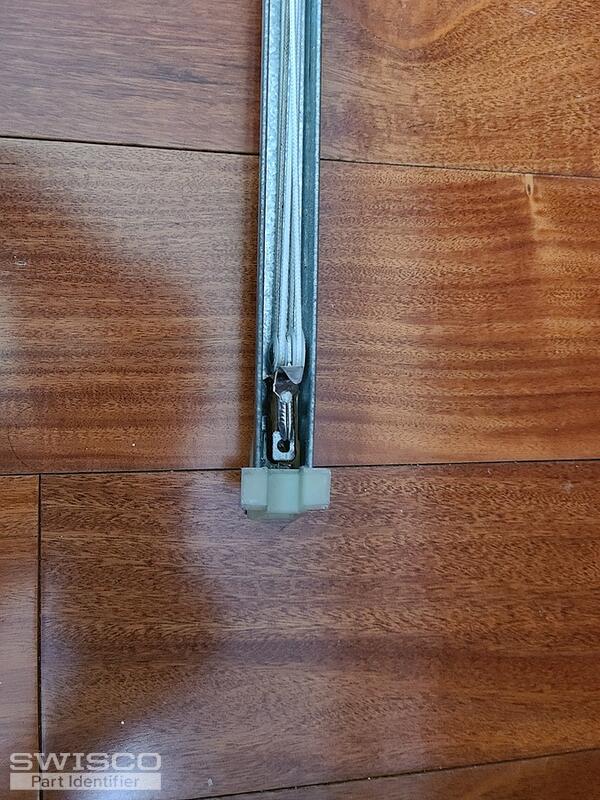

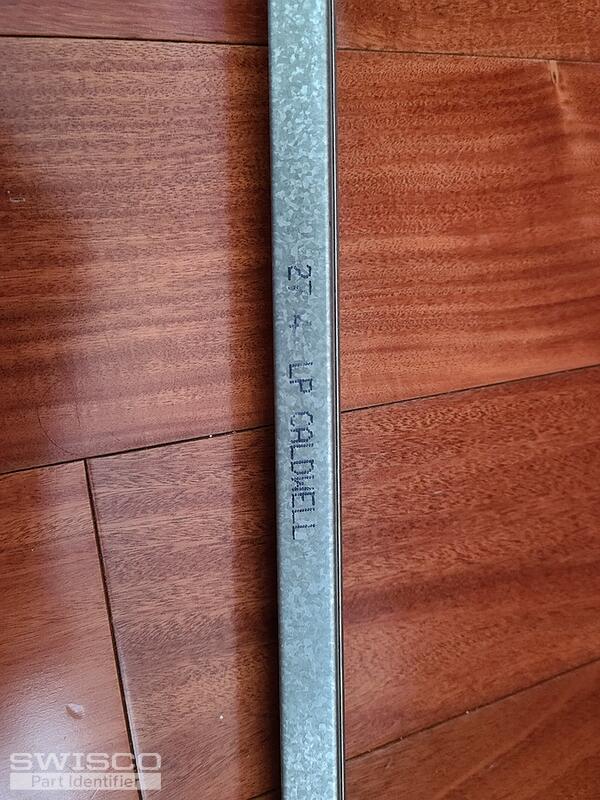

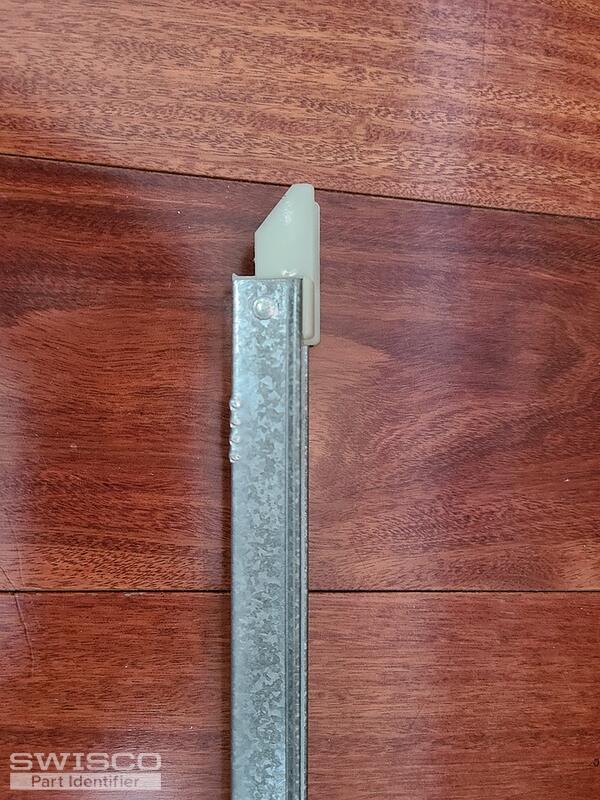

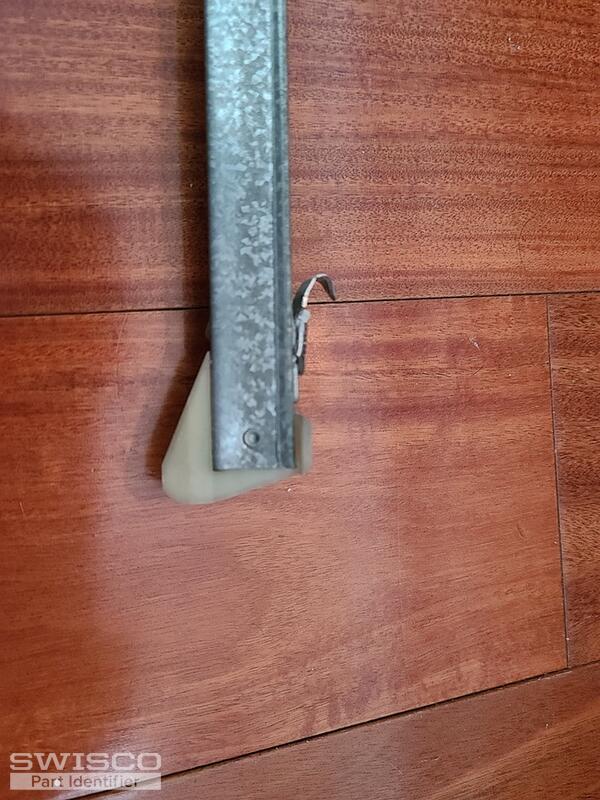

I need help in identifying the correct channel balance replacements for my window. The balances are for a non-tilt window. They are 28" long and the channel width is 1/2". The description on the balance reads 27 4 LP Caldwell. I have attached several pictures that I hope will help identify the correct part. I would like to purchase two. Many thanks.
~Susan

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either an S380-28 or S385-28 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2740 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
