Need Awning Operator

A quick learner from USA says:
September 6, 2023

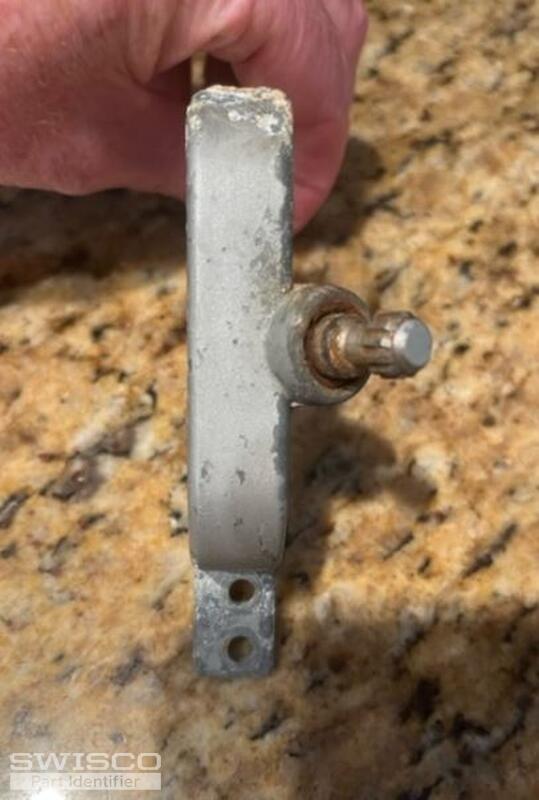

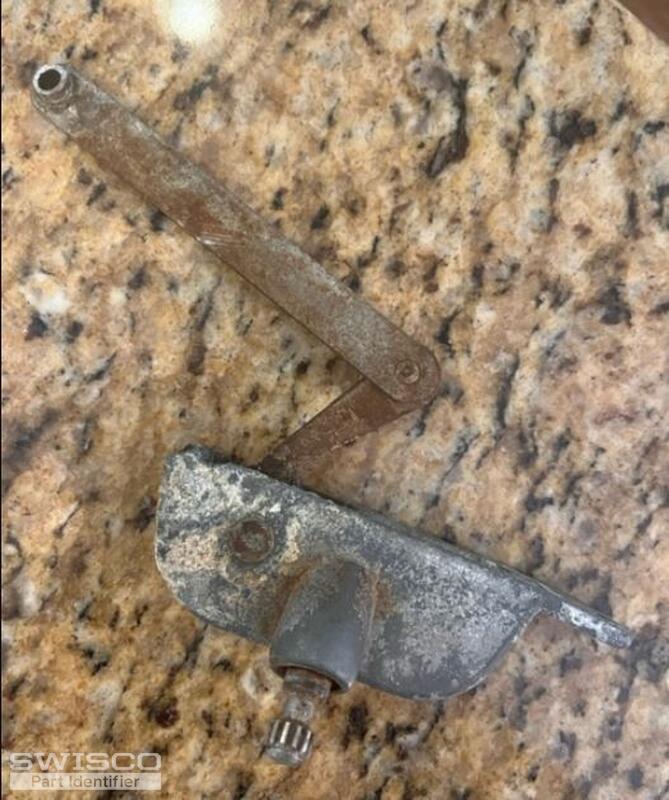

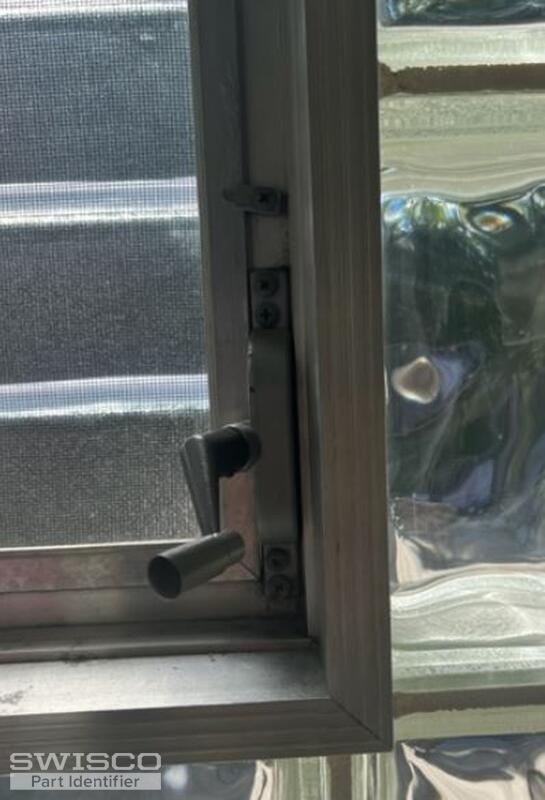

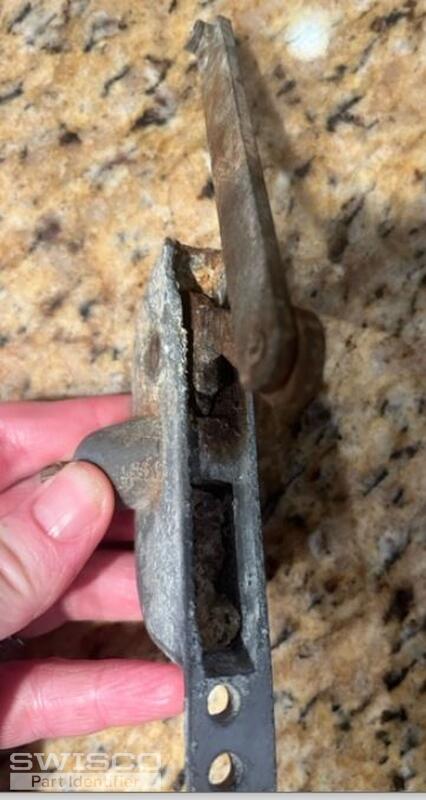

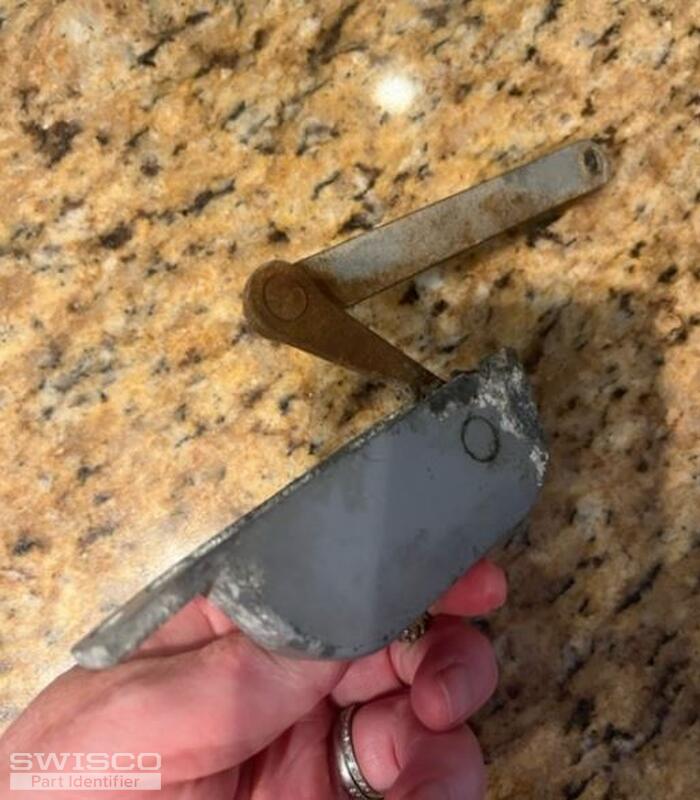

Attached are photos of the one that needs replacing. It got all corroded and the top part where 2 of the screws go broke off. The main part is about 5 1/4 inches. (If that part was still on). The longer arm is about 4 1/4

Current long arm is 4 1/2. How important is it that the arm length match exactly?
?
Thumbnail of the uploaded file named Kathleen Op1.JPG
Thumbnail of the uploaded file named Kathleen Op2.JPG
Thumbnail of the uploaded file named Kathleen Op3.JPG
Thumbnail of the uploaded file named Kathleen Op4.JPG
Thumbnail of the uploaded file named Kathleen Op5.JPG
Profile picture of Casey
Casey from SWISCO responded:
September 6, 2023

Hello,

Unfortunately, we do not carry an exact replacement for the jalousie window operator shown in your photos. The 39-346 comes with a few link arm options, including a 4-1/2" length of your part. We also offer the 39-165K , which has a link arm that you can break off to match your desired length. With that being said, these operators have some play in the gears, so a slight discrepancy in arm length would not generally be a deal breaker. Take a look at the specifications of each option, along with the related videos, and see what you think. Thank you.

Jalousie Window Crank Operator
Jalousie Window Crank Operator
39-005
$14.70
Jalousie Operator Replacement Kit
Jalousie Operator Replacement Kit
39-346
$12.44
Jalousie Window Operator Kit
Jalousie Window Operator Kit
39-165K
$12.97
39-005 How to replace a Jalousie operator
39-005 How to replace a Jalousie operator
VIDEO
WATCH >
39-346 Jalousie operator replacement kit
39-346 Jalousie operator replacement kit
VIDEO
WATCH >
39-165K Jalousie operator replacement kit
39-165K Jalousie operator replacement kit
VIDEO
WATCH >
