Need Help Identifying Part

Quick Learner from Tampa
Dec 8, 2023 7:57 am

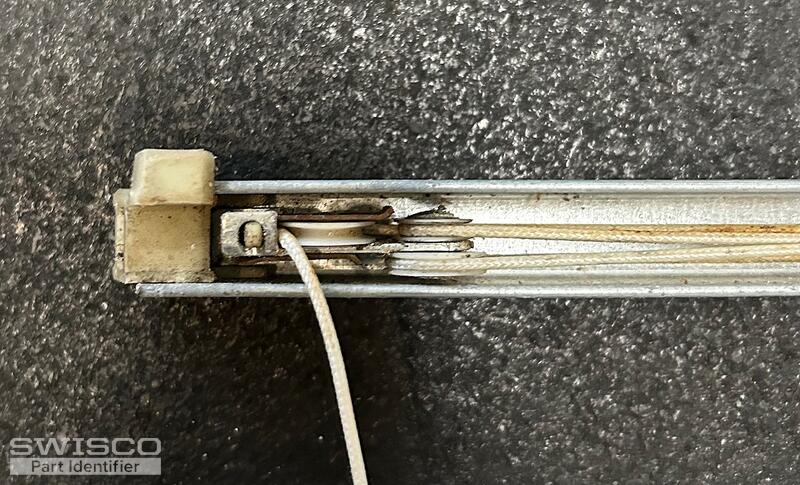

This is a 35 inch long channel for a NUAIR window. Can you please help me identify the replacement part? I can provide additional pictures if needed.

Thanks
IMG_4014 IMG_4013 IMG_4012 IMG_4003 IMG_4005
5 user uploaded images
1 Replies
Jasmine
Jasmine from SWISCO
Dec 8, 2023 11:46 am
SWISCO
EXPERT

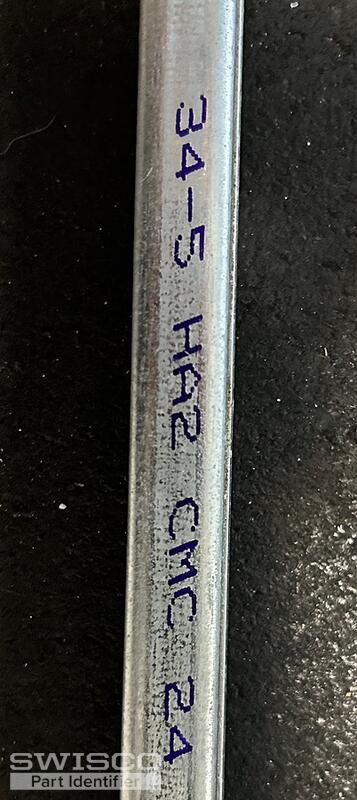

Thanks for reaching out! The balances you have could be either the S351-35 with a 1" shoe or the S390-35 with a 1-1/8" shoe. To determine which series is needed for your window, look over the dimensions from the diagram below to confirm the depth of your bottom shoe. You'll need to select the 3450 stamp.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
