Need assitance finding correct Window Tilt Latch

Home Owner from Chicago

Sep 12, 2014 2:18 pm

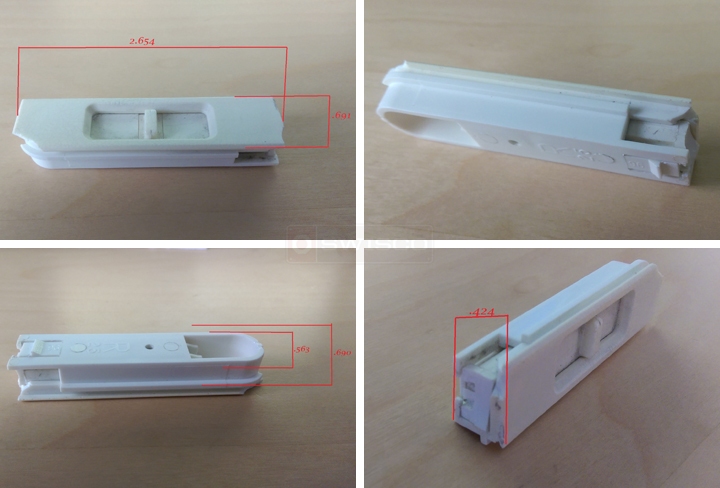

I am including dimensions to aid in the help finding the correct latch i would need.

Inside dimensions (Area that Slides into the window frame)
Width .563
Length 2.592

Outside Dimension (Area that sits on top of the window frame that is exposed)
Width .691
Length 2.654
Height .424

There is a stamped Letter and digits on the bottom of the piece R25 and L95

Thanks,

Chris

4 Replies

Tom from SWISCO

Sep 15, 2014 10:37 am

I would start by looking at our 26-243 and 26-244. Could these work for you? Make sure the shape of the "tooth" matches, as well.

Home Owner from Chicago

Sep 15, 2014 4:43 pm

When you refer to the "tooth" what are you referring to? are you speaking of the piece that sits in the slide channel or the bottom of the latch with the small keeper?

Thanks,
Chris

Tom from SWISCO

Sep 16, 2014 8:18 am

I'm talking about the pointed end that slides in and out of the latch housing. When extended, this tooth goes into the jamb track and makes sure the sash is held up. In your pictures, it is the only part of the latch that has broken off (aside from a few bits of the housing here and there, which aren't that big of a deal).
