Need help identifying parts

Home Owner from USA

Apr 18, 2023 10:49 am

Hello,

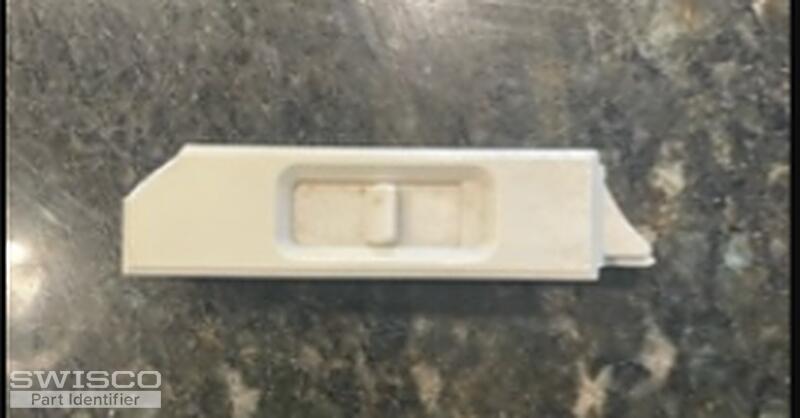

I am in need of helping identifying the replacement right and left tilt latches and pivot shoes for my single hung tilt vinyl windows.

The existing tilt latches match the dimensions of part 26-244 but the design of my latches are different. Pictures below.

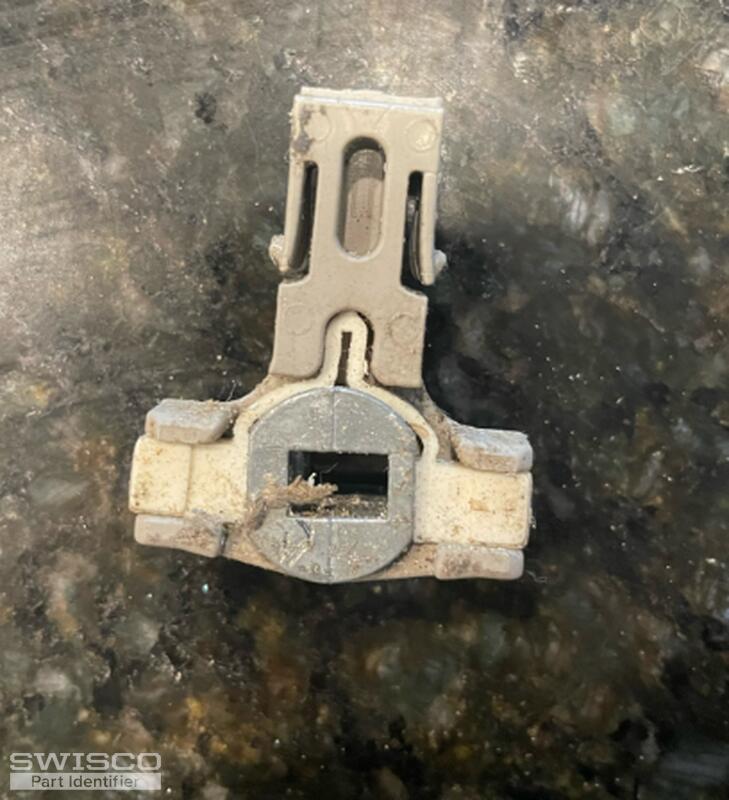

Also, for the pivot shoe, these compress the channel balance when tightened, allowing for the channel balance to function. My pivot shoe is approximately 1/2" thick and 1 5/8" tall. There are no identifying marks on my existing pivot shoes. Pictures below.

5 user uploaded images

10 Replies

Jasmine from SWISCO

Apr 20, 2023 8:47 am

Hey there, thanks for posting! Our 26-243 and 26-244 should work well as a replacement. They are the closest match we carry to the latches you have. Since the measurements do match, you should not have any issues with installation.

Your pivot shoe appears to be the 15-195B, 1-1/4" open cam, T-Lock pivot shoe. Look over the dimensions and compare them to your existing shoe to determine if these are the right fit.

Dimensions for 15-195B

Home Owner from USA

May 25, 2023 2:38 pm

Hello.

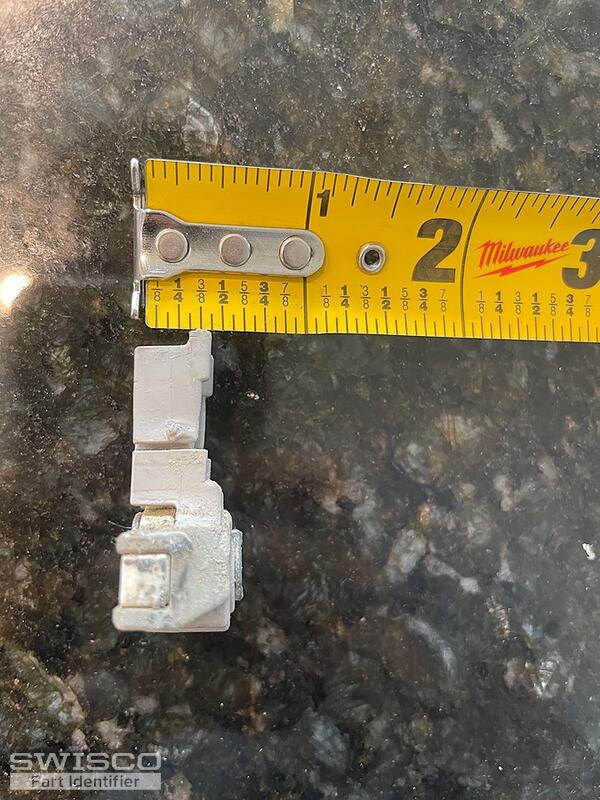

The 15-195 t lock pivot shoe that was suggested is too thick at 1/2". The existing pivot Shoes I have are 3/8"

1 user uploaded image

Jasmine from SWISCO

May 25, 2023 3:57 pm

From what I can see in the photo, the measuring tape does not start at the thickest part of the top of the shoe. Given that, it does appear that the measurement for that space is 1/2". We do not carry any shoes in a 3/8" measurement in that area.

I would suggest double checking the measurement and if you are still getting the same measurement, the next best suggestion would be to replace the entire balance.

Home Owner from USA

May 25, 2023 5:00 pm

Thank you.

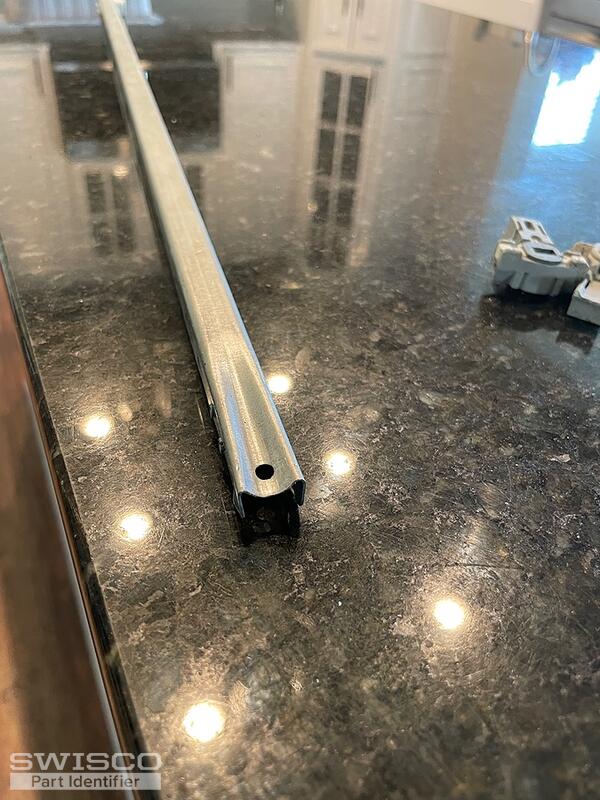

Can you help me identify the proper channel balance from the attached pictures?

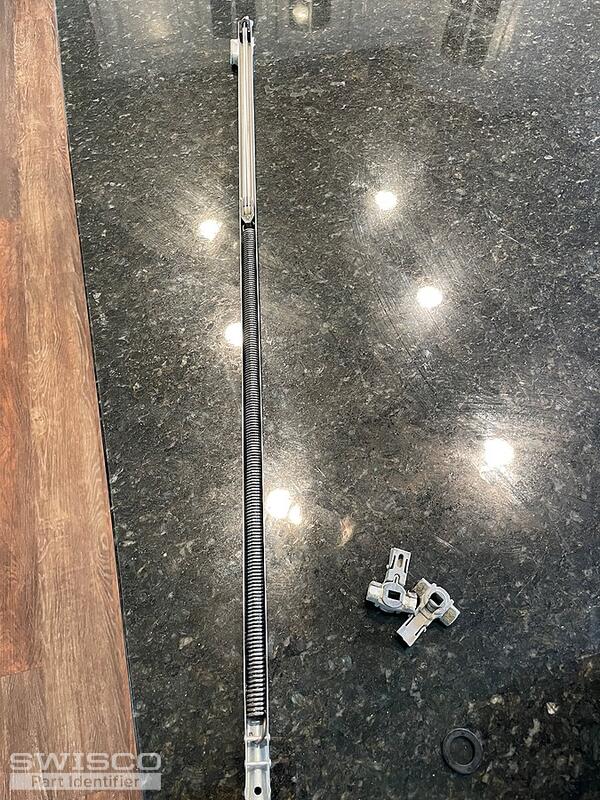

It has no markings on it and it is approximately 30" long with a spring and string/pulley system in the rear.

The indentation in the bottom of the balance makes it challenging for the 1/2" pivot shoe to fit.

2 user uploaded images

Jasmine from SWISCO

May 26, 2023 8:47 am

Yes, I understand. Our shoes are not compatible with the type of balance channel you have, unfortunately.

I'll need to know the length of the metal channel as well as stamp to confirm the correct replacement.

Home Owner from USA

May 26, 2023 9:16 am

Hi jasmine.

Thank you.

The length of the channel is 30 inches.

The only stamp I could find says "30B"

Jasmine from SWISCO

May 26, 2023 11:38 am

Thanks for confirming. You'll need the S795-30 channel balance with a 30B stamp. This comes equipped with the 15-195 closed cam shoe, so you'll need to purchase the 15-195B separately and then change them out once you've received the balances.

Also, you'll need to confirm whether your balances have a screw tab or a hook on the top of the balance. If you have the screw tab, you can purchase the balances, as is (with the exception of the shoe, of course).

Regarding the hook, you may be able to use the 26-200 balance screw plug along with the 33-016 screw.

Although, if the space at the top of the window is not square in shape, you'll need to let me know. This means that these will need to be custom balances and I'll need to have an order link made up for you. The good news is, we can attach them in our warehouse so the turn around time is fairly quick.

Home Owner from USA

May 26, 2023 11:56 am

Thank you!

Quick question, what is the difference between open and closed cam shoe?

Jasmine from SWISCO

May 26, 2023 1:44 pm

The metal cam on the back of the shoe has an open space, like the one shown in your photo.

The cam on the back of the closed cam shoe is completely solid.
