Need help replacing these four keys/corners for screen frame

Handy Person from Chicagoland

Oct 30, 2023 11:19 pm

Can't seem to find a replacement for this window screen frame corner.

1.7 inches in side length.
A bit less than 3/16 inches in "height"
A bit less than 7/16 inches in "thickness"

Attached pictures with markings.

3 user uploaded images

3 Replies

+ Add a Comment

Emily from SWISCO

Nov 1, 2023 10:07 am

EXPERT

Hi there!

Unfortunately, this nylon double-leg corner is no longer available. What you need to do is use the 95-002 corner key to hold the frame together while you install it into the channel closest to the screen groove. However, you will also need one leg of your existing nylon corner, or one leg of the 95-002 , to hold your slide latches on the bottom channel of the screen frame. Take a look and see what you think.

Quick Learner from Chicagoland

Nov 2, 2023 11:08 am

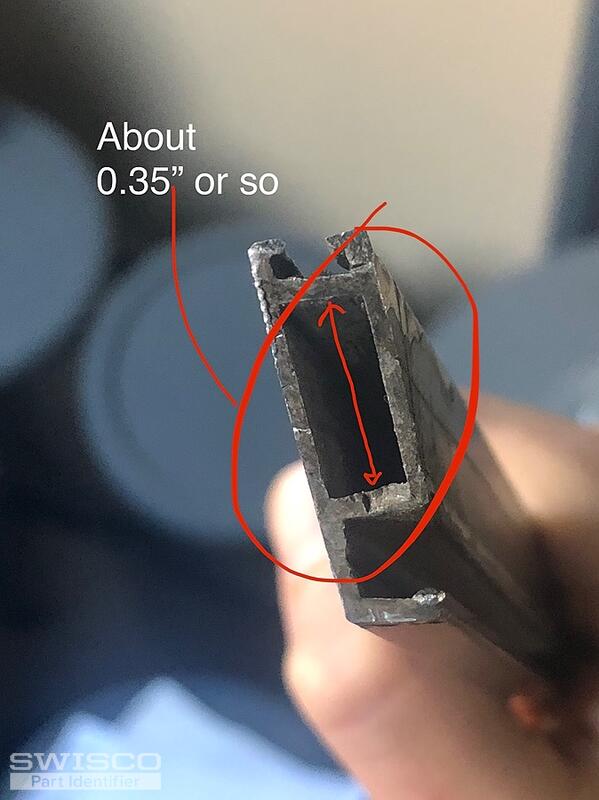

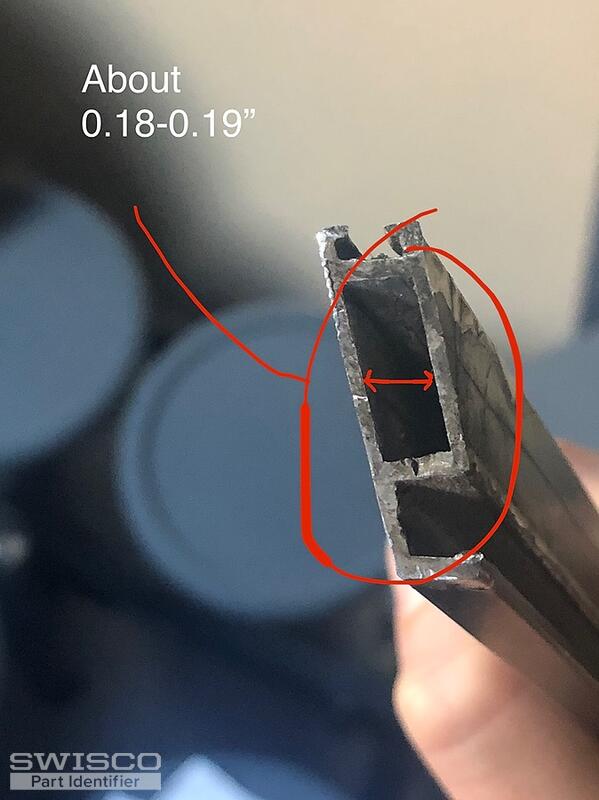

I'm not sure there are any "bottom" channels on the frame. It's a simple, one opening, normal frame. I've attached a picture. Any other way I can do it with one corner piece and not use 2 per corner?

2 user uploaded images

Dave Sr. from SWISCO

Nov 3, 2023 8:05 am

EXPERT

After taking a look at the photo showing the inside of your screen frame, I don't think the 95-002 will work for you. Take a look at the 95-054 and the 95-129 corners instead. These look closer to the corner you need to fit your frame but review the specifications and see what you think.
