Need new channel balances for 2 Milgard single hung windows

Home Owner from San Marcos CA
Apr 29, 2023 11:44 am

Hi, We have two single hung non tilt Milgard windows that have broken channel balances.

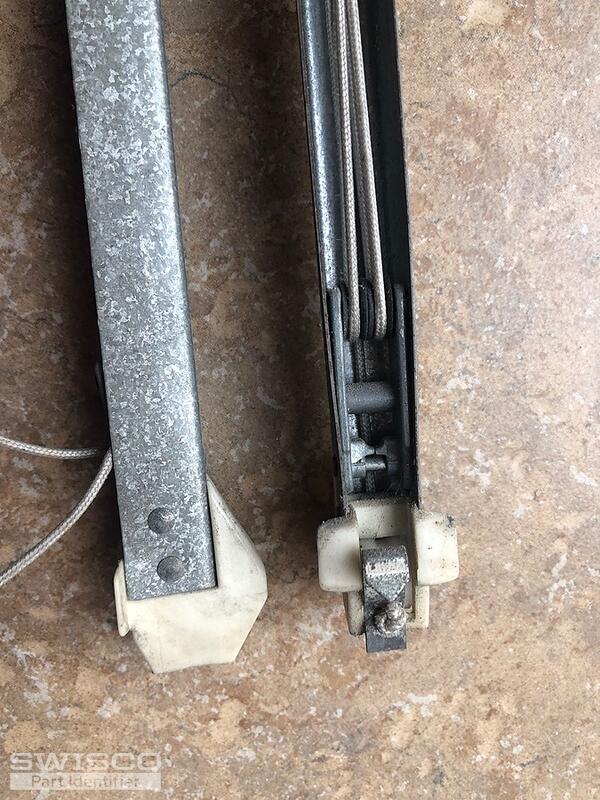

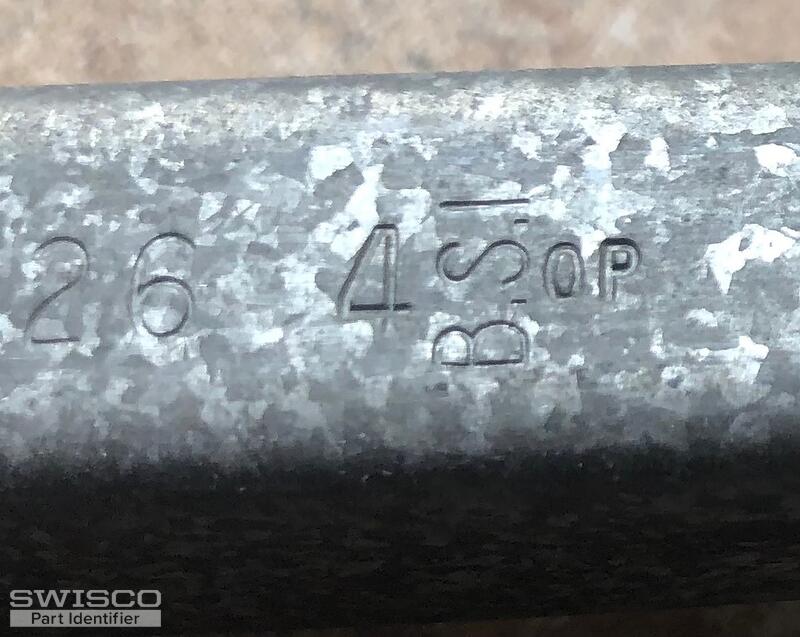

The larger window balances say 26 5 BSI. The smaller window balances say 26 4 BSI. I can't find the correct replacements, if you can please help. Pictures attached. We are selling our home next week and need to replace these asap. Thanks, Cherylyn

BF4F072D-C844-484C-A7B1-CD65F4BF8E18 E82CB1B4-9A60-4638-9BD2-DB785BE29139 2408617A-8B1B-47B4-9ED9-058B4EC5054D B4B19B43-99B1-408E-9ADD-DA2F4D3354D1 4E42C130-8916-4A58-B73E-294E9748CD0F
5 user uploaded images
3 Replies
Emily
Emily from SWISCO
May 1, 2023 12:16 pm
SWISCO
EXPERT

Hi there, Cherylyn.

Thank you for reaching out to us. We can help supply the balances shown here but it will have to be a custom order due to its configuration. What I mean by that is the pulley wheel built into the bottom fitting itself, as well as an extended cord travel and a metal channel length ending in 5/8". I will just need a bit more information to help get this moving for you.

Can you confirm if the metal hook in your last photo is our 62-106 or 62-105? They're not interchangeable so it is very important we know which one you have. Can you also tell me how many balances you're looking to order? Finally, can you confirm which stamped balance uses which hook?

I also wanted to mention that it's a bit odd for two windows of the same make to use different configurations, even if they are different sizes. However, if they've worked all this time then I see no reason to change.

Home Owner from San Marcos CA
May 1, 2023 12:48 pm
Thank you, The 26 4 BSI has 62-106. The 26 5 BSI has 62- 108. These are for two windows, so I would need two 26 4 BSI for one window and two 26 5 BSI for the other larger window. I don't know why they are different.
Emily
Emily from SWISCO
May 2, 2023 3:49 pm
SWISCO
EXPERT

Thank you kindly for confirming that for me. What I will do now is email you a purchase link and price quote that you can use to place an order on our website.

If you have any questions just let us know!
