Need replacement Quick tilt coil assembly

Home Owner from Palmyra, NJ

Jun 13, 2022 9:26 am

Hello,

I'm not sure what you'd call this but it's the part that controls the window from sliding down and keeps it at a desired level. Has a strap that connected to the bottom go the window pane. This windows has them on both sides and both are broken. I hope I'm being clear. Hopefully you have a replacement part for this.

Thank You... Questions feel free to reach out. Rick

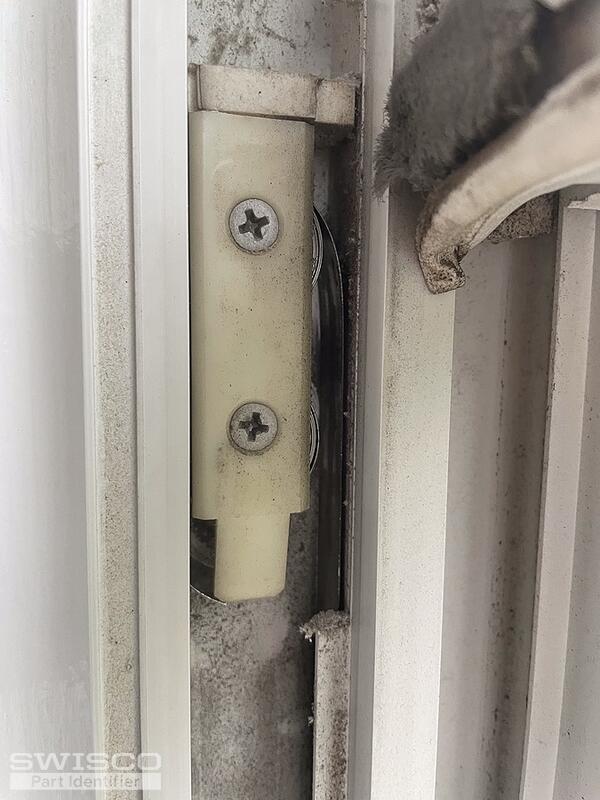

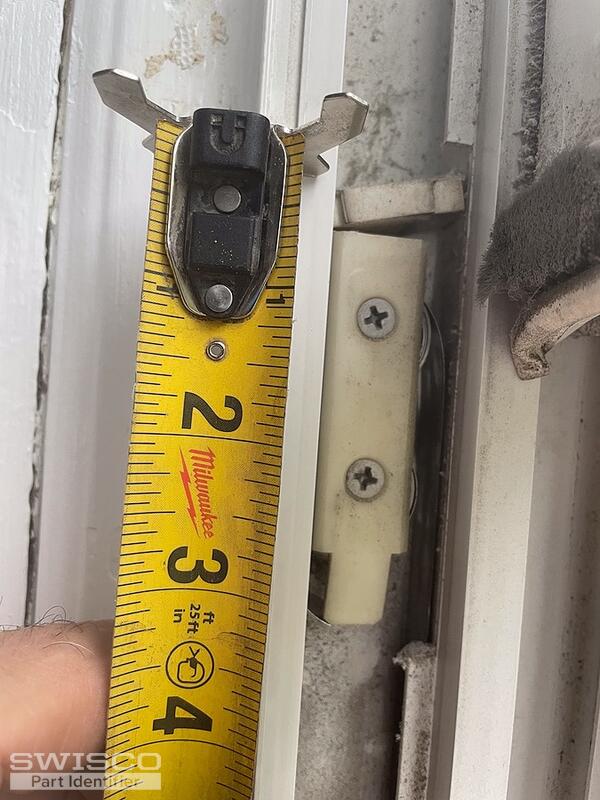

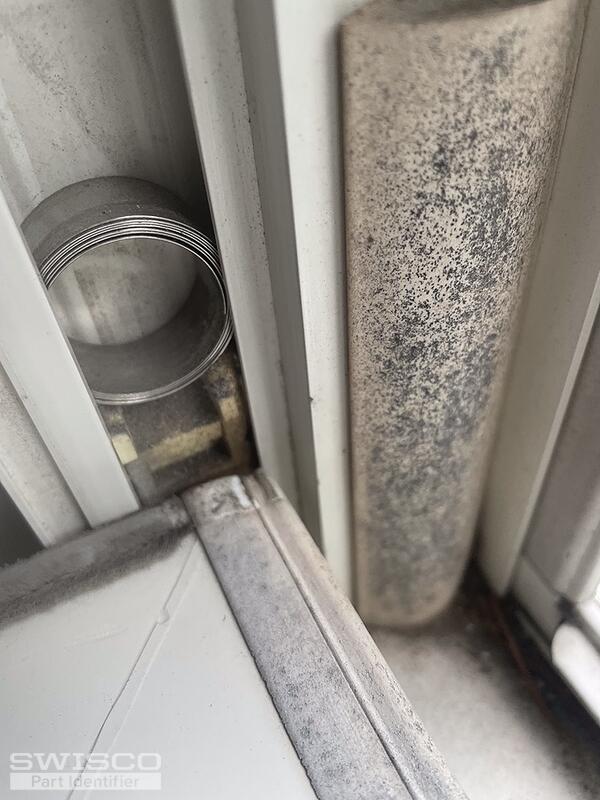

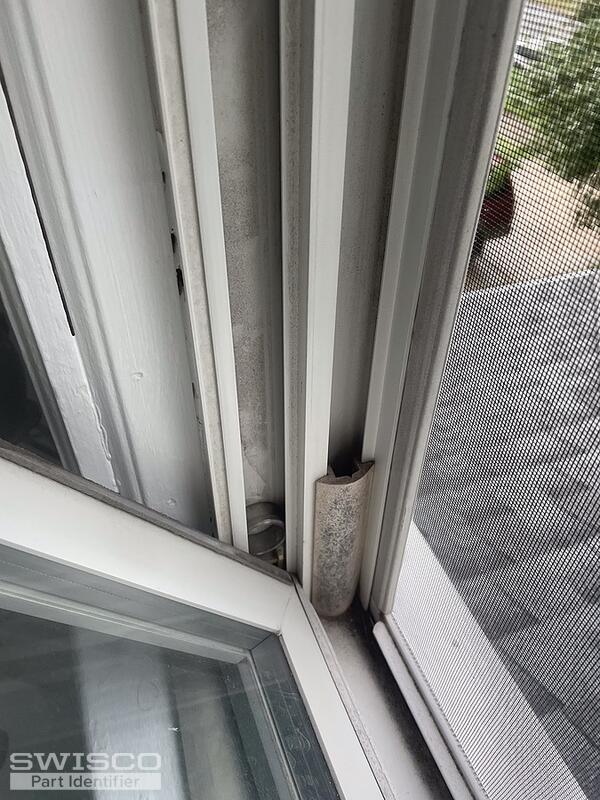

4 user uploaded images

6 Replies

Casey from SWISCO

Jun 16, 2022 10:03 am

Hello,

We'd be happy to help but we would need to see your pivot shoe and coils fully removed from the window to confirm the correct replacement. We've related a few videos on this page to help you through the process. Thank you!

Home Owner from Palmyra, NJ

Jun 20, 2022 8:01 am

Here are the updated photos. Please let me know if you need ant others. Thank You... Rick

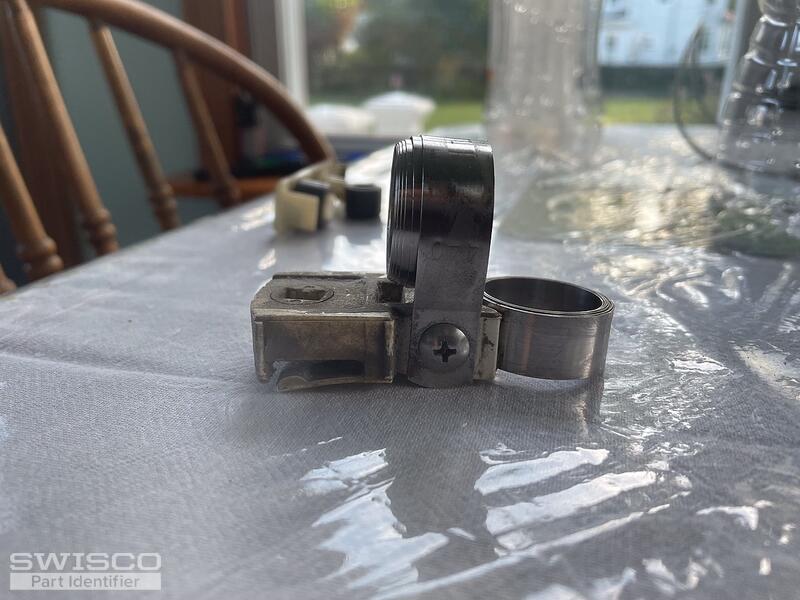

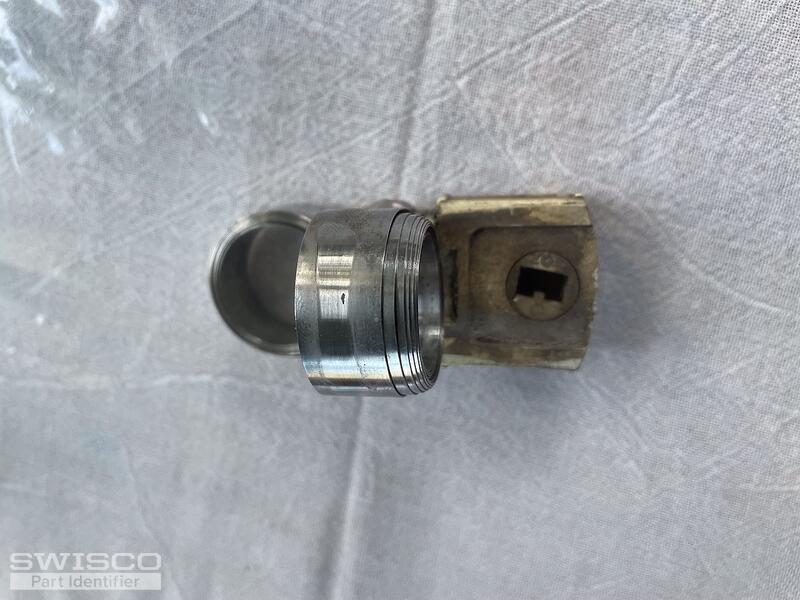

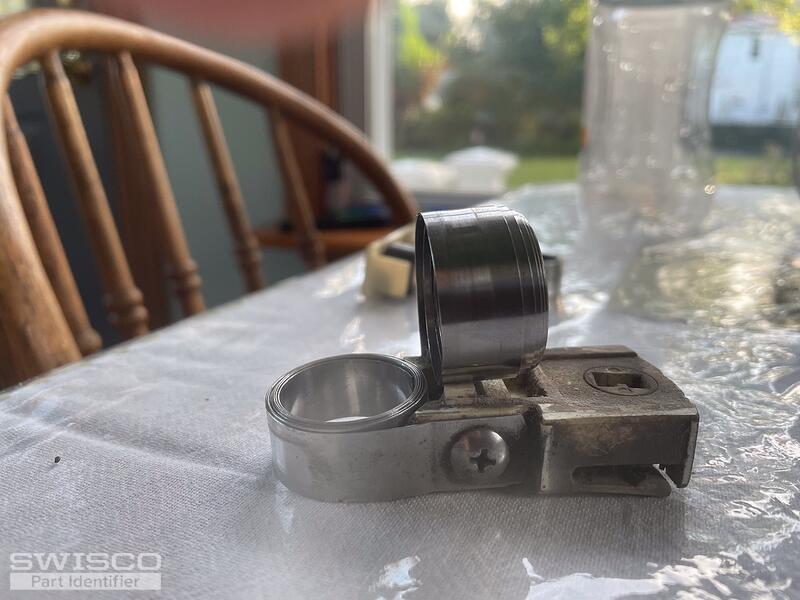

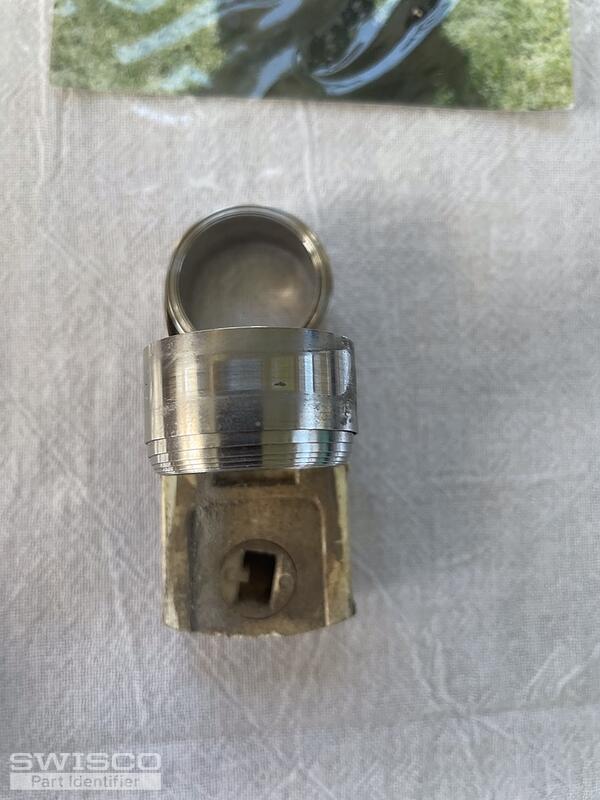

4 user uploaded images

Casey from SWISCO

Jun 20, 2022 8:50 am

Your old pivot shoe has been discontinued but I believe our 15-180 will replace it. This shoe is compatible with the S190 coil springs and other related items on both product pages. Take a look and thanks for posting!

Home Owner from Palmyra, NJ

Jun 20, 2022 9:01 am

Thank You. Would I need to purchase two coils? Both sides seem to be broken so would that mean 4 coils? Appreciate the assistance.

Thank You

Rick

Casey from SWISCO

Jun 20, 2022 11:23 am

I see that the coil in your photo has 440 printed on it. If both sides of the window use two coils with the same 440 stamp, then you would need four of the S190-440 coil springs.
