Need to identify parts

A quick learner from Chula Vista CA says:
Hi,

I need to replace the coils and tilt latches on a single hung window. I hope you can help me identify which parts to order.

Anlin
Series: Catalina SH
H-R20-48x96
White plastic is stamped 6+6+6

Thanks,
John
Thumbnail of the uploaded file named 83FDDFE8-7688-44DF-8D39-06D10FCAC741.jpeg
Thumbnail of the uploaded file named 0A9DF9A8-8BC5-4DAD-B99E-99D8E4709FA2.jpeg
Thumbnail of the uploaded file named 1600C074-5E9A-496D-AF91-8E06E328F14D.jpeg

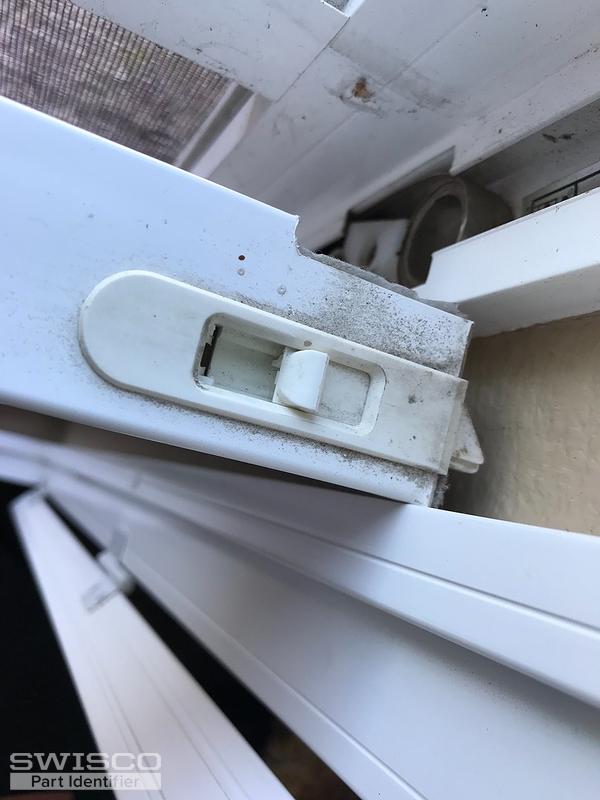

Thumbnail of the uploaded file named 23EDA321-AE1B-447F-8D3A-8CCF075DA420.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Hi John. I'm confident we can replace these parts for you, but I'm afraid we need more information to be able to help.

  • First, can you remove the pivot shoe, or the plastic block with the metal cam, from the bottom of the window track and show us a picture of it? The identity of the pivot shoe determines the identity of the coil balances you need.
  • Also, can you confirm there are no stamps on the coil balances themselves? If there any, can you show us?
  • Finally, for your tilt latch, can you remove one from the window and show it to us from different angles? From there, we'll do our best to match everything you need. Thanks.

A quick learner from Chula Vista CA says:
I don't see any stamps on the coils not pivot shoe.

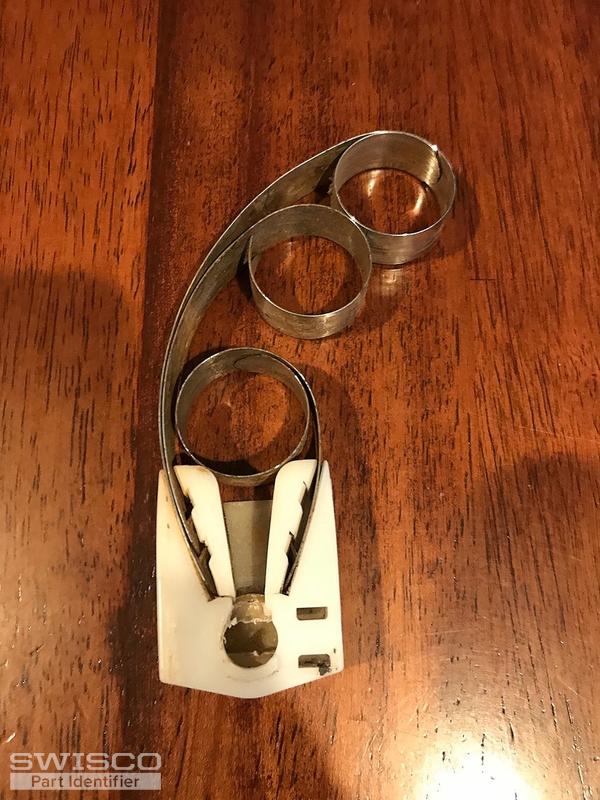

Thumbnail of the uploaded file named 52BB8F06-F050-49E0-BF42-DA24A02B7D1F.jpeg

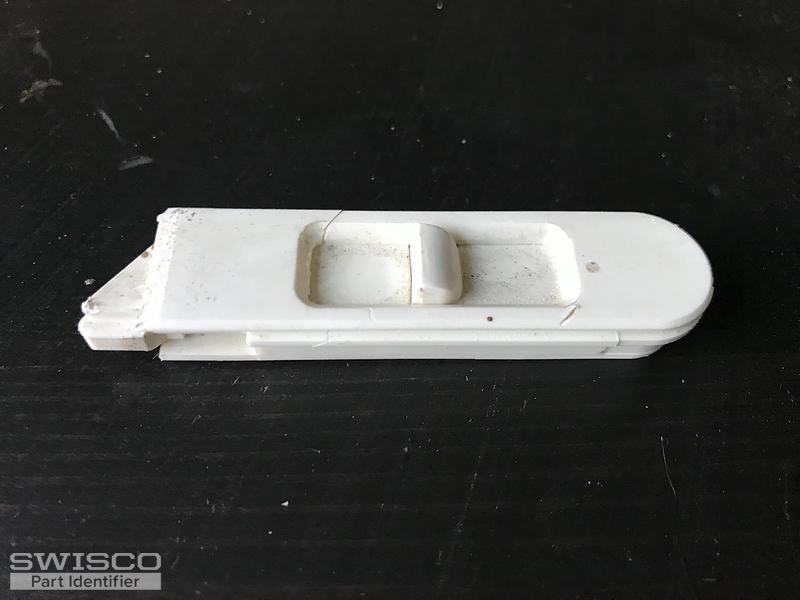

Thumbnail of the uploaded file named 9935820D-A8DE-4AE8-812F-2EA50511D65D.jpeg

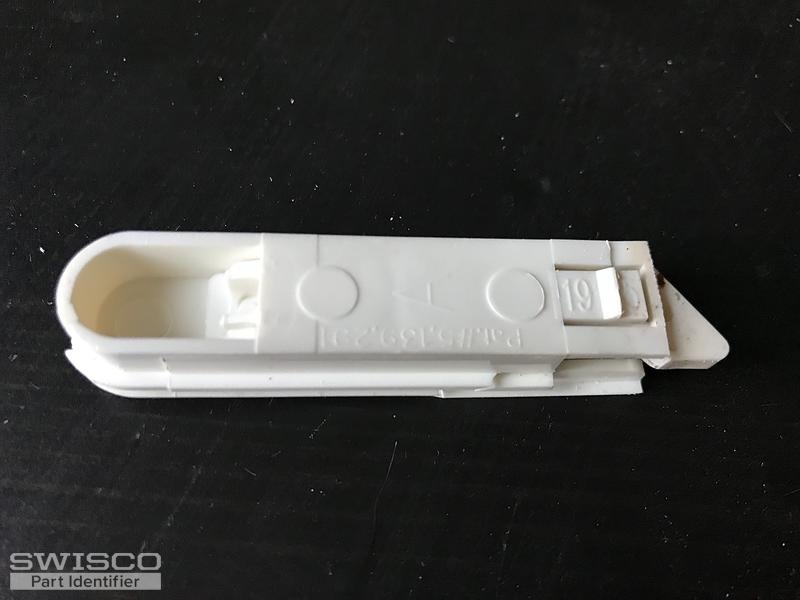

Thumbnail of the uploaded file named 8D61D339-67C5-4DC1-BA62-6A6ADA42F09B.jpeg

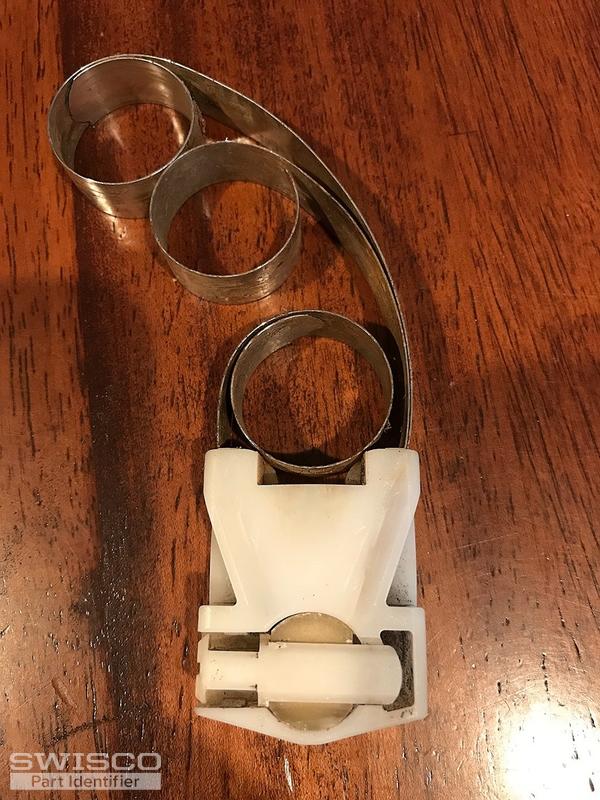

Thumbnail of the uploaded file named 0BF6CBAA-48AE-4615-BA31-FE414A56EE12.jpeg

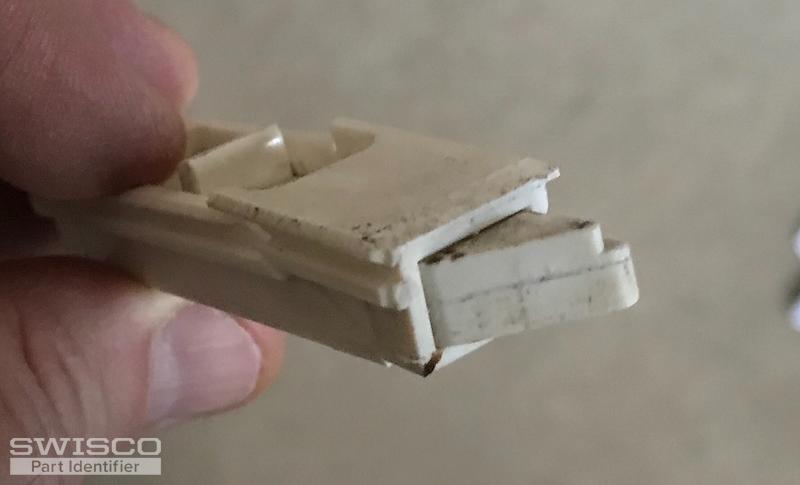

Thumbnail of the uploaded file named 4AA09EF1-C2CA-4052-AB83-CA2C8110FE0B.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Thank you! So, I believe you need an S140-18 coil balance. The reason I think it's the 18 is because that's the sum of the numbers stamped on your old cover. I have to admit, 6+6+6 is a pretty funny way to stamp a balance like this. It's not common at all, but it makes sense and I think the 18 is what you want.

As for the tilt latch, consider our 26-243 and 26-244 . Look over our dimensions to confirm how well they match up, but I think they'll be pretty close.
