Need 2 rollers and one door hardware. Roller box is 1 1/4 inch by 2 1/4 inch. Wheel is 1 1/4 inch across.

The RV is a park model manufactured in 1991. The sliding glass door was manufactured by General Aluminum Products, Inc. In Charlotte, Michigan.

3 user uploaded images

4 Replies

Casey from SWISCO

Sep 19, 2023 1:18 pm

Hello,

We'd be happy to look into this for you but it looks like your photos are only showing the inner housing of the roller. We would need to see the outer housing as well, which may still be inside the door frame, to compare to our inventory. Thank you!

Quick Learner from USA

Sep 20, 2023 9:02 am

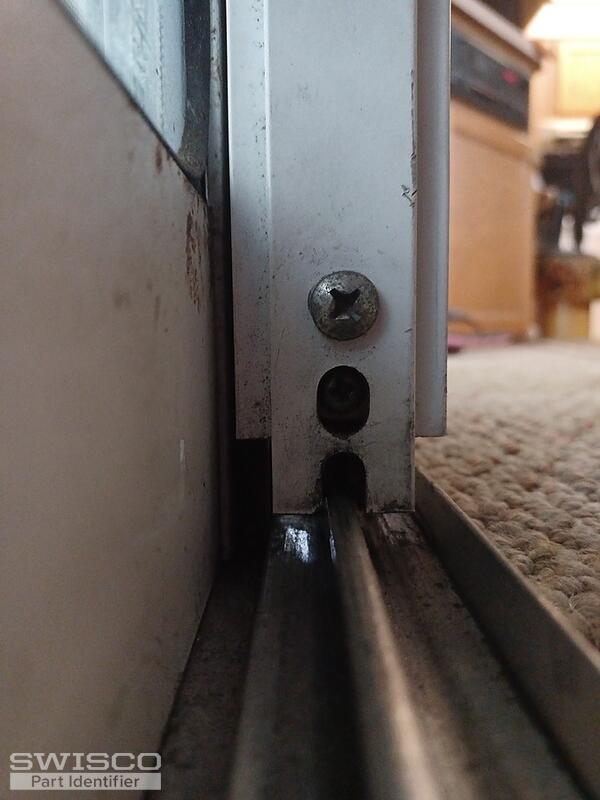

There is no housing. There are 2 screws. One holds roller in place the other levels the door. There were rivets holding it on the sides.

1 user uploaded image

Dave Sr. from SWISCO

Sep 20, 2023 11:47 am

Based on what is shown in your photos, I agree with Casey that you would need to remove the complete roller from the bottom rail of your door to confirm the correct replacement. The part you are showing us is just the inside part of the roller chasse.

Looking at your handle, I believe that you have the 82-003, which was used on "WT" patio doors. Our records indicate that "WT" doors used the 81-020 roller with the 1-1/2" diameter wheel. However, you mentioned that your wheel is 1-1/4" in diameter. Once you are able to remove the outer housing, we'd be happy to confirm if this would be our best replacement option. Take a look at the suggested parts, along with the related videos to assist you.

Alternate image for 82-003

Alternate image for 81-020
