Old block and tackle replacement parts

Question

Hi,

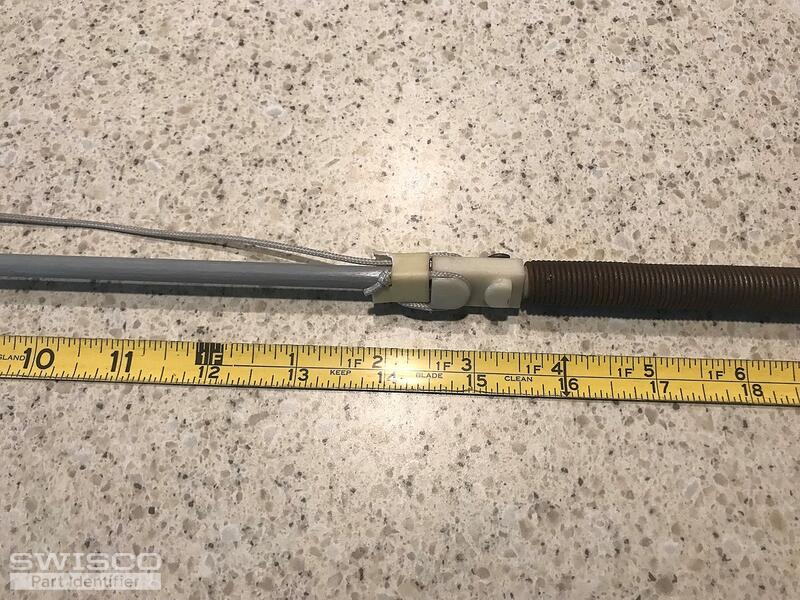

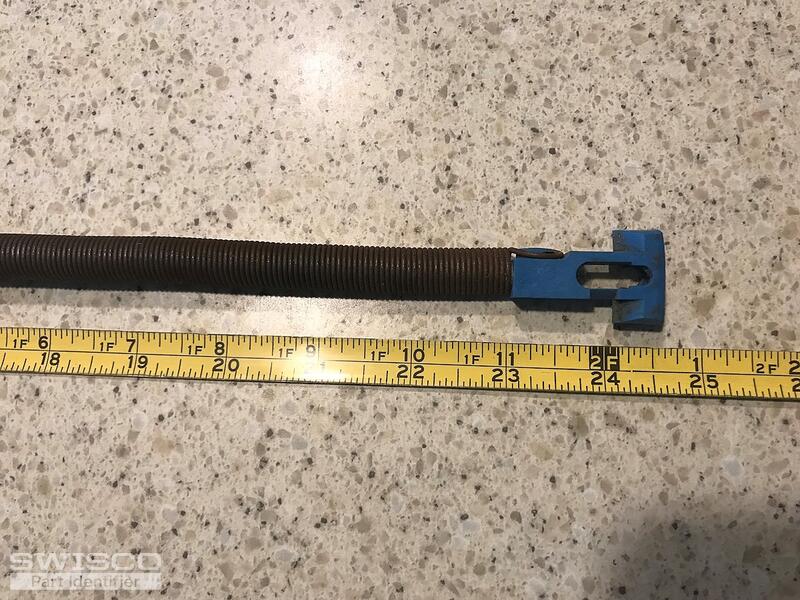

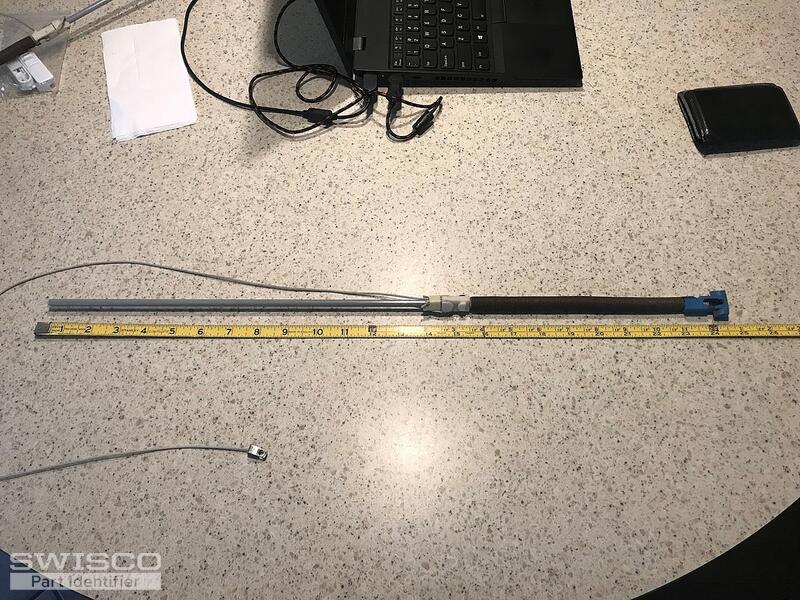

I would like to replace my old black and tackle rod balance. Reading previous posts, it appears as if I'll need part No. S795. The balance is 24.5" long. It has a 1" shoe. Pivot bars are yet to be measured, but will do that today. Could you please verify replacement parts for me?
Thank you,
Peter

Tom · Accepted Answer

Thanks for posting, Peter. The Series 795 should work for you, but only if the spring is 1/2" in diameter. As long as it is then you should be fine.

The process of converting our modern channel balance to work in your window is a little involved, though. I recommend watching the video below for a detailed, step-by-step walkthrough of exactly what must be done.
