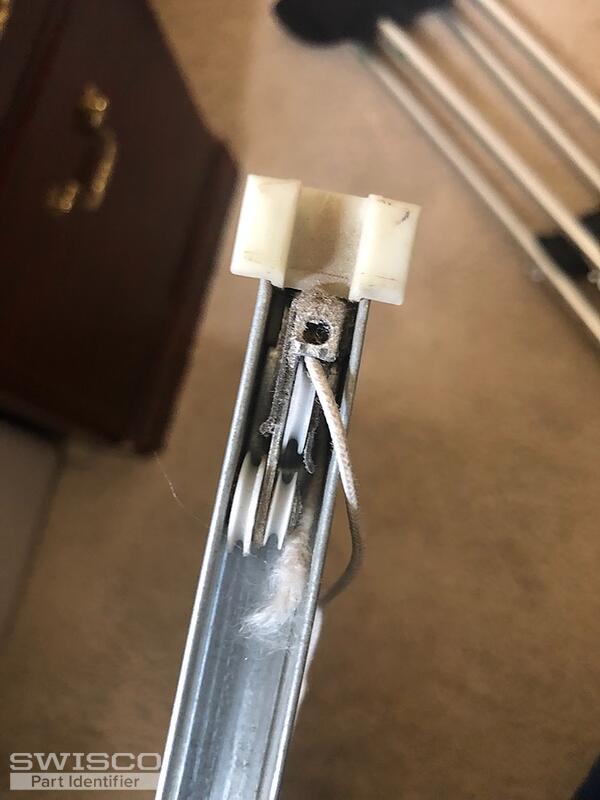

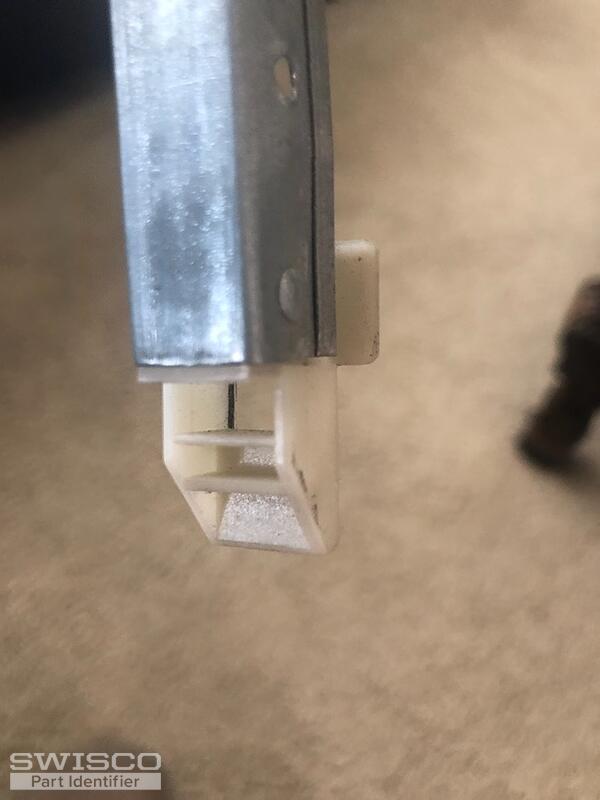

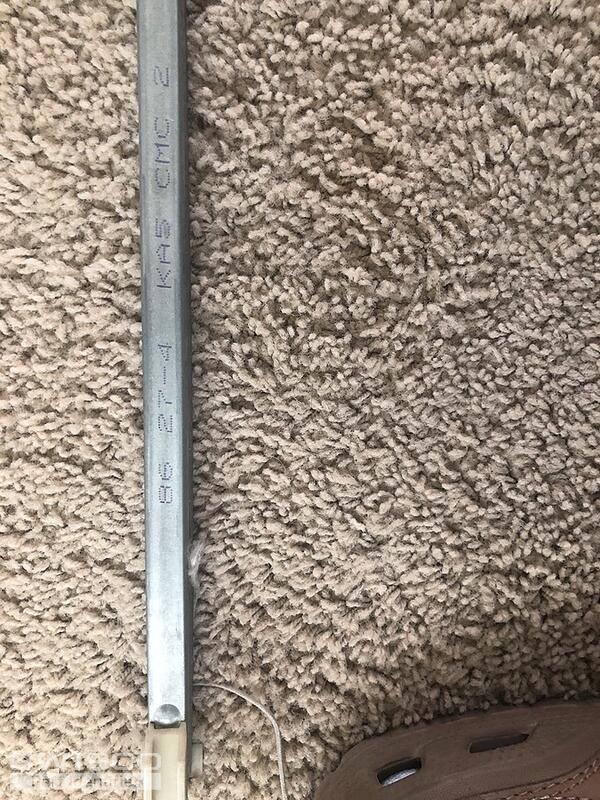

Hello. I need 4 new Channel Balancers. I've attached 3 pictures of my broken Channel Balance. Numbers on my balance: 27-4 KA5 CMC 2. The shoe measures 1 ".
Kind Regards,
Otto
Order new Channel Balancers
Home Owner from Colorado Springs, CO
Jul 12, 2021 4:36 pm
3 user uploaded images
5 Replies
Tom from SWISCO
Jul 19, 2021 11:55 am
Hello, Otto. I think we can supply this balance, but I'm not quite sure what Series this is. The design of the shoe in your third photo isn't standard. Before I suggest anything, would it be possible to see its underside? I want to see how it connects to the metal channel and perhaps even the pulley system, if that's how it works.
Can you also tell me the depth? that would be the "heel-to-toe" measurement.
Home Owner from Colorado Springs, CO
Jul 19, 2021 6:55 pm

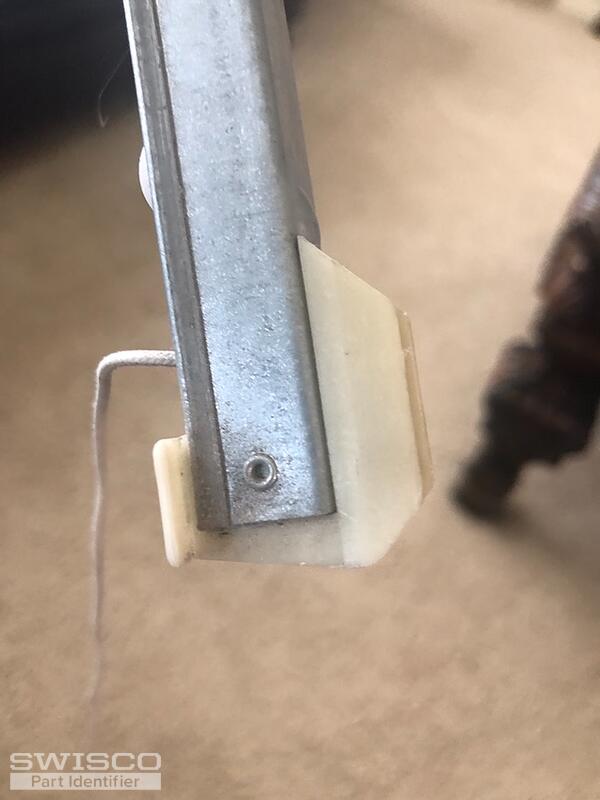

Tom, the Heel-to-Toe measures 1 3/32". Hope the pic is clear.
1 user uploaded image
Tom from SWISCO
Jul 20, 2021 8:52 am
Thank you! That is a huge help, and exactly what I wanted. Although the design of the bottom fitting is a little different, I believe you can use our S385-28 as a replacement. The shoe is the same size and the function seems to be exactly the same.
Please let me know if you had any questions!
Home Owner from Colorado Springs, CO
Jul 20, 2021 11:30 am
Thanks Tom! I appreciate the help.
