PPG Hercules K Replacement handle

Quick Learner from Colorado

Jan 25, 2015 5:36 pm

I have a Storm Door PPG Hercules K Storm Door with a broken handle. This is the storm door to my front door.
Do you know the replacement part for the handle?
Here is what is on the door

PPG Herculite K
Trempe tempered
CAN/cGSB-12-1M
BS 6206-1981-A
15CFR1201 CH
ANSI Z-97-1-1984 1/8U
SGCC-1605 1302

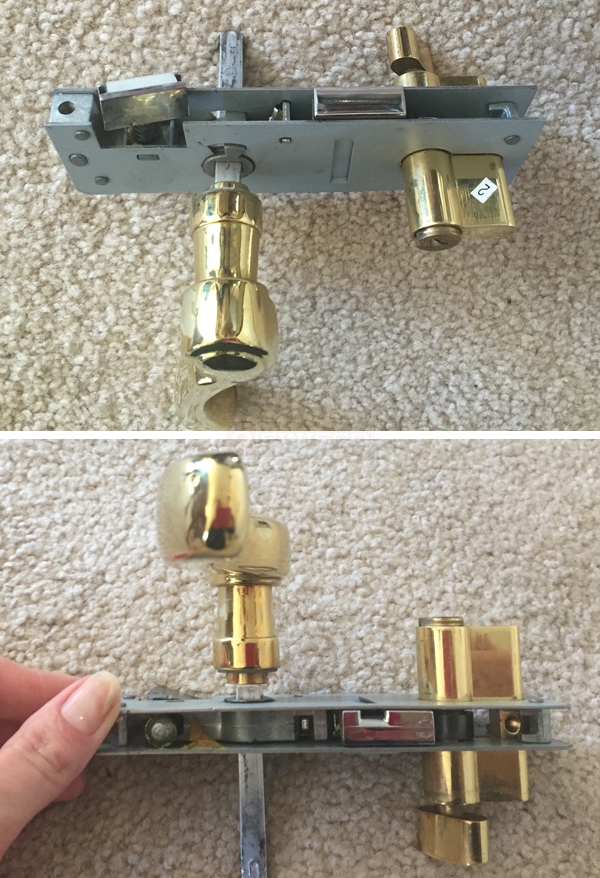

User submitted photos of storm door hardware.

4 Replies

Dave Sr. from SWISCO

Jan 28, 2015 11:46 am

Thank you for posting. For the storm door handle set, I would like you to confirm the back set dimension. I'm thinking it might be our 40-193 but I just want to confirm. As for the other hardware you need, I'm afraid it is discontinued and no longer available. We have no known substitutes at this time.

Quick Learner from colorado

Jan 28, 2015 12:06 pm

Thank you for responding. I am not sure what I am supposed to measure. Can you be more specific. The picture looks different than what I have.
Also, what other hardware are you referring to. DOes this mean I will need to replace the door all together?

Dave Sr. from SWISCO

Jan 28, 2015 3:28 pm

Sure! Check out the image below, which shows the mortise lock that comes with the 40-193 set. The measurement we need is the one labelled as 7/8". What is it on your own lock?

Profile view of 40-193
