Parts for Spiral Balance and Tilt Window

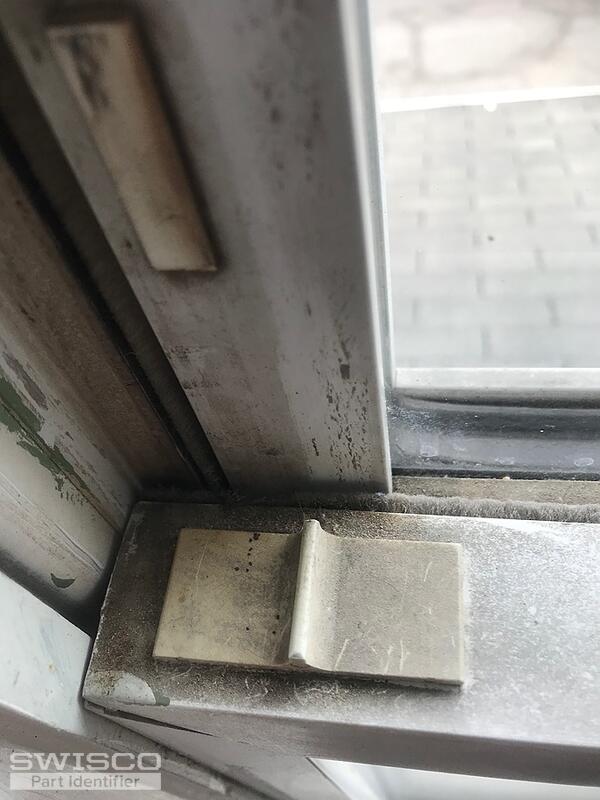

Thanks for reaching out! I believe the tilt lock you are referring to is what we we call tilt latches. I cannot identify the proper replacement hardware without seeing a photo of your existing latches, unfortunately. Is there any chance we can see the old ones? Are they all missing?

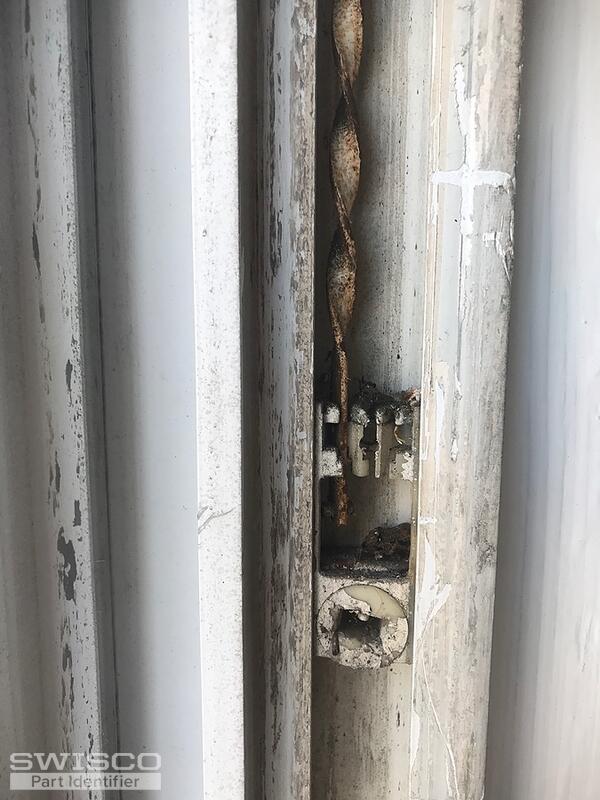

In regard to your spiral balances, based on the measurements  I recommend our S600-26, 5/8" Spiral Balance. This also shows as 9/16", which is close to the 1/2" measurement you are seeing. You'll need to select the blue tip.

Your pivot shoe looks like it could be our 15-046 but you'll need to confirm the dimensions to determine that this pivot shoe is the right fit for you.

Alternate image for 15-046

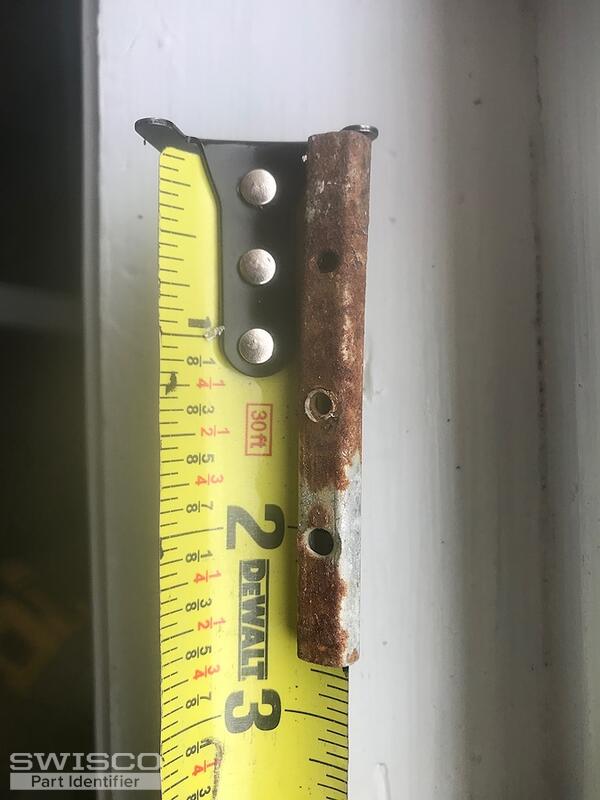

The piece that inserts into the shoe is the pivot bar. I recommend starting with comparing the 26-040 to your existing hardware. You'll especially want to verify the screw hole position. Yours might be a bit further up. If it is, I'm confident we'll have a match, we'll just need to know the hole position measurement.

Alternate image for 26-040

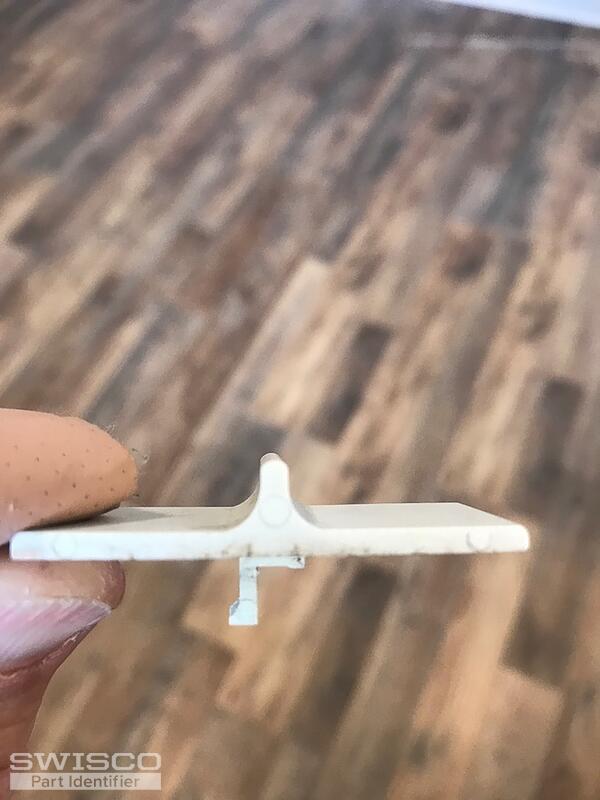

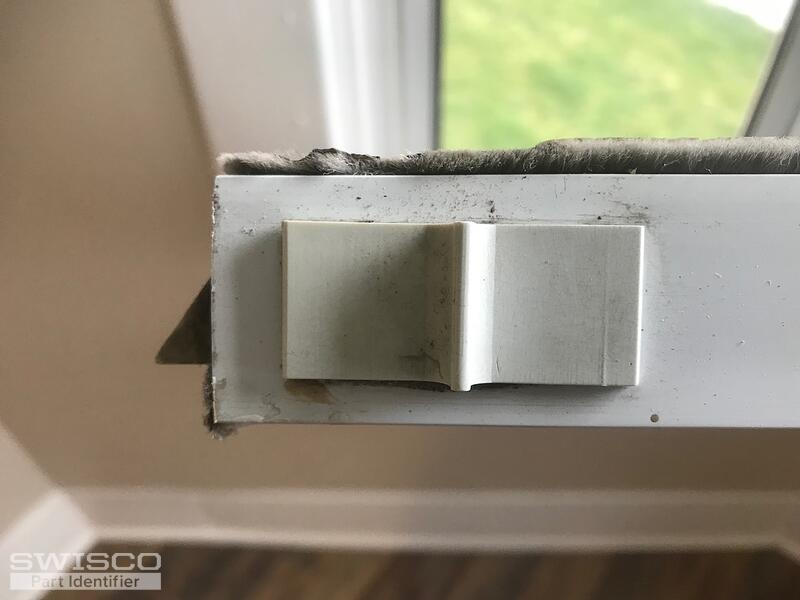

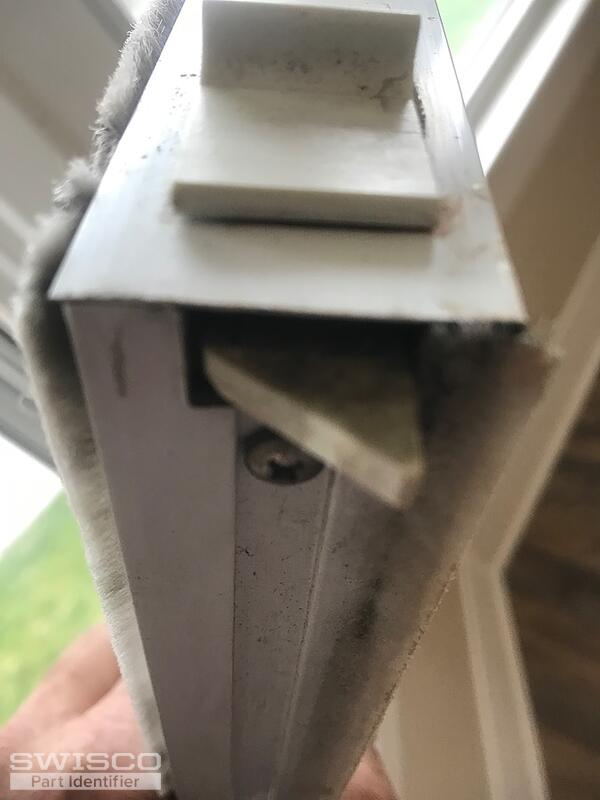

Thanks for your photo. It does give an idea of what we might expect to be able to recommend, however, I'll need to see the button removed from the window. To determine if we have a replacement that would work for you, I'll need to see the prongs that snap into your internal latch.

Are you able to provide a photo of those prongs?

Take a look at our 26-119 and 26-235 release levers. Compare the dimensions on our product pages to yours to determine if one of these options could work for you. You may need to find an undamaged version to confirm the measurements.

If not, you may need to consider conversion to surface mount tilt latches such as our 26-228 and 26-229 . See the video below.

So long as the installation hole measurement for the 26-040 matches the hole placement from your existing pivot bar, it should work fine as a replacement.

If you are concerned about the design of the part, you can also take a look at part 26-083.
