Patio Sliding Door Latch (Obsolete?)

A quick learner from Omaha, Nebraska says:
June 22, 2021

The lobes on my patio door are broken off. The patio door was installed when the house was built in 1986. I have no documentation or identification on the door. The door latch must be a low profile with 3 1/2 inch centers on the mount screws. The door latch hook locks into a slot cut into the wall-mounted portion of the door frame. I will purchase any door latch that compatible with these criteria. The latch is plastic(?) with a metal locking mechanism insert.

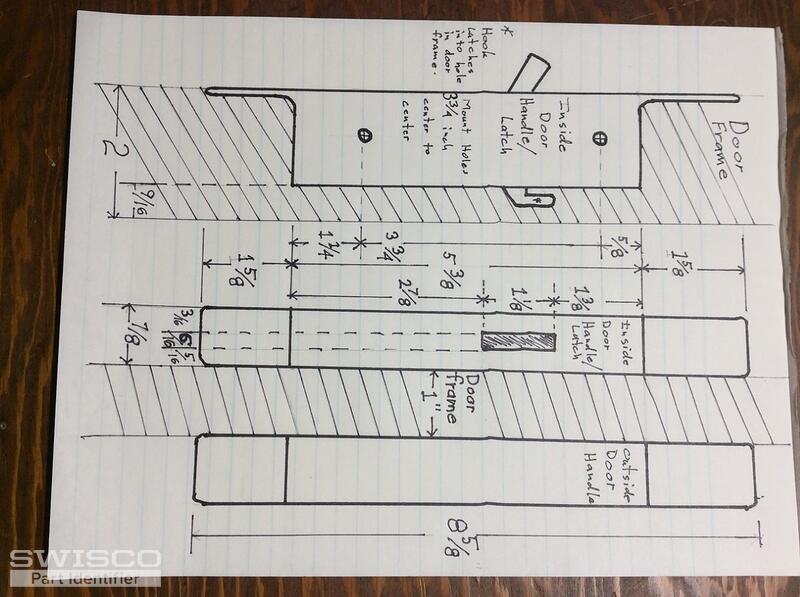

(sorry about the quality of the drawing/schematic)

respectfully,

Gary

Thumbnail of the uploaded file named patio door latch 1.jpg
Thumbnail of the uploaded file named patio door latch 3.jpg
Thumbnail of the uploaded file named patio door latch 4.jpg
Thumbnail of the uploaded file named patio door latch 7.jpg
Profile picture of Emily
Emily from SWISCO responded:
June 24, 2021

Hi there!

Our 82-005 is our best match but it's made to use a keeper, so there may be issues with that hole in the frame of your door. Look it over and see what you think.
Surface Mount Sliding Door Handle Assembly, 4-15/16"
Surface Mount Sliding Door Handle Assembly, 4-15/16"
82-005
$27.90
Reversing the thumb lock on the Swisco 82-005 Sliding Door Handle
Reversing the thumb lock on the Swisco 82-005 Sliding Door Handle
VIDEO
WATCH >
How to Replace a Surface Mount Handle Assembly
How to Replace a Surface Mount Handle Assembly
VIDEO
WATCH >
How to maintain a sliding glass door
How to maintain a sliding glass door
GUIDE
READ >
