Patio door handle clamp mechanism broken

Question

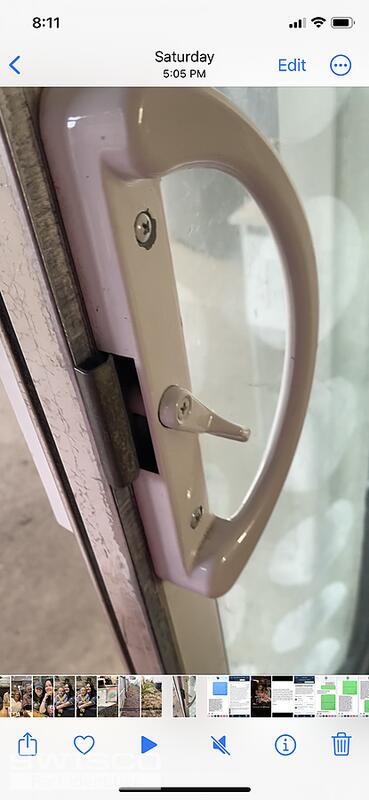

Hi. My local Home Depot rep was able to tell me my door is a Swisco & I need help bad. The clasp will not pop out when you flip the handle to unlocked anymore. This is the only back door to our yard & we use it multiple times a day for our dogs.

Please help me find a replacement clamp to change out to so I can keep using the handle I have. I did try purchasing a new one on Amazon and while the holes lined up, the clasp did not stretch far enough to reach the door frame piece to clasp onto in order to close.

Thank you so much!!

Jasmine · Accepted Answer

Hello,

Thanks for reaching out to us! I'm sorry to say that this is not a Swisco brand door. We often carry replacements for a wide variety of different brands however we do not manufacture or sell patio doors.

Unfortunately, we do not carry an exact replacement for your existing patio door handle set but we do have a few that may be worth considering as a replacement. Although, you will need to consider that these would require drilling new installation holes to install them, especially since your handle set appears to have a 3-15/16" hole measurement.

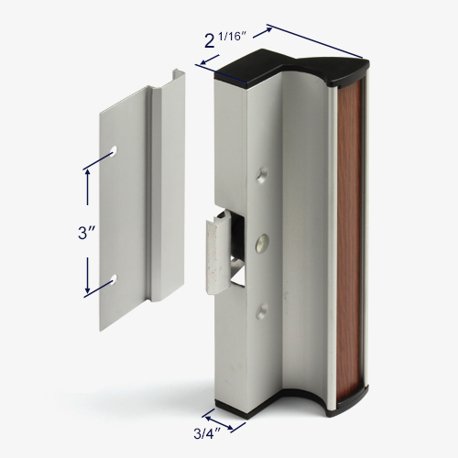

Take a look at our 82-082 which has an installation hole measurement of 4-15/16" and our 82-060 which has a 3" measurement. Carefully look over their dimensions and design to determine if either of them could work as a suitable replacement for your existing handle set.

Alternate image for 82-060

Dimensions for 82-082
