Paul from SWISCO responded:
September 26, 2017

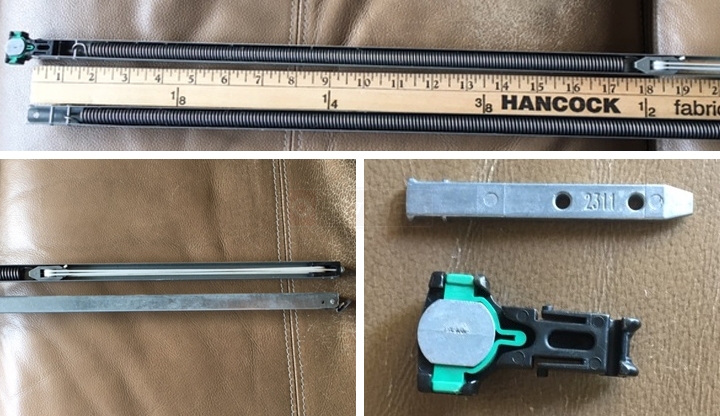

There is a lot to cover here so let's begin to break down everything for you. To start off, I believe our 26-360 pivot bar would work well with your 15-194 T-lock balance shoe with the green brake you are showing us. For you Patriot windows, our Series 795 channel balance has worked as replacements. It seems you need our S795-22 with a 22A and 22B option, along with our S795-30 with a 30B option, and our S795-36 with a 36B option. Lastly, our 26-243 and 26-244 top tilt latches have been used for Patriot windows.
Take some time out to review all of these parts to see if these can make great matches for you. If you should need any more help, please let us know. |
Tom from SWISCO responded:
March 3, 2020
I don't know the exact distance. It's better to compare the hole position of your old pivot bar to our 26-360. If you look at the dimensions we have for this part, you can see that the hole centers are set back 15/16", 1-3/8", and 2" from the front tip. As long as one of those hole positions matches your old pivot bar then they will work the same way. |
