Pella channel balance

A landlord from Waukee, IA says:
May 10, 2021
Hi,
I am looking for a few sets of channel balances for our Pella windows. The shoes that the terminal pins lock into break away from the metal channel. They measure 26" without the hook or shoe.
Thumbnail of the uploaded file named 1620674423816108445606785772153.jpg
Thumbnail of the uploaded file named 16206744411402557596574814392255.jpg
Thumbnail of the uploaded file named 1620674452278594899232777582575.jpg

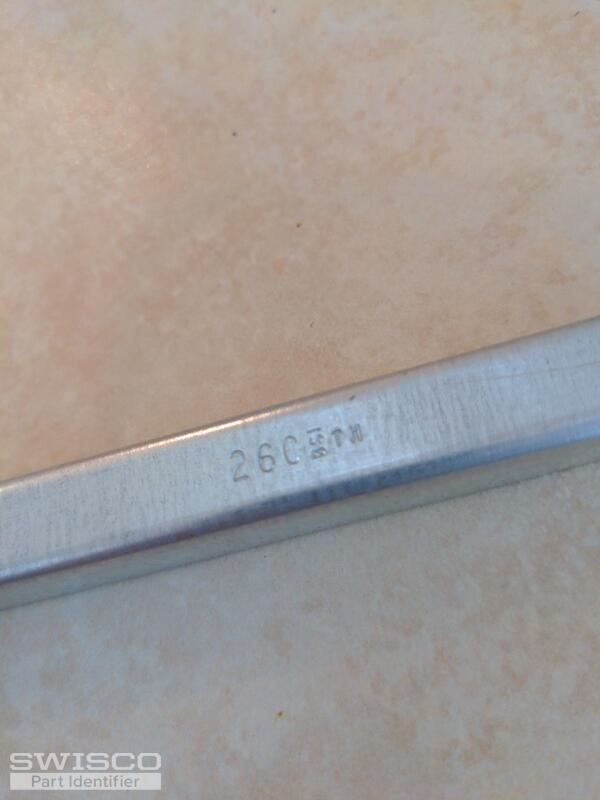

Thumbnail of the uploaded file named 16206744815442754397396401261918.jpg
Profile picture of Tom
Tom from SWISCO responded:
May 13, 2021

Hello! We can definitely supply this balance, but it has to be a custom order due to its configuration. What you have here is basically our S795-26, but the bottom shoe needs to be swapped out for our smaller 15-194 and the top clip for our 15-198 hook.

Before we go any further, can you just tell me how many you needed? The minimum for these would be 2. Once I have that, I'll email you a purchase link and price quote for that quantity.
A landlord from Waukee, IA says:
May 13, 2021
I need at least 8. We have a bunch of these windows with the same problem, and would probably want more like 16-24 to keep some on hand, depending on the price.
Profile picture of Tom
Tom from SWISCO responded:
May 13, 2021

Sounds good, I'll get that out to you now. Let me know if you wanted to make any changes.
26" Series 795 Channel Balance
26" Series 795 Channel Balance
S795-26
$13.45
1" T-Lock Balance Shoe, Closed Cam
1" T-Lock Balance Shoe, Closed Cam
15-194
$2.05
Balance Clip Attachment
Balance Clip Attachment
15-198
$0.70
