Pivot Lock Shoe

Professional from Plymouth NH
Nov 13, 2023 12:40 pm
Hello,

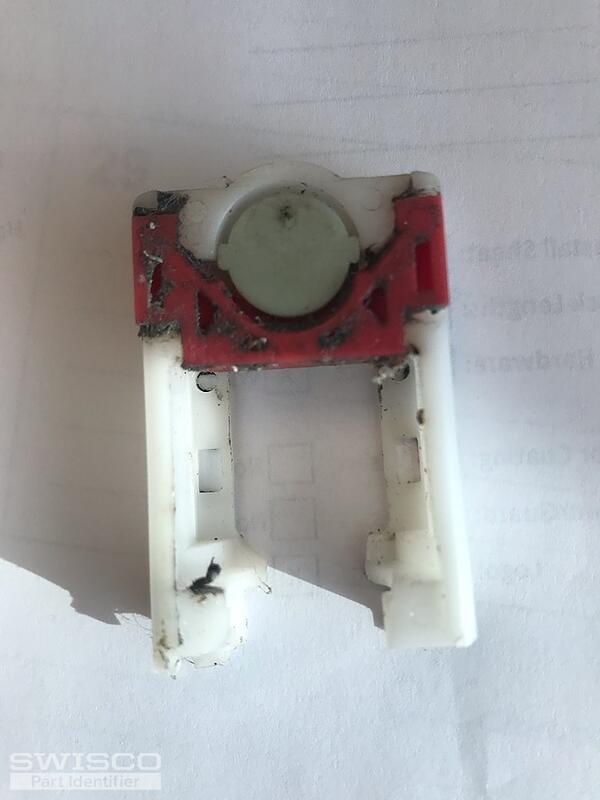

I am trying to get two of these pivot lock shoes - they are approx 17/32 thick and 1 1/4" wide by 2" high. I do not know what brand of window it is from.

Thank you!
721589839 721589853 IMG_0905 IMG_0906
4 user uploaded images
1 Replies
+ Add a Comment
Jasmine
Jasmine from SWISCO
Nov 13, 2023 3:02 pm
SWISCO
EXPERT

Thanks for writing in! Your pivot shoe looks like it could be the 15-121 9/16" Thick Pivot Shoe. To confirm that this is the correct replacement, carefully compare the dimensions below. This shoe has a height of 2-1/16, although, that should not make much of a difference in the function of the hardware.

Alternate image for 15-121
Alternate image for 15-121

+ Add a Comment
