Pivot Shoes/Bars

Home Owner from West Chester
I have two identically sized windows side by side. I replaced the pivot shoes for the first window using the 15-179 pivot shoe. Pivot shoe fit fine in the sash and with the original pivot bar and all worked well.

The Pivot bar is identical to 26-021 model.

Oddly the other window which is identical to the other window I just repaired has a pivot bar that is sames as 26-352(round end). Different end to the bar. The 15-179 pivot shoe fits fine in the sash but since the builder used a different pivot bar (round end) I can't place the window back in the 15-179 pivot shoe. Any recommendation for another shoe or different pivot bar?

Thank you for your help.
5 Replies
Paul
Paul from SWISCO
SWISCO
Expert
Since the 15-179 pivot shoe fits, you may want to try the 26-021 Pivot Bar.
Home Owner from West Chester
Paul, Thank you for your response. The challenge I would have using the 26-021 pivot bar is the distance of the drilled holes is different from the 26-352 pivot bar making it difficult to place the window back in. I was wonder if there is pivot bar with the same end as 26-021 and distances between the drilled as the 26-352 pivot bar or a pivot shoe the same size as the 15-179 shoe but a wider opening that I can slip the round end of the bar I have now that is similar the the 26-021 bar. If it helps here are the pictures of the 15-179 shoe and the old shoe that you can see has a wider opening so I can slip in the round end of the pivot bar. Thank you for your help

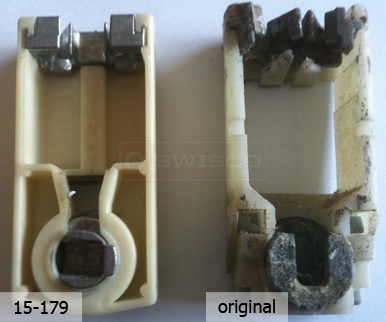

User submitted photo of 15-179 and original pivot shoe.
Paul
Paul from SWISCO
SWISCO
Expert
I think I may have found a solution. Take a look at the 26-241 pivot bar. I pulled one of the 26-241 pivot bars from the stock and personally confirmed that it works with the 15-179 pivot shoe. Do you think the 26-241 bar will work with your window sash?
Home Owner from West Chester
Paul, Thanks for you response. This should work. The pivot bar size should fit in the window and the distance between the end and the drilled hole that I need is 1 3/4" which is what the old pivot bar with the round end has, but now the 26-241 bar end will work with the 15-179 shoe. I will order the pivot bars. Thanks again
