Pivot interlocking bar replacement

A quick learner from Tampa Area says:
May 2, 2015
Its broke (both sides) need to find a replacement.

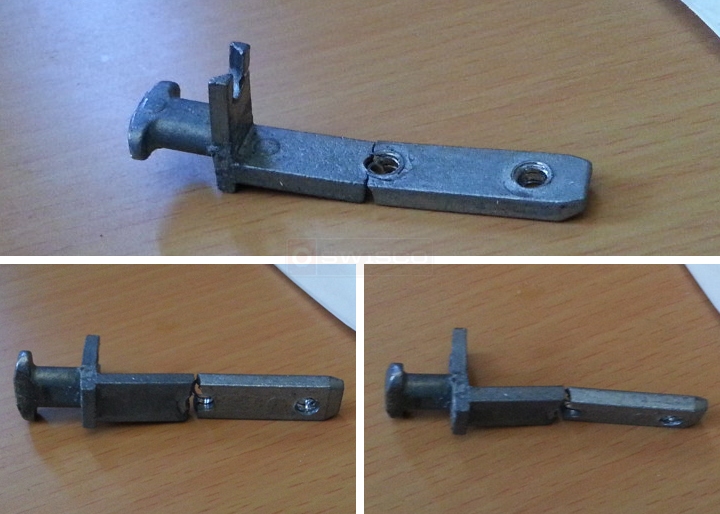

User submitted photos of a pivot bar.
Profile picture of Paul
Paul from SWISCO responded:
May 5, 2015
This one is a little weird. Could you tell me its dimensions? I would like to know its total length, as well as the distance between the center of each screw hole and the front tip.
A quick learner from Tampa says:
May 5, 2015
overall length is 2 1/8"
1 1/4" first hole ctr to tip
2" second hole to tip
User submitted photos of a pivot bar.
Profile picture of Paul
Paul from SWISCO responded:
May 7, 2015
Thank you. We have the 26-316 tilt bar, which seems to match your dimensions, except the molder added a ring to the tip instead of a cross. I'm not sure if that can fit in your pivot shoe, but if you were to show me a picture of it I can confirm. If it doesn't, I can offer a pivot shoe that will.
Interlocking Pivot Bar
Interlocking Pivot Bar
26-316
$1.97
