Pivot shoe carrier and dual coil balance

A home owner from Bismarck, ND says:
May 2, 2021

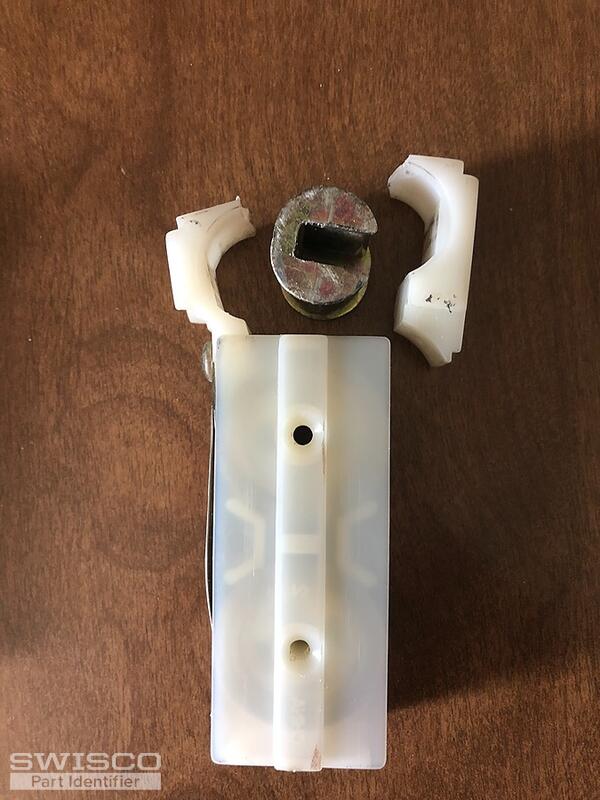

One pivot shoe carrier is broken and other is about to break. Looks like the coil balance assy is ok.

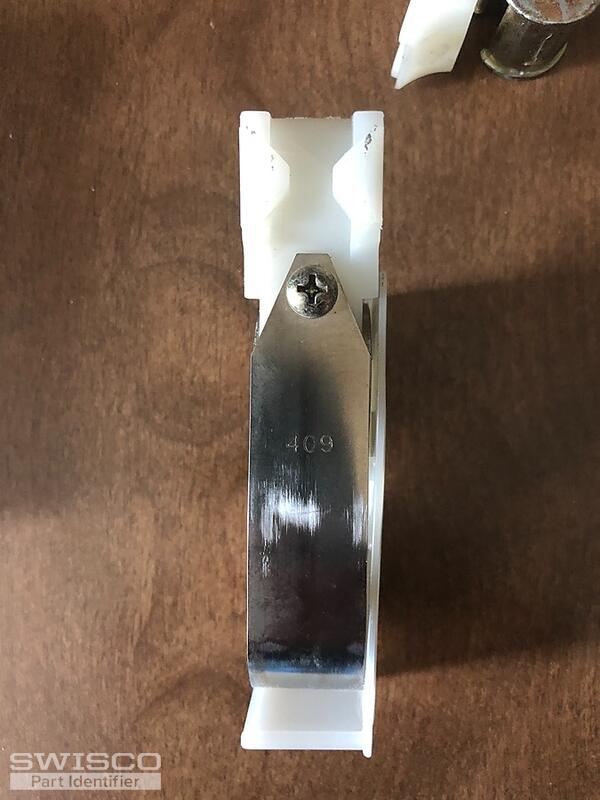

The only marking is on the coil itself stamped 409, see picture.

The side of the plastic bracket for the dual coils is the word CHINA and the number 1 on one and number 2 on the other.

Keith

Thumbnail of the uploaded file named 1996AF27-2FFC-474C-AF03-663CC6273C35.jpeg
Thumbnail of the uploaded file named 9AB17C1A-3DA9-4144-AD46-B50AEF230794.jpeg
Thumbnail of the uploaded file named C6BAC7A6-1B69-4C18-A95D-CD693FD045B9.jpeg
Thumbnail of the uploaded file named A8AA3E78-637E-46C0-A31D-CCA408D379C0.jpeg
Thumbnail of the uploaded file named 9102C29F-3281-458C-A517-11D7E10270DC.jpeg
Profile picture of Emily
Emily from SWISCO responded:
May 3, 2021

Hi there!

It looks like you have our 15-192 pivot shoe which uses Series 170 and Series 171 coil springs. Carefully review our dimensions and compare them to your current hardware to confirm if this matches up for what you need.
CertainTeed Pivot Shoe
CertainTeed Pivot Shoe
15-192
$6.39
SWISCO S170 and S171 Coil Balance Assembly
SWISCO S170 and S171 Coil Balance Assembly
VIDEO
WATCH >
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
