Pivot window with hooks

Handy Person from Pennsylvania
This is Zakir from Pittsburgh PA.
I am sending you some pictures, can you please help to identify them?

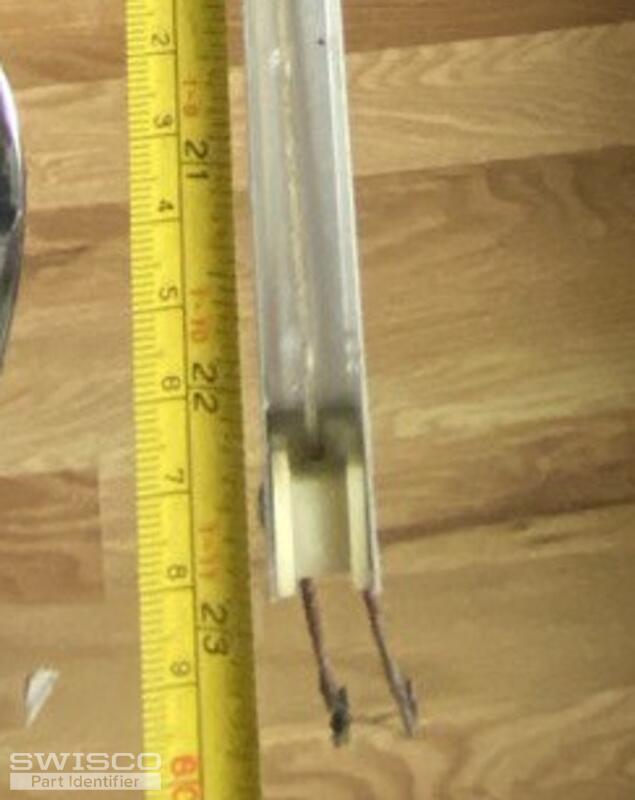

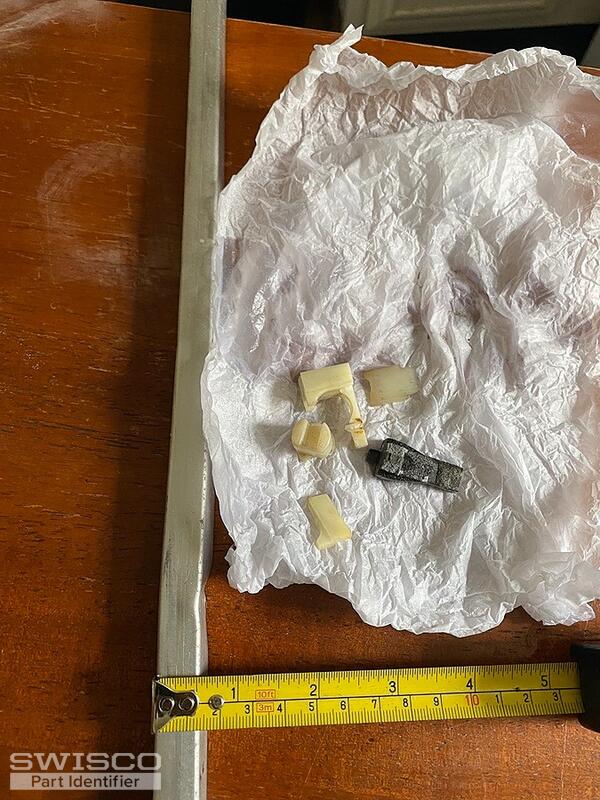

The small part is totally broken I assume it was kind of stop hold part or something like that, and the tilt slide part is 23 ft, and says 2220 on it.
Thanks much
5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hello there. Your window hasn't been made since the last century, but we still have some parts to help repair your it. We have black versions of those pivot shoes, our 15-106 and 15-107 that come in left and right, so you don't have to cut out the track to install them. You just twist and turn. We still have the brakes, the 15-054. I am afraid that we don't have the center cam, so you will need to reuse your old ones. The 23" tilt channel balance with the fork attached is something we can provide for you via custom order. I just shot you an email to order a pair if you need a different amount, or have any questions, just let me know prior to placing your order.
