Pivoting hardware

Quick Learner from USA

Nov 21, 2014 12:35 pm

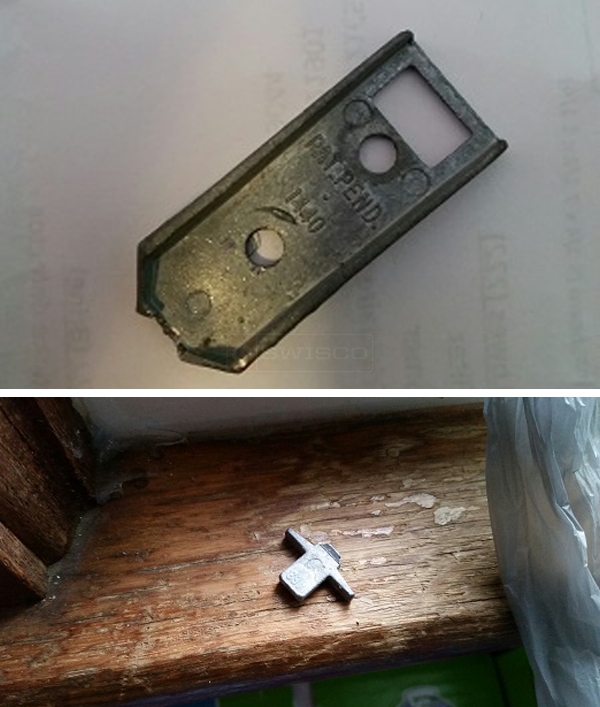

These two pieces were one piece. It is broken.The bottom left of pic 1 should be attached to the top right of pic two.

The 1st pic is 3/4" wide, it is 1&13/16 Long, screw holes center hole to center hole are 11/16, it is 5/16 thick

Can you identify this?

User submitted photos of window hardware.

5 Replies

Paul from SWISCO

Nov 24, 2014 9:31 am

Thanks for posting. I think you might be able to use our 26-376 sash pivot as a replacement. The wings on your original piece is not actually critical to the function of the window, so I wouldn't worry about that.

Quick Learner from Harrisonburg, VA

Nov 25, 2014 9:19 am

OK. I have since found the 2nd piece (with the wings) and can send you the measurements to ensure this works before I order 26-376. What do you think?

Quick Learner from Harrisonburg, VA

Nov 25, 2014 9:20 am

what was the purpose of the wings then?

Paul from SWISCO

Nov 26, 2014 9:22 am

The purpose of the wings is to draw the side frames in closer to the sash, but since the windows have been in the frames for some period of time the windows are settled into position already. If you see the store page for our 26-376, you can see an image listing detailed dimensions. Match your measurements up to that image to ensure that they match.
