Replacement Milgard Balances

Quick Learner from California
I need two replacement Milgard balances.

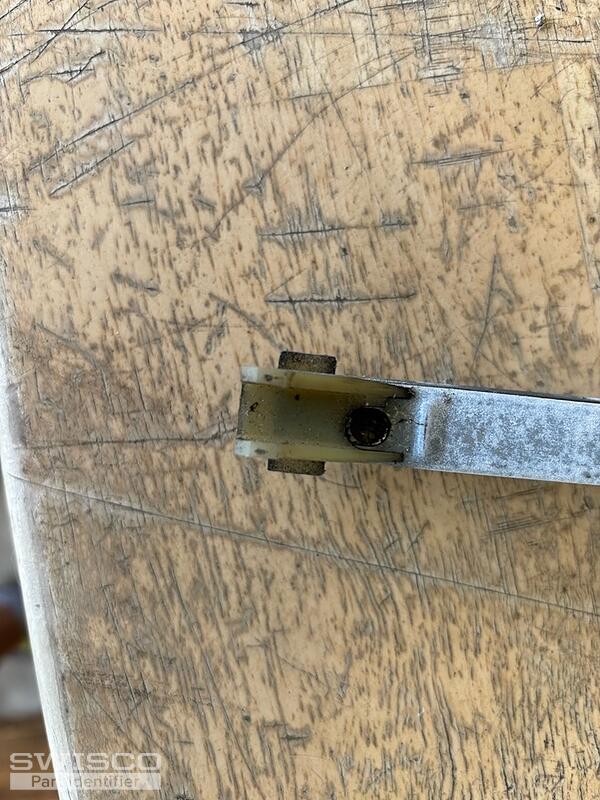

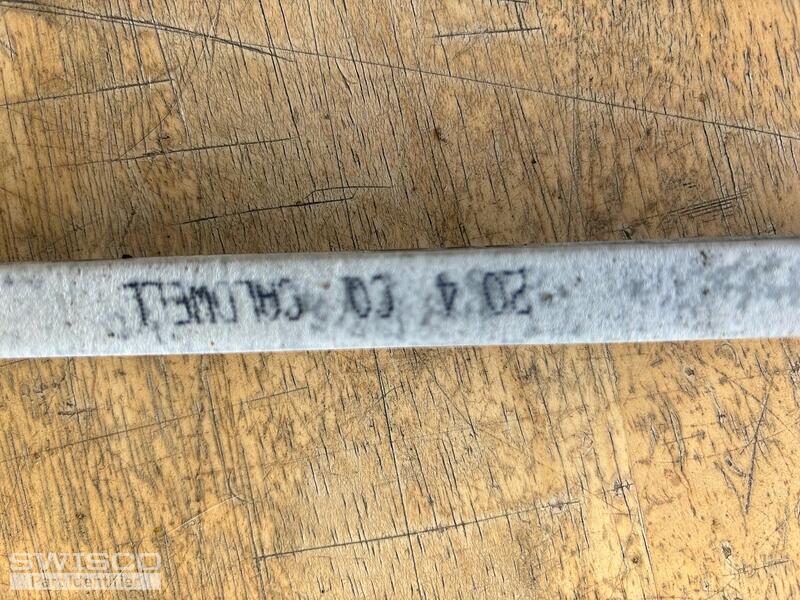

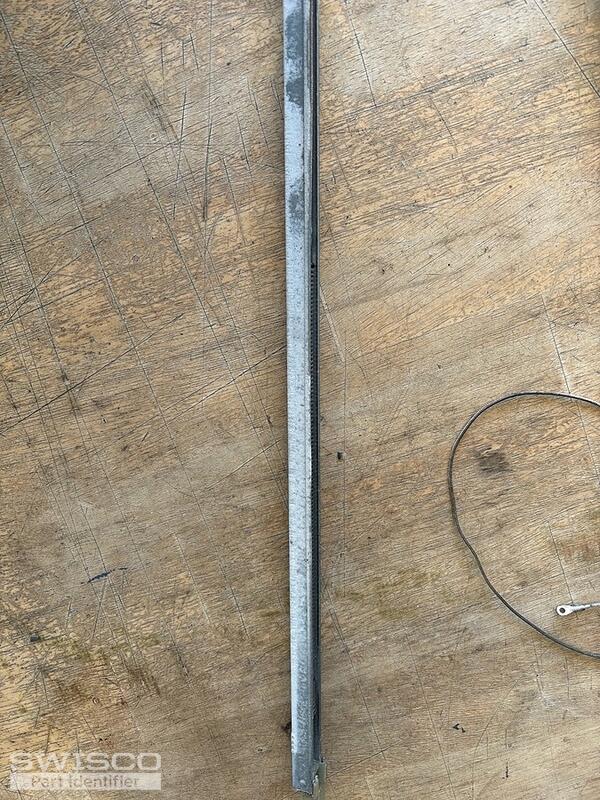

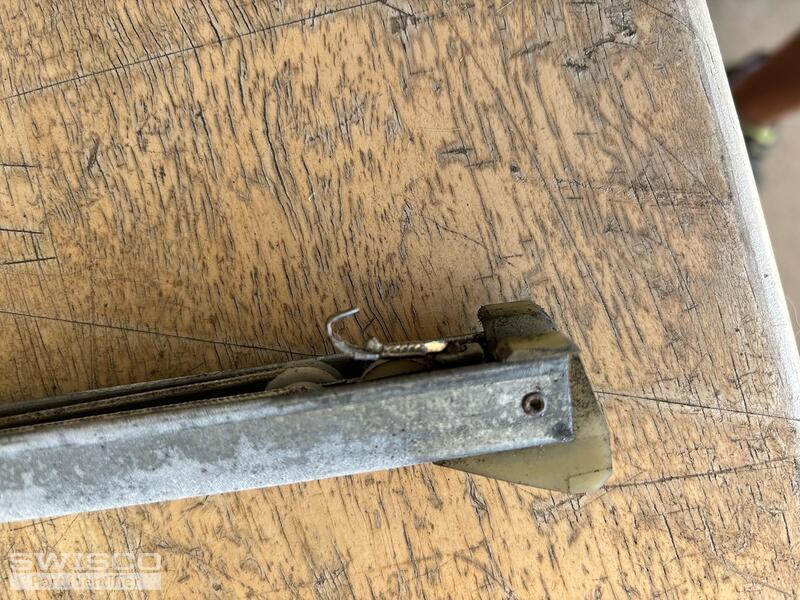

The channel measurement is 21",the stamp is 20-4 CO Caldwell, and the end hardware appears to be winged?

Can you tell me which replacement I need?

Thanks,

Matt
5 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hi Matt,

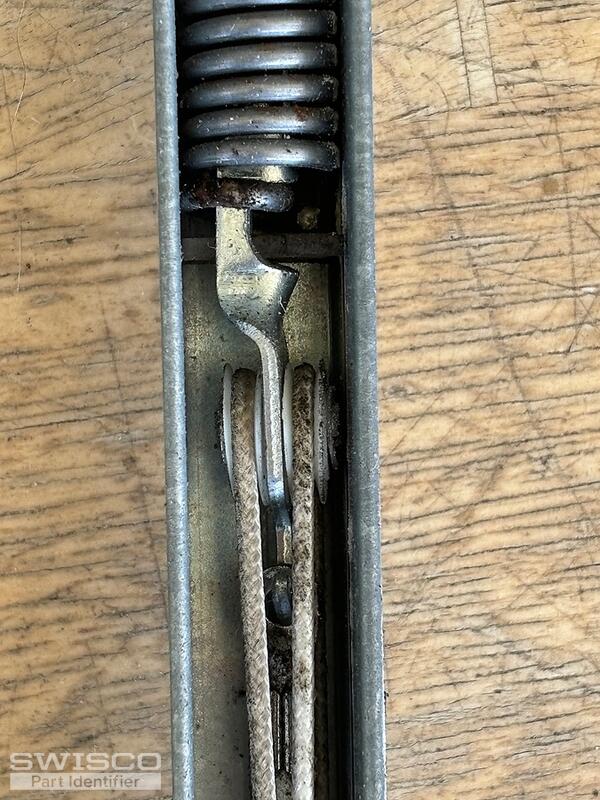

Thanks for contacting us! I am confident we can make a replacement recommendation for your balances but I'll need to see a photo of the pulley system in the center of the balance. This is where is the spring and the string meet in the center.

Please also confirm the measurement for the depth of your bottom shoe.

Profile view of a winged balance attachment
Profile view of a winged balance attachment

Quick Learner from California

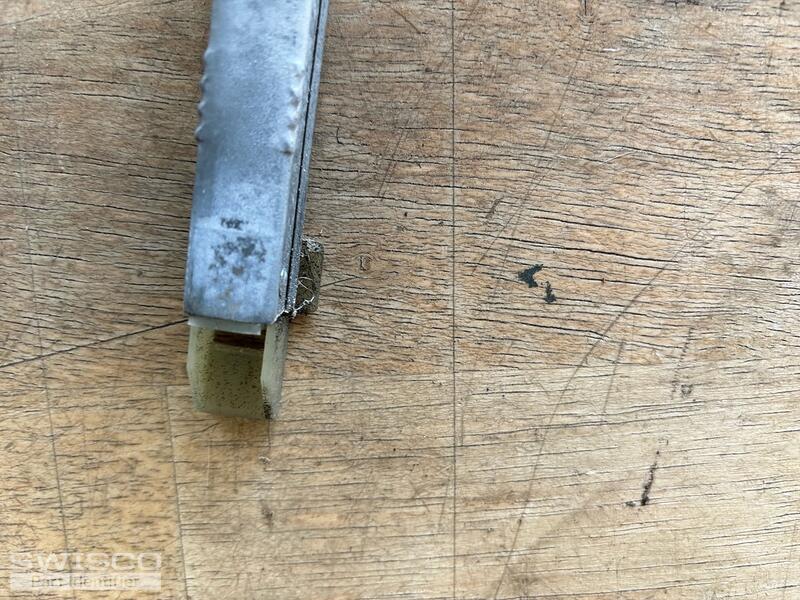

The bottom shoe is 1" from wing to bottom.
1 user uploaded image
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for confirming and for the additional photo. Your balance can be replaced with the S380-21. You'll need to select the 2040 stamp option.
