Replacement for a B.S.I Channel Balance

Professional
Jul 24, 2023 7:27 pm

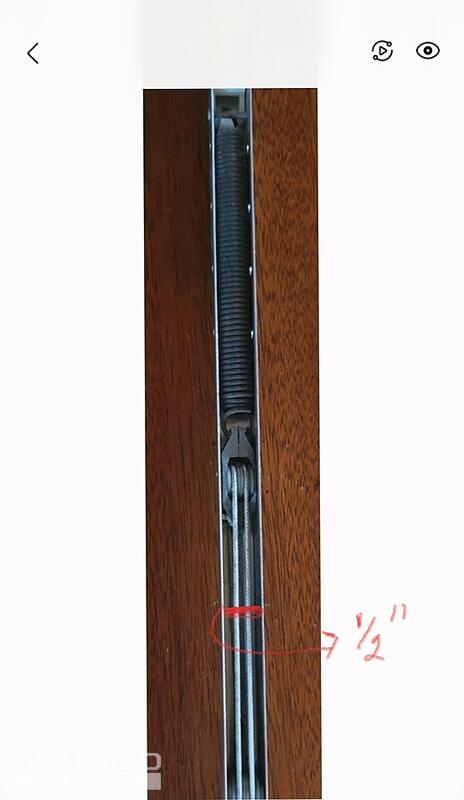

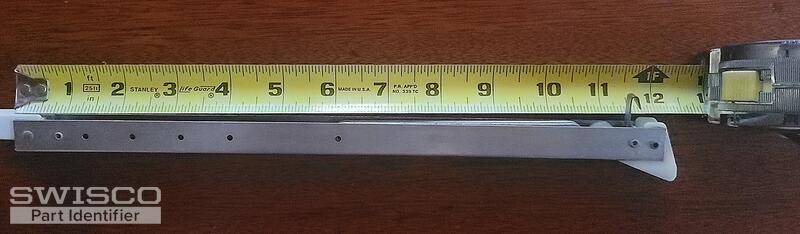

Replacement for a B.S.I Channel Balance per included pictures. I have several, once identified this will let me move forward with my purchase.

I look forward to your reply

Thank you

Michael

20230724_154305 20230724_154324 (1) 20230724_154341 20230724_154552 Screenshot_20230724_155802_Gallery
5 user uploaded images
1 Replies
Jasmine
Jasmine from SWISCO
Jul 26, 2023 11:03 am
SWISCO
EXPERT

Hey there, thanks for posting!

Your balances resemble our S351-12 with a 1" shoe or the S390-12 with a 1-1/8" shoe. The length of the metal channel for these balances is 12". To determine which series is needed for your window, look over the dimensions from the diagram below to confirm the depth of your bottom shoe.

You'll need to select the 1130 stamp, which can support a window weighing 9 to 11lbs.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
