I've probably got ahead of myself. I've ordered two of the S380?29 29 inch series 380 channel balance. Please contact me and let me know if I screwed up. By the way the window sash weighs 20.4 pounds.
Thank you very much.
|
Casey from SWISCO responded:
November 21, 2022

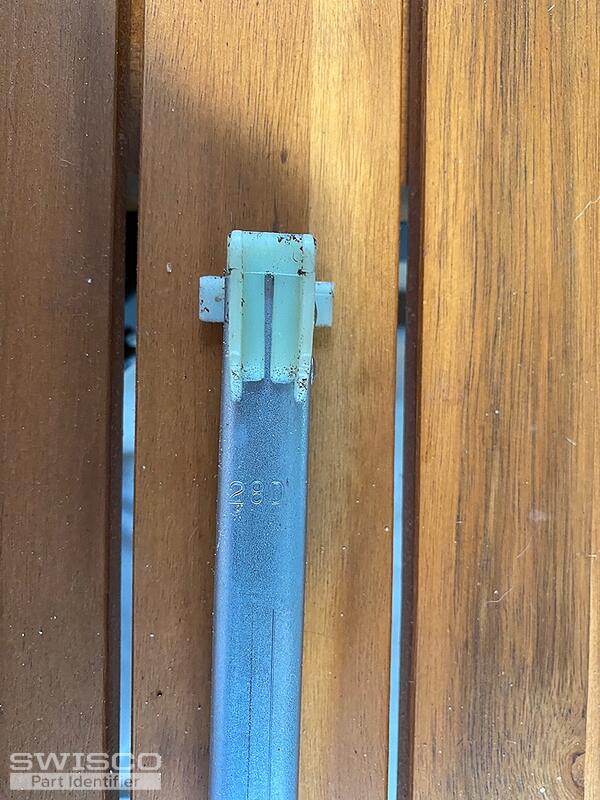

Hello, With this combination of attachments, you could have either an S380-29 or S385-29 channel balance. You’ll need to measure as shown below to confirm. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. The 28D stamp on your balance would generally indicate that you would need a 2840 strength option but if your sash weighs exactly 20.4-pounds, then the 2830 strength option that supports between 16 and 23 lbs would work for you. Thank you and let us know if you have any other questions or concerns.
Comparison of the S380 and S385 balance shoes.
|
