Replacement part help

A home owner from USA says:

March 24, 2023

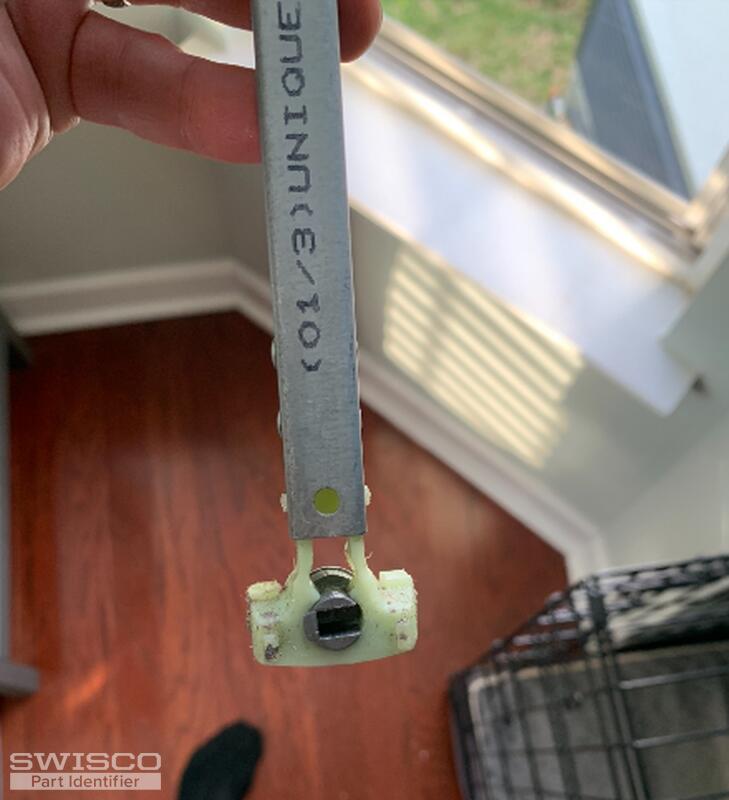

I need to locate a few replacement window balancers. The current ones have the markings in the picture.

Can you advise the correct replacement part?

The metal part is 28 inches long.
This is a tilt window.
The width is 0.5 inches.

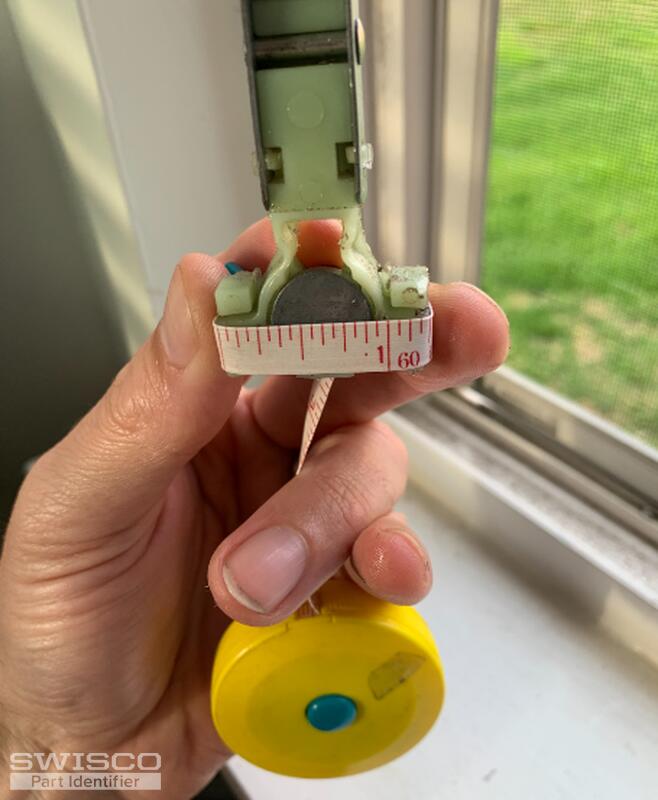

I don't see any tabs on top, and the bottom is T shaped (1 inch tall, 1.25 inches wide). Pics included. The very top of the strong has a little tab that us screwed in.
Hope that this helps!

Thumbnail of the uploaded file named Elliot Bal5.PNG

Thumbnail of the uploaded file named Elliot Bal4.PNG

Thumbnail of the uploaded file named Elliot Bal3.PNG

Thumbnail of the uploaded file named Elliot Bal2.PNG

Thumbnail of the uploaded file named Elliot Bal1.PNG

Jasmine from SWISCO responded:

March 27, 2023

Thanks for reaching out. Your channel balance is designed similarly to our S795-28. Like yours, it comes equipped with a screw clip on the top of your balance as well as a 1-1/4" T-Lock Balance shoe.

You'll need to select the 27B stamp which is rated to carry 12 - 18lbs, although, you may want to double check the weight of your sash.

28" Series 795 Channel Balance

S795-28

$13.61

How to Install a T-Lock Shoe on a Channel Balance

VIDEO

WATCH >

How to Convert a Crossbow Balance to a Channel Balance

VIDEO

WATCH >

How to install the 26-200 Screw Plug

VIDEO

WATCH >

Modifying the Series 795 Balance

GUIDE

READ >
