Replacement part identification needed

Handy Person from West Palm Beach
Mar 16, 2022 7:04 pm

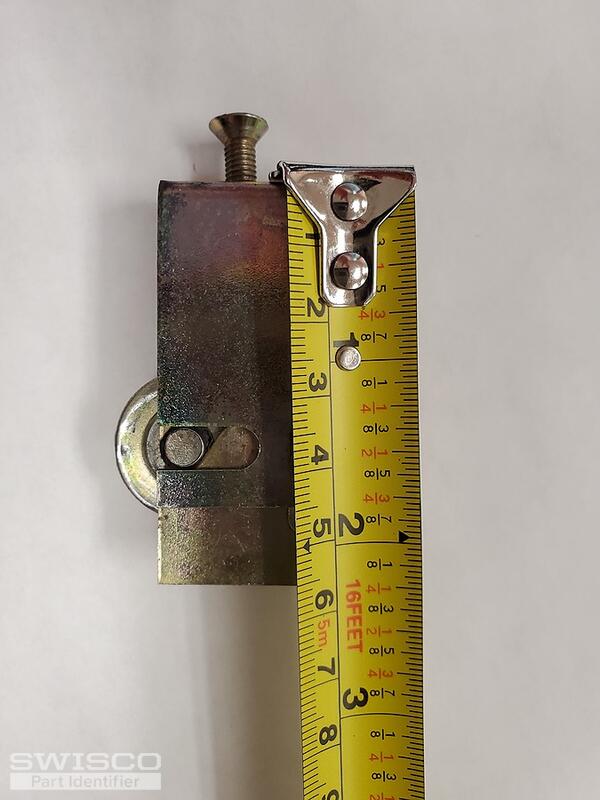

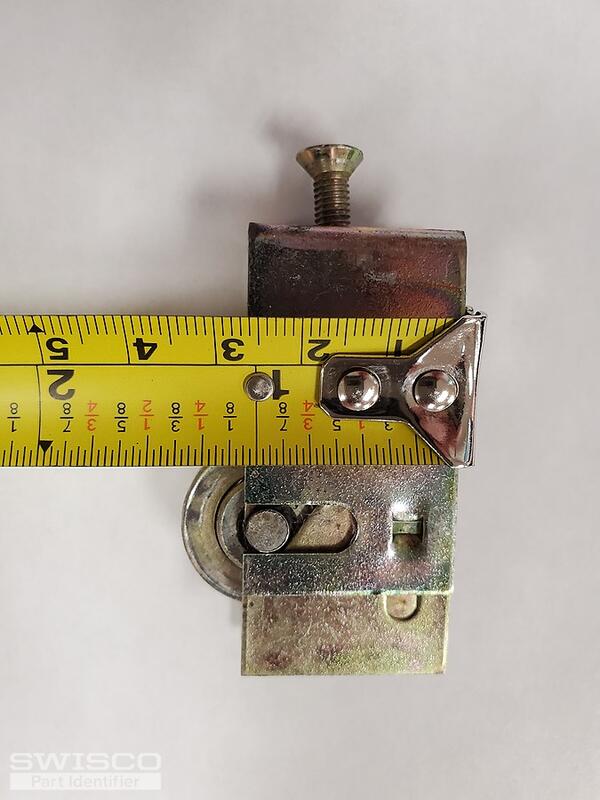

Wheel size is 1 1/2 inch
It goes on a closet mirror door
20220316_185555 20220316_185630 20220316_185649 20220316_185736 20220316_185808
5 user uploaded images
3 Replies
Tom
Tom from SWISCO
Mar 17, 2022 11:01 am
SWISCO
EXPERT

Your roller looks like a good match for our 81-011 at first glance, but our dimensions do differ slightly. For example, I couldn't find anything as short as yours (1-1/16") with a 1-1/2" diameter wheel. You may want to triple check your dimensions just to confirm.
130

Handy Person from West Palm Beach
Mar 17, 2022 2:02 pm
The wheel had a plastic outer wheel that broke apart with a diameter of 1 1/2 or 1 1/4.
Leaving only metal inner portion.
Hope this helps
Once again I appreciate all you help
Dave Sr.
Dave Sr. from SWISCO
Mar 21, 2022 8:36 am
SWISCO
EXPERT

Hey there, maybe I can help.

To start, you mentioned that this roller is for a closest door. That's pretty strange right off the bat; I personally have only seen this type roller used on patio glass doors, exclusively. If this was on your mirror door then I think someone retrofit it during a past job.

That aside, the 81-011 Tom mentioned only comes with a 1" flat wheel. We also sell the 81-090 roller, but it has a 1-1/8" concave wheel. One possible solution is to use the housing and replace the wheel for something like our 81-236 nylon 1-1/2" replacement, along with the 81-310 axle kit.
