Replacement window tilt in window pin

Quick Learner from Ocean Gate, New Jersey
Jul 14, 2021 1:32 pm
Good day, I am trying to replace a tilt in window pivot pin that broke. Overall length measures 2.5 inches and screw holes are 5/8" center to center. i've attached pictures of the pin and the label on the window. hopefully you have something that will work. Christian
2 user uploaded images
2 Replies

Tom from SWISCO
Jul 20, 2021 11:18 am

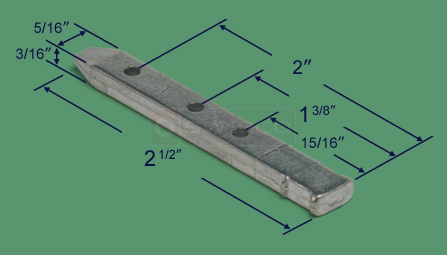

Hello, Christian. Thanks for your patience during this busy season. Looking over your photo I think our 26-360 would be a good place to start. The center-to-center spacing isn't really important for a pivot bar; what's more important is the distance between the center hole and the front tip of the bar. As long as at least one of your hole positions matches the 26-360 then it should work perfectly well.
