Roller Assembly 60" Sliding Glass Door

Quick Learner from Greensboro NC

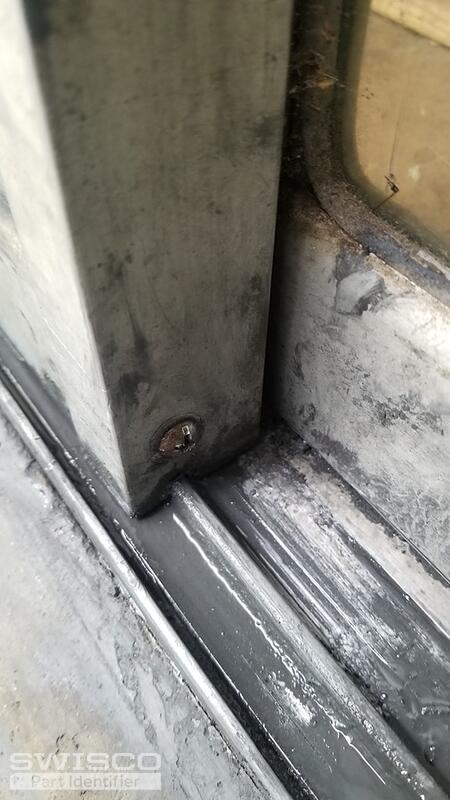

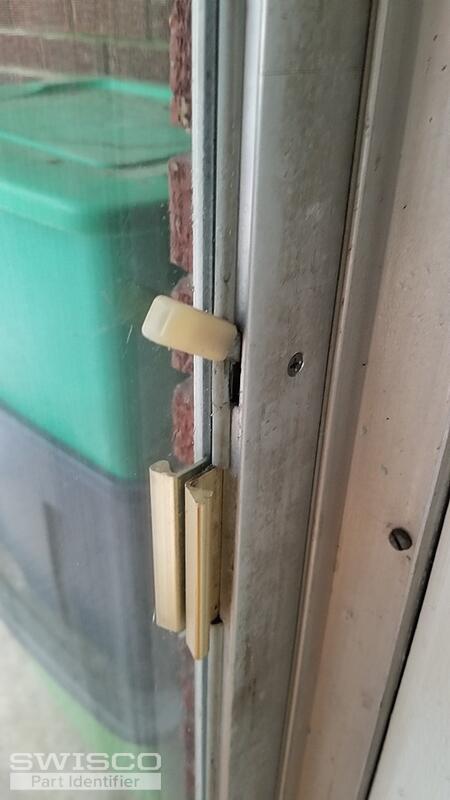

No markings identifying manufacturer. Sent picture of door locking mechanism to assist id. Steel wheel appers to be about 1 1/2 inches. The roller has two screws one on top 3/8 from end to attach to frame and one on the end about 7/8 inches from the bottom to attach to the exterior of the frame at the end. The body is solid aluminum either milled or cast, very heavy.
5 user uploaded images
3 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

I don't recognize this roller at first glance but I'm going to have one of our senior experts take a look and see if they could recommend a replacement for you. We'll reach out as soon as more information is available.

Thank you so much!

Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

Hello,

You might be able to adapt a roller like the 81-277 in your patio door. However, it might be easier to just replace the wheels with the 81-272 roller kit and reuse your existing housing. Take a look at the related videos and information on this page, you may find them helpful.
