Rollyson Double Glazed Window

A home owner from North Carolina says:
All of my windows are beginning to break. First the plastic parts at top of channel balance. Channel balances getting stuck. Entire bottom of window fell out of one window already.
Thumbnail of the uploaded file named UNADJUSTEDNONRAW_thumb_f1ed.jpg
Thumbnail of the uploaded file named UNADJUSTEDNONRAW_thumb_f1ef.jpg
Thumbnail of the uploaded file named UNADJUSTEDNONRAW_thumb_f1ee.jpg

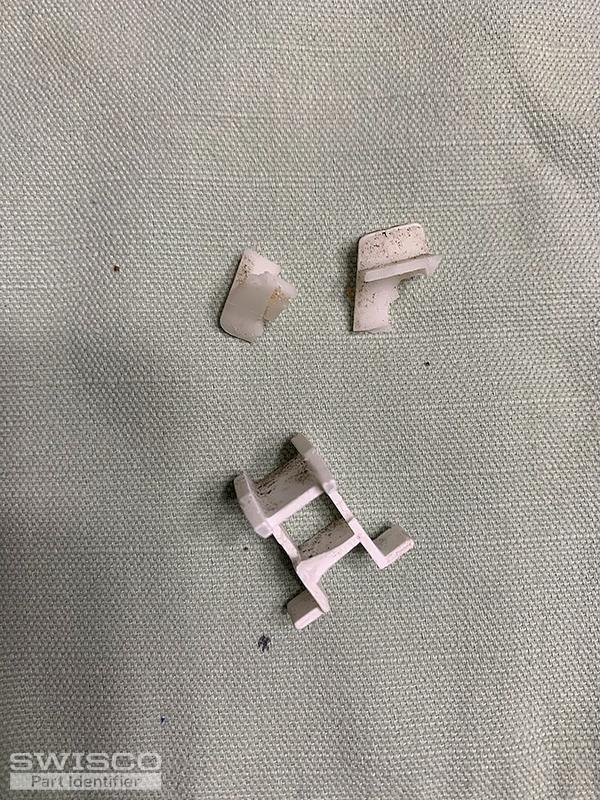

Thumbnail of the uploaded file named UNADJUSTEDNONRAW_thumb_f1f0.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

We'd be happy to help but we will need to see an undamaged balance from another window with both top and bottom attachment intact to determine what the correct replacement would be.

It sounds like you might also need top sash guides that keep the balance in place, which we will also need to see undamaged and removed from the window to research for you. Thank you!

A home owner from North Carolina says:
I cannot seem to get the window out to get a balance that is not broken. So I have taken a picture of the top of the balance and the bottom. will this do?

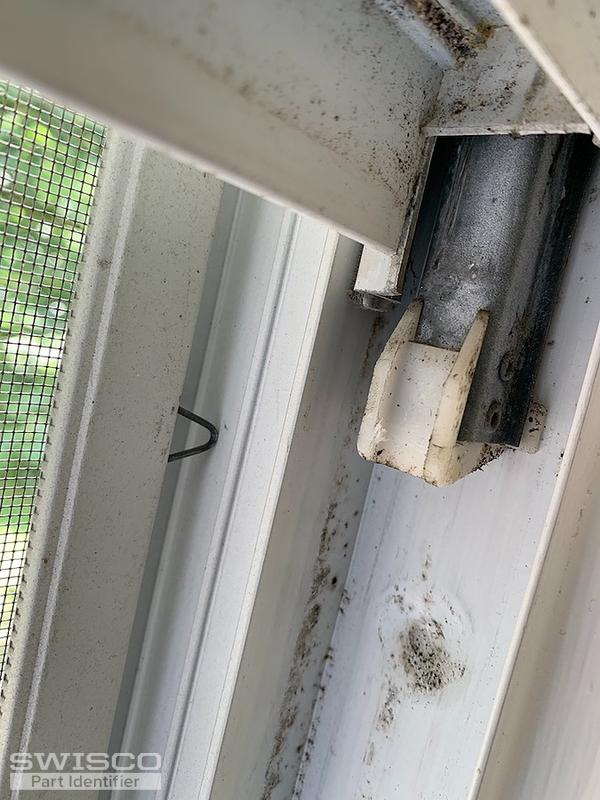

Thumbnail of the uploaded file named UNADJUSTEDNONRAW_thumb_f1f9.jpg

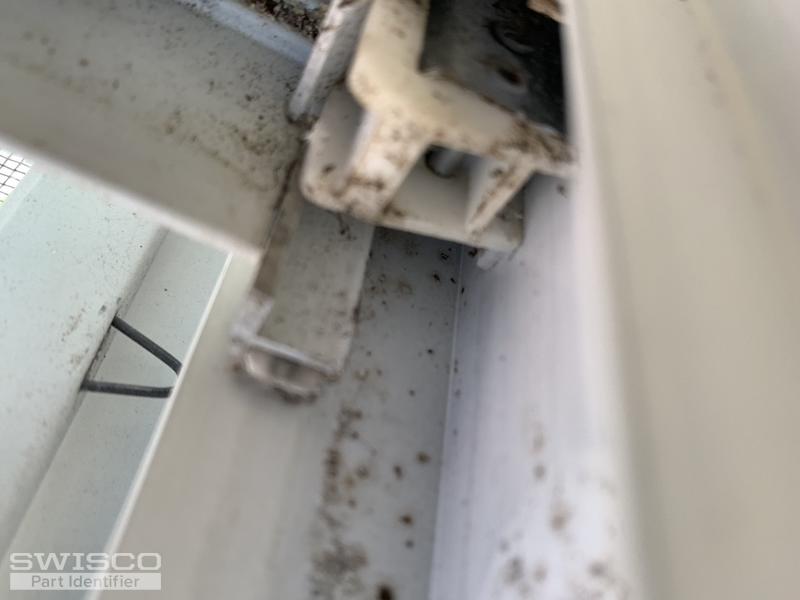

Thumbnail of the uploaded file named UNADJUSTEDNONRAW_thumb_f1f7.jpg

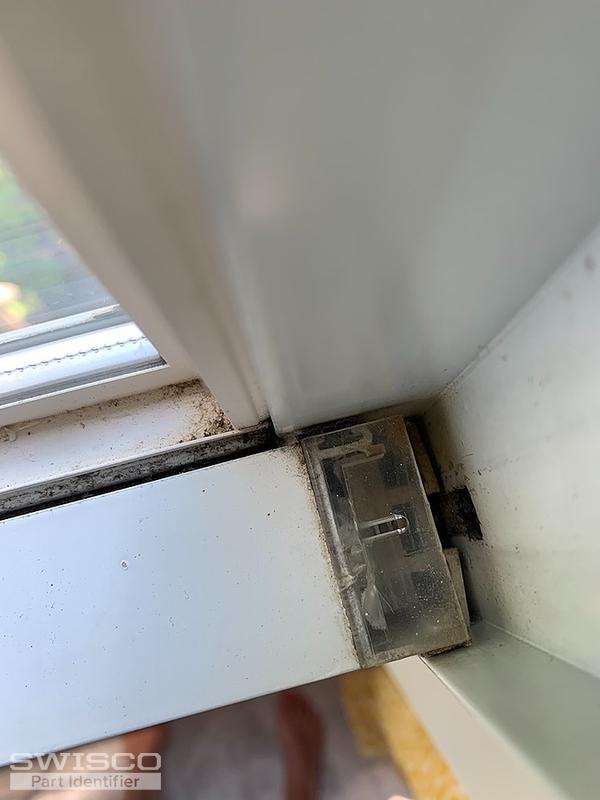

Thumbnail of the uploaded file named UNADJUSTEDNONRAW_thumb_f1f8.jpg
Profile picture of Casey
Casey from SWISCO responded:

Thank you for sending the additional photos, we're certainly heading in the right direction. I can see your bottom balance attachment, but you will need to remove the balance to be able to see the top attachment.

The last photo you sent showing where the top of the balance would be is actually the top sash guide, which I would recommend removing and comparing to our 18-118 guide pair if you need to replace those as well.

A home owner from North Carolina says:
Managed it with my son!! Here are more photos.

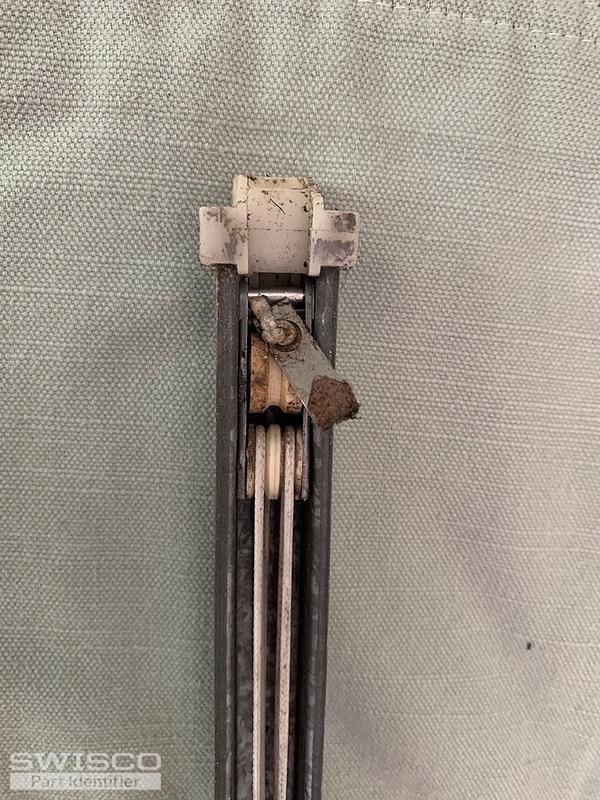

Thumbnail of the uploaded file named 56DA271A-6400-4DFB-8DAD-C8D6F2B1124E.jpeg

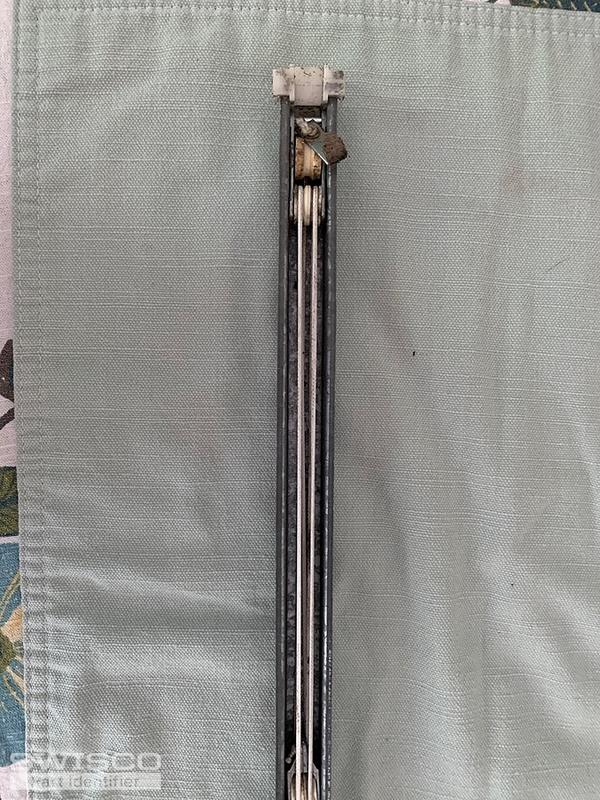

Thumbnail of the uploaded file named F64C78E3-1923-4ECB-8380-AD89DBAEEC85.jpeg

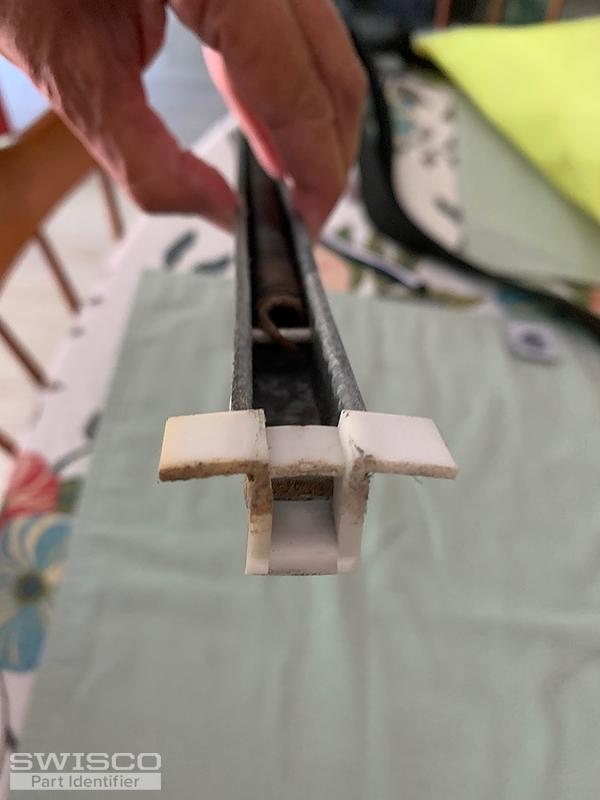

Thumbnail of the uploaded file named 3442D61F-BF92-4DE6-BAAF-D9E86BC5EA19.jpeg

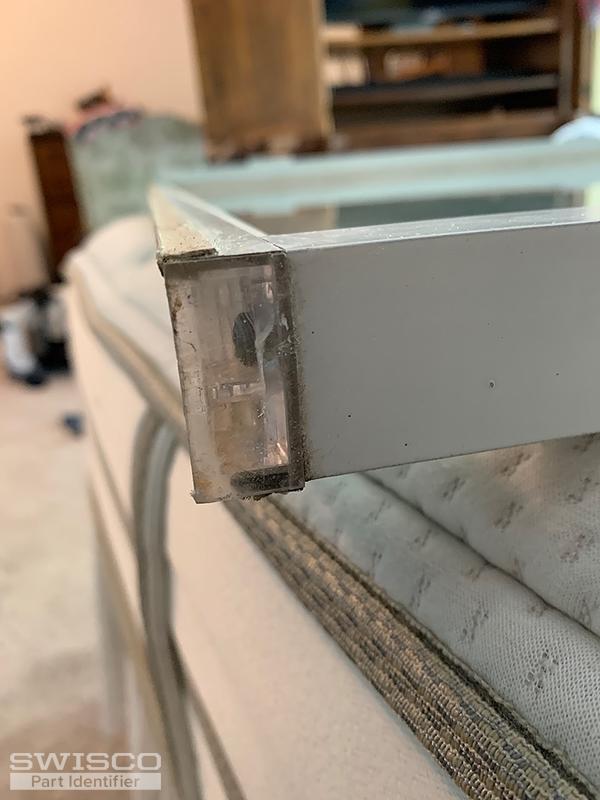

Thumbnail of the uploaded file named 7BDA2E49-6AAB-487E-89AC-12512D7571B6.jpeg

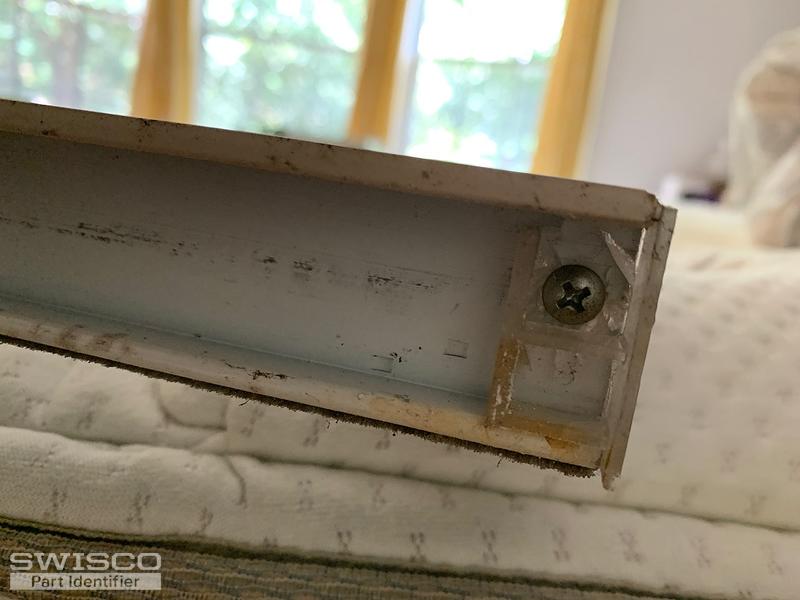

Thumbnail of the uploaded file named A3898C53-3D28-4518-BAA2-BE801ABA7AE8.jpeg
Profile picture of Paul
Paul from SWISCO responded:

Hello,

As Casey mentioned, your top sash guide looks like our Rollyson 18-118 guide pair. As for your balances, it appears that you'll need custom made S371-30 channel balances with the 19-037 top balance fitting with extra-wide support wings. Please let us know how many balances you'd like to purchase, as well as the stamp number on your metal channels and we'd be happy to get an order link and price quote together for you.
