Sash guide and windows balance

Handy Person from Davie, FL

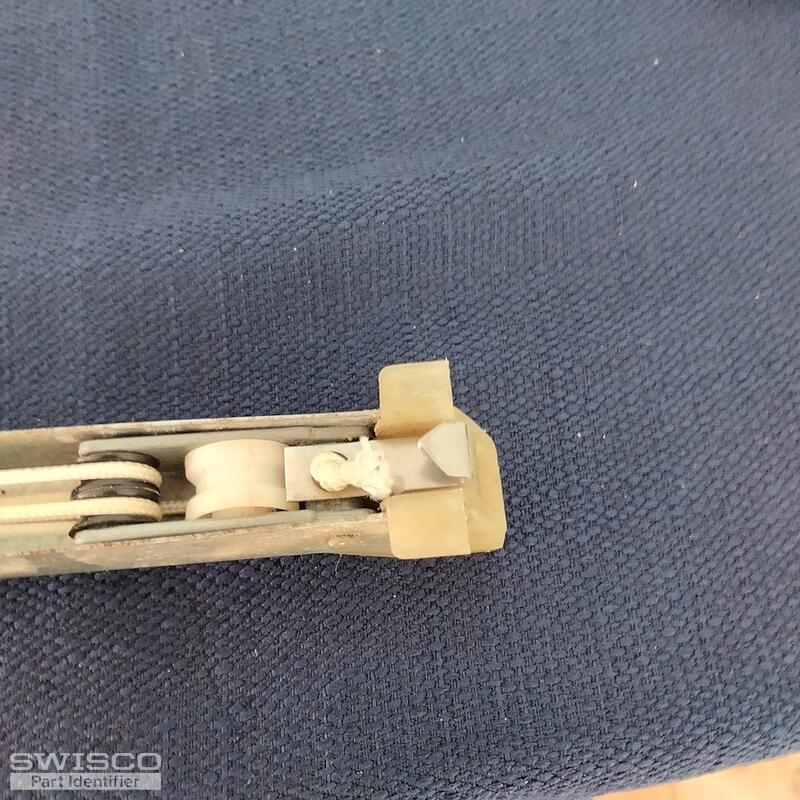

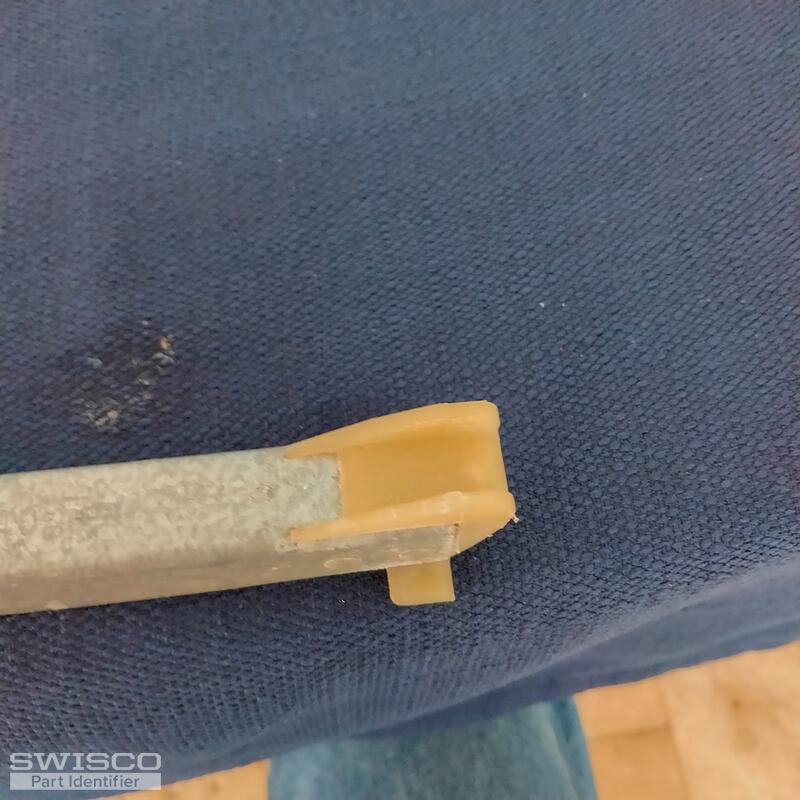

Need to identify sash guide and windows balance 27 in 2640
Thanks
5 user uploaded images
4 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

Take a look at our 18-201 top sash guide. Compare our dimensions to your current hardware and see how they match up.

As for your channel balance, we'll need to see some pictures of both your top and bottom nylon fittings.

Dimensions for 18-201
Dimensions for 18-201
Alternate view of 18-201
Alternate view of 18-201
Handy Person from Davie, FL

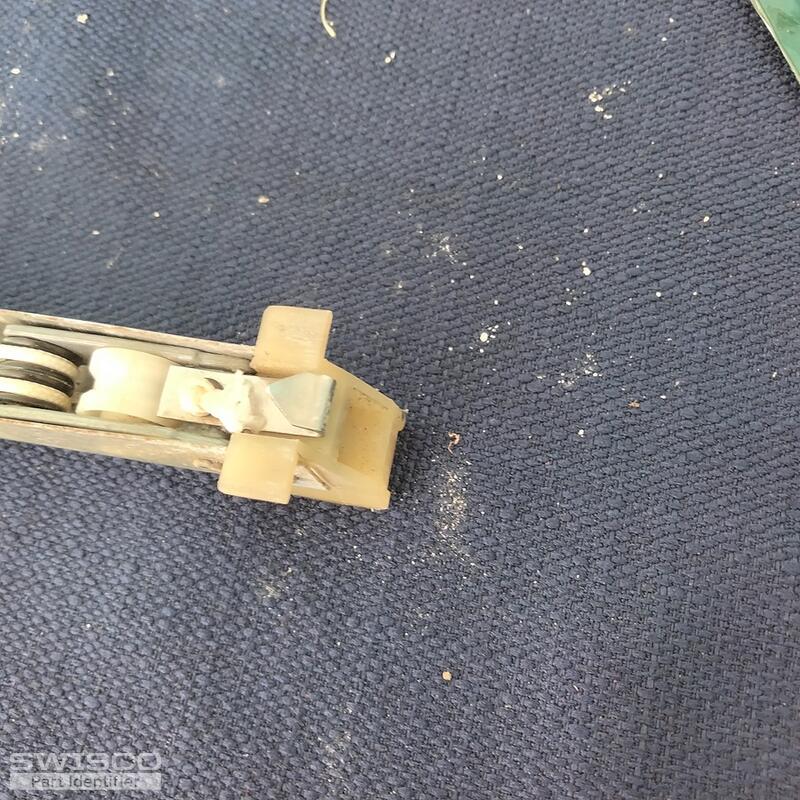

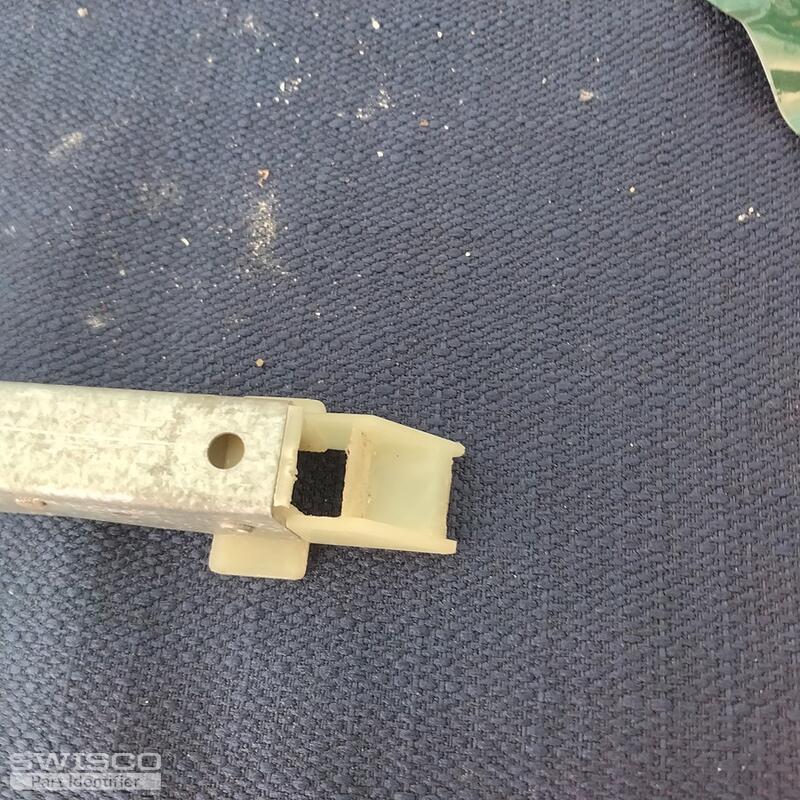

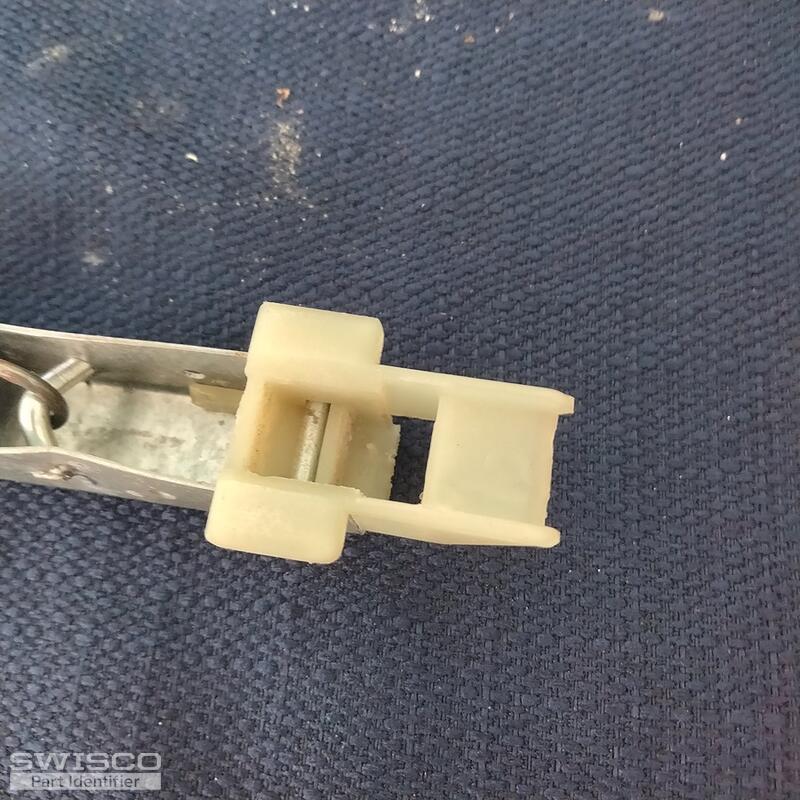

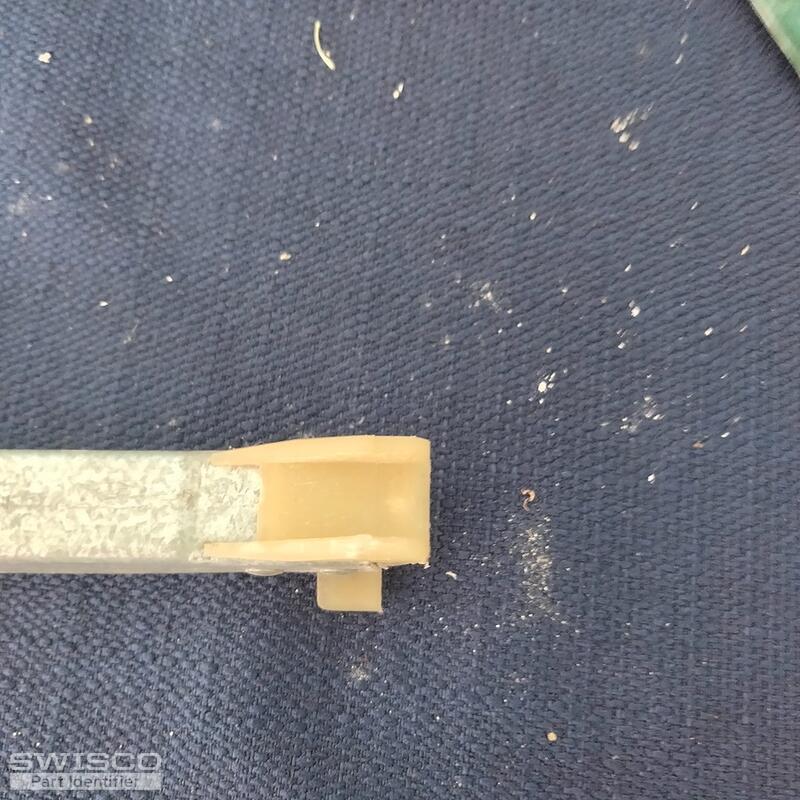

Here are new pics for you to identify
Thank you
4 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Thank you for the additional pictures!

It looks like you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2640.

If you have any further questions please let us know.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
