Searching for 2 Parts to my andersen door

Home Owner from NJ

May 23, 2022 5:39 pm

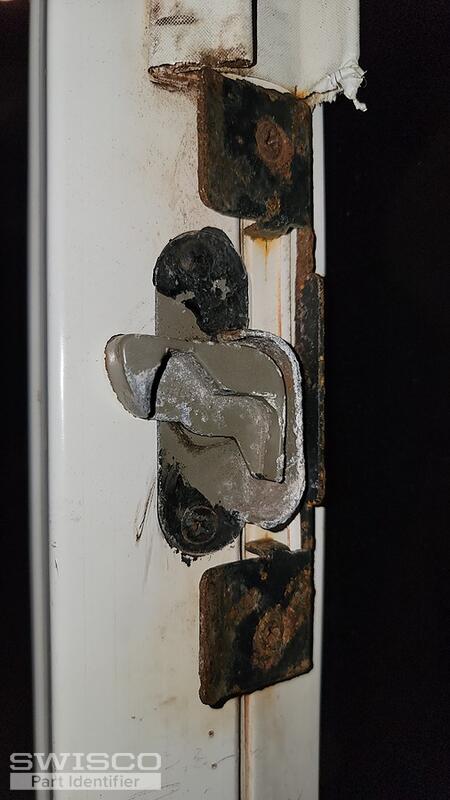

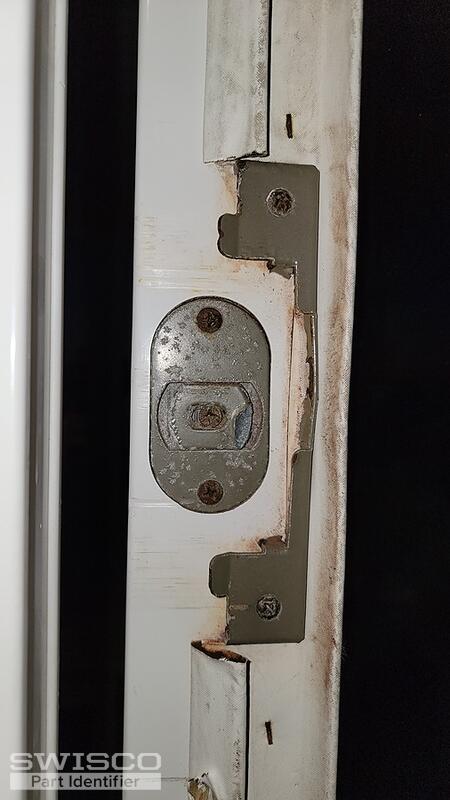

I'm searching for the 2 parts seen here framing the locking mechanism, not the actual lock. I'm not sure if it's the same part twice (inside and outside) or I'd they are two different parts. Interlock Bracket operating/meeting stile

2 user uploaded images

4 Replies

Tom from SWISCO

May 26, 2022 10:19 am

Hello! Looks like you already found the interlock bracket, which is our 82-058. We also sell the 82-048 latch mechanism and 82-056 lock bolt. Are these what you're looking for?

Home Owner from NJ

May 26, 2022 11:14 pm

Yes thank you. I already ordered and received what I needed but what about the screws I need? The original screws are rusted out

Tom from SWISCO

May 27, 2022 8:14 am

I've always used a #8 x 1" screw for these, like our 33-016, but looking at our records it seems a lot of customers also like using our 33-079, which is #10 x 1". I feel like that might be a little too tight but if it works, it works. You might want to try each size just to be 100% sure.
