Quick Learner

Nov 1, 2023 11:34 am

Hello,

We need to order two replacement channel lifts for the Caldwell 38 5 FS in the photo attached. Let me know if you need any further information.

Thanks a lot,

Mark

Eagle Harbor Const.

2 user uploaded images

7 Replies

Casey from SWISCO

Nov 2, 2023 11:18 am

Hello,

We'd be happy to help but the stamp code oly tells us the spring strength needed to support the weight of your window. We would need to see the fittings attached to both ends of an undamaged balance removed from the window to narrow down your replacement options. Thank you!

Contractor from Washington

Nov 30, 2023 10:30 pm

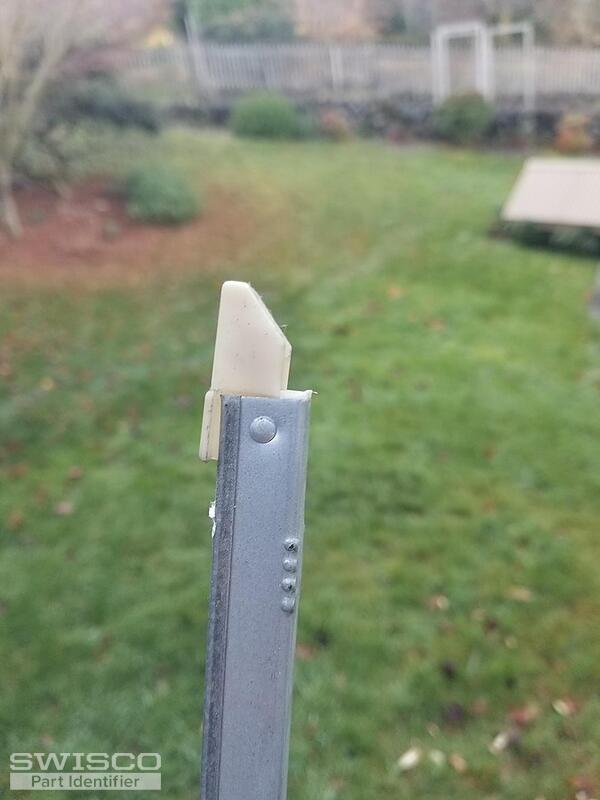

Here are photos of each end as well as an overall. The overall length is 40" from tip of plastic to tip of plastic.

Thanks,
Mark

3 user uploaded images

Casey from SWISCO

Dec 1, 2023 8:10 am

With this combination of attachments, you could have either the S380-39 or S385-39 channel balance. You’ll need to measure as shown below. Keep in mind that the length should only include the metal channel and not the end fittings. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

The S385-39 offers 3850 strength options to support a window sash between 30-35 pounds. If you need the S380-39, just let us know since our stock options only go up to 3840 at this time. Thank you.

Comparison of the S380 and S385 balance shoes.

Contractor from Washington

Dec 2, 2023 1:02 pm

Hello,

Thanks for the information. We will need two of the S385-39 lifts, our metal channel measures 39" long and we have the 1 3/32 end.

Thanks you,
Mark

Casey from SWISCO

Dec 4, 2023 8:44 am

Great, then you are welcome to purchase the S385-39 channel balance with 3850 strength options directly on our website. Just let us know if you have any other questions.

Contractor from Washington

Dec 4, 2023 10:41 pm

Thanks for your help, I've ordered them.

Best regards,
Mark
